Product Details:
|
| Power: | 160kw | Flow Rate: | 380 L/min |
|---|---|---|---|
| Pressure: | 35mpa | Industry Standards: | JB/T8728,JB/T7039,JB/T7042,JB/T7044 |
| Range Of Rotational Speed: | 0~2500r/min | Warranty: | 1 Year |
| Motive Force: | Electromotor | Medium: | Hydraulic Oil |
| National Standards: | GB/T8104,GB/T8105,GB/T8106,GB/T7936,GB/T 15622 | Poduct Name: | Pump Truck Hydraulic Valve Testing Machine Patented Product |
| Highlight: | 90kw Hydraulic Valve Testing Machine,Truck Hydraulic Valve Testing Machine,hydraulic pump testing machine YST380 |
||

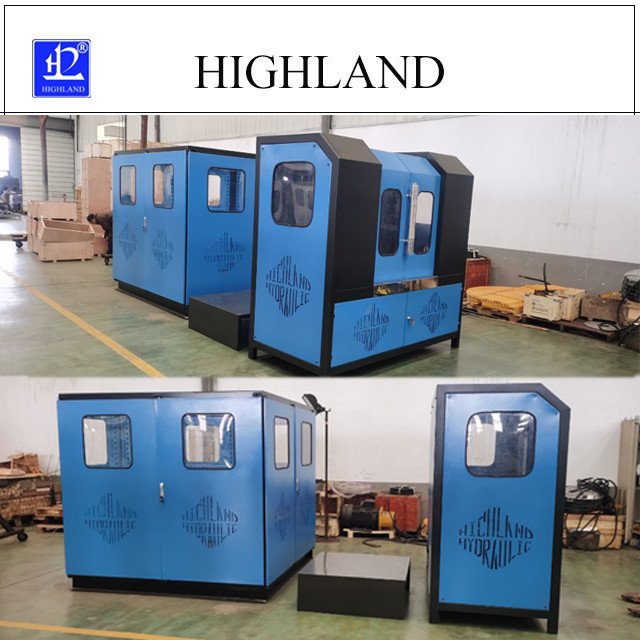

Pump truck hydraulic valve testing machine patented product
Hydraulic Valve Testing Machine Quick Detail
The company specializes in concrete walking machinery: concrete pump trucks, plunger pumps, pavement machines, mixer trucks and other hydraulic pumps, motors, and reducers. Our company has accumulated rich experience in the hydraulic test table to maintain the principles of leading service leadership and stable quality. The company's service purpose of "service first, integrity -based", continuously improve the technical level to meet the needs of users, provide users with high high levels of high, and provide users with high high levels of high levels, provide users with high high levels of high, and provide users with high levels of high levels. Quality, rapid and efficient hydraulic technology services.
Hydraulic Valve Testing Machine Description
The Division has the most advanced test desk in China. Each agricultural machine hydraulic pump is tested strictly, and it is overloaded to meet customers' needs for high -quality products. Similar products, our lowest price, the strongest performance, free technical support, timely guarantee after -sales, welcome to consult and buy, look forward to cooperation with you !!!
Technical parameter
| Hydraulic Valve Testing Machine Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Hydraulic Valve Testing Machine Applications
Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields.
Hydraulic Valve Testing Machine Notices
HIGHLAND hydraulic pump Co., Ltd. is a professional enterprise with supporting services and sales. Since its establishment, it has positioned the principles of high -end quality, service first, and reasonable price. Hydraulic problem, failure diagnosis and free consultation services. Acting sales products have a high visibility and stable quality. Customers are supporting applications in industries such as mixing transport vehicles, underground shovel, grain combined harvesting machines, ship machinery, concrete pump trucks, coal mine machinery, road pressure machines, pavement machines, port machinery, oilfield machinery, rotation rig and other industries.
FAQ of agricultural hydraulic pumps:
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment. Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
A: We are a manufacturer with own plant and 20 years experiences, manufacturing agricultural hydraulic pumps motors.
Tag: Hydraulic Valve Testing Machine,universal hydraulic test stand,air force hydraulic test stand
