Product Details:
|
| Power: | 132kw | Pressure: | 35mpa |
|---|---|---|---|
| Flow Rate: | 380 L/min | Industry Standards: | JB/T8728,JB/T7039,JB/T7042,JB/T7044 |
| Warranty: | 1 Year | Motive Force: | Electromotor |
| Medium: | Hydraulic Oil | Poduct Name: | Excavator Hydraulic Valve Testing Machine Is Highly Integrated |
| Highlight: | Excavator Hydraulic Valve Testing Machine,CE Hydraulic Valve Testing Machine,Hydraulic Test Stands Highly Integrated |
||

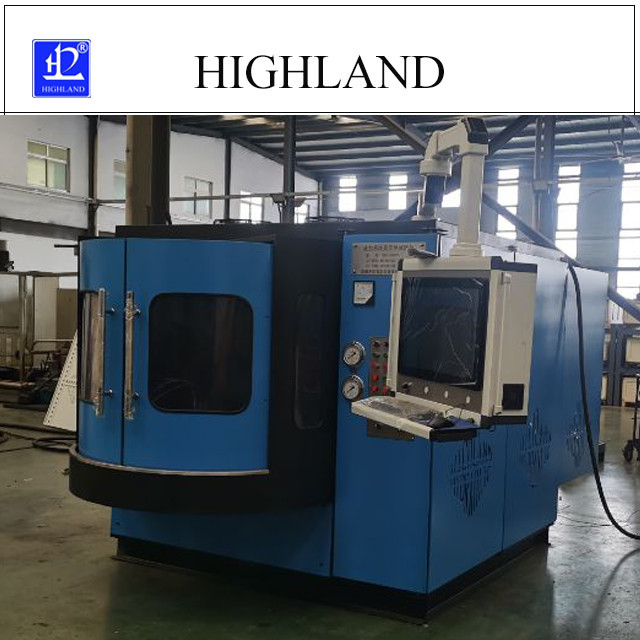

Excavator hydraulic valve testing machine is highly integrated
Hydraulic Valve Testing Machine product introduction
The company has the most advanced test desk in China. Each agricultural machinery hydraulic pump is tested strictly, and it is overloaded to meet customers' needs for high -quality products. Similar products, our lowest price, the strongest performance, free technical support, timely guarantee after -sales, welcome to consult and buy, look forward to cooperation with you !!!
Hydraulic Valve Testing Machine based information
The company has transformed from a single hydraulic pump maintenance company to a comprehensive technical entity. Today, Hyerard Hydraulic employees pursue the "progressive and rigorous unity" policy, continuously develop and innovate, with technology as the core, depending on quality as life, and user as God, and to provide you with the highest cost -effective hydraulic products, high -quality hydraulic systems, high -quality hydraulic systems Design plan and meticulous after -sales service.
Technical parameter
| Hydraulic Valve Testing Machine Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Applicable area:
Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields.
Company service R & D design manufacturer
Tailor-made exclusive products, express delivery of 20-45 days; covers an area of 10,000 square meters, and the annual product value is 55 million yuan. 70 % of technical personnel for more than 10 years, exquisite skills;
FAQ 1 of agricultural hydraulic pumps:
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment. Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
A: We are a manufacturer with own plant and 20 years experiences, manufacturing agricultural hydraulic pumps motors.
Tag: Hydraulic Valve Testing Machine,hydraulic pump test stand,portable hydraulic test stand
