Product Details:
|
| Product Model: | PV21 Hydraulic Pumps For Truck Mixer | Displacement: | 51.6 Ml/r PV21 |
|---|---|---|---|
| Structure: | Axial Piston Structure | Drive Mode: | Hydraulic Drive |
| Material: | Cast Iron | Loading Mode: | Manual Loading |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Function: | Hydraulic System Components | Package: | Plywood Case |
| Highlight: | high pressure mixer hydraulic pump,35mpa mixer hydraulic pump,cast iron mixer hydraulic pump |
||

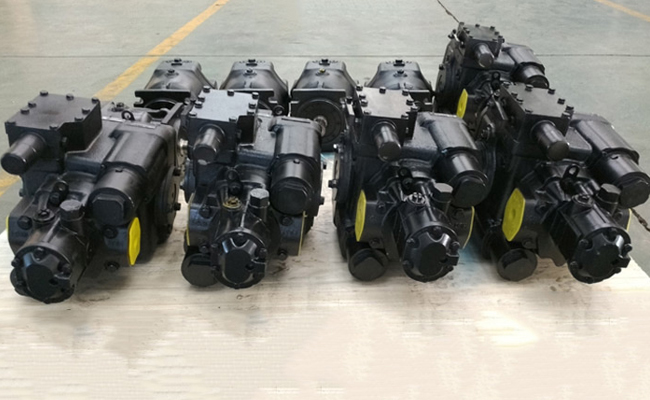

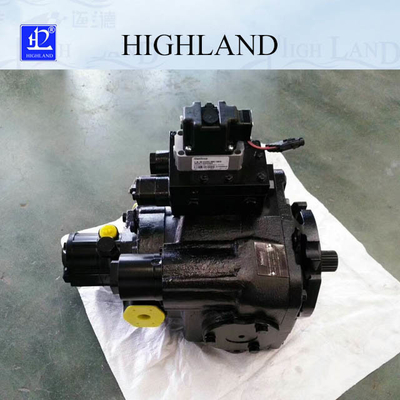

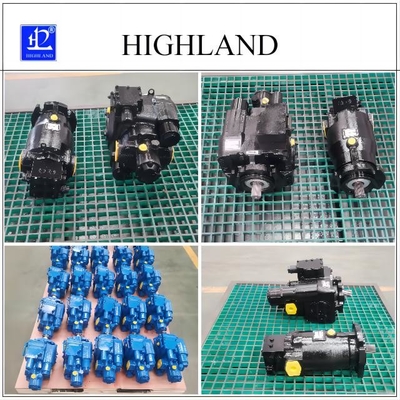

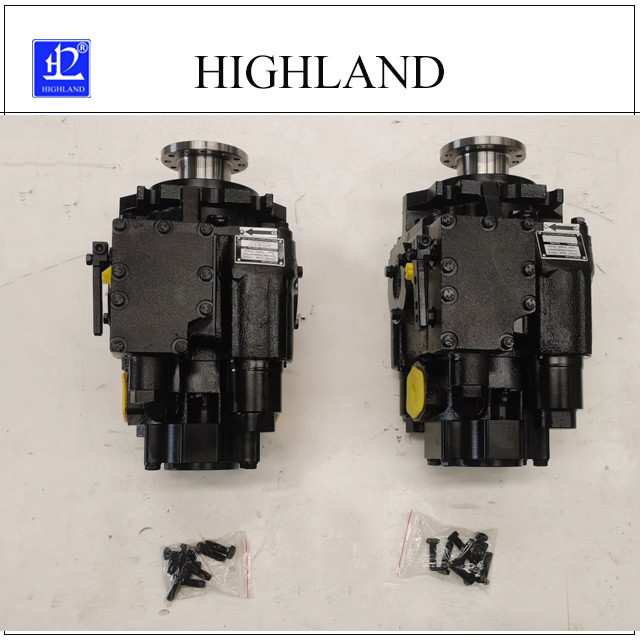

Highland PV21 hydraulic pumps high pressure 35Mpa for truck mixer
Hydraulic pumps for truck mixer product introduction:
The high pressure hydraulic pump of truck mixer consist of closed hydraulic transmission system. The engine power in truck mixer is transferred to high pressure hydraulic pump by the transmission shaft, and the high pressure hydraulic pump transmits the hydraulic energy to the hydraulic motor, which drives the reducer to drive the mixing tank, so as to realize the function of loading, mixing and unloading.
PV21 high pressure hydraulic pump based information:
Model: PV21
Displacement: 51.6ml/r
Material: Cast iron
Rotation direction: Left / Right according to customer request
Shaft teeth: 21 Teeth, 23 Teeth, according to customer request
Control mode: manual mechanical servo or electric proportional control according to customer choice.
PV21 hydraulic pumps high pressure 35Mpa technical parameters:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
MF series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Company service of hydraulic pumps for truck mixer:
1.One-stop hydraulic pump service for all the top truck mixer brands .
2.We have more than 20 years of experience in the hydraulic pump industry and our superior manufacturing process meet all kinds of hydraulic pumps according to OEM standards.
3. We have implemented the highest quality control system possible to ensure the stability and quality of our hydraulic pumps for truck mixer.
4.Our sales team is experienced and trained to understand your request and help you find the best solution for your needs.
FAQ for Highland hydraulic pumps:
Q1: Could we place a sample order of mixer hydraulic pump?
A: Yes, welcome sample order to test and check quality.
Q2: Do you offer guarantee for hydraulic pumps for truck mixer?
A: Each pump will be tested before shipping. Warranty 12 months after shipment for complete assembly.
Q3: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment. Small order/sample order: Full advance payment.
Q4: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic pump. We have 20 years experience in hydraulic industry for oversea and domestic markets.
