Product Details:
|
| Product Model: | PV20 Hydraulic Pumps | Displacement: | 33.3ml/r PV20 |
|---|---|---|---|
| Type: | Hydraulic Components | Category: | Closed Circuit Hydraulic Pump |
| Material: | Cast Iron | Usage: | Cement Mixer Hydraulic Pumps |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Function: | Hydraulic System Components | Package: | Plywood Case |
| Highlight: | pv20 cement mixer hydraulic pump,closed circuit cement mixer hydraulic pump,piston concrete mixer hydraulic pump |
||

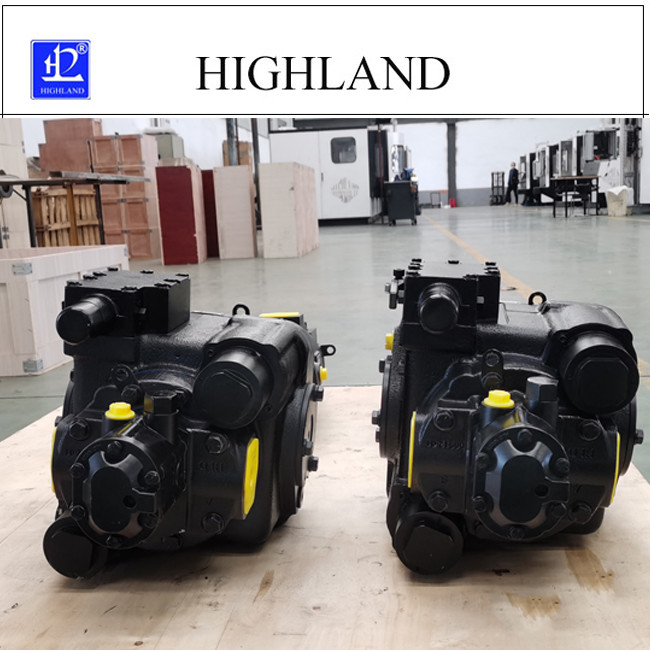

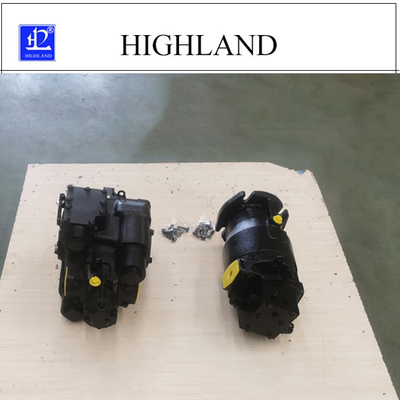

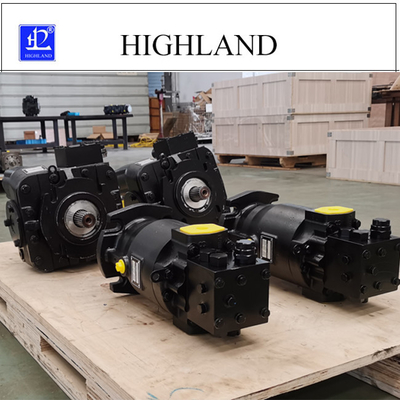

Highland PV20 Cement Mixer Hydraulic Pumps Closed Circuit Piston Pumps
Cement mixer hydraulic pump advantages:
PV20 Cement Mixer hydraulic pump performance and characteristics:
1. High efficiency, durable, robust design meets the demands of harsh work conditions for applications in mixer truck.
2. Cement mixer hydraulic pumps has swash plate structure.
3. Be Suitable for closed circuit system of cement mixer hydraulic pump.
4. Cement mixer hydraulic pumps have manual servo and hydraulic variable control mode.
5. Cement mixer hydraulic pumps are variable displacement pumps with a charging oil pump.
Cement mixer hydraulic pump technical parameters:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 51 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
PV series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
FAQ of PV20 hydraulic pumps:
Q1: Are you trading company or manufacturer ?
A: We are a manufacturer with own plant covering an area of 10,000 square meters. .
Q2: How long is your delivery time?
A: Generally 2 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Could you accept sample order?
A: Yes, we accept sample order for customer to test pump quality.
Q4: How long for your warranty time?
A: 1 Year warranty, each pump will be tested by our hydraulic test bench before shipping.
Q5: What is your payment term ?
A: Sample order or small value, payment 100% in advance. Big value order 40% T/T in advance, rest paid before shipment.
