Product Details:
|
| Product Model: | PV22 Model | Max Displacement: | 69.8ml/r Displacement |
|---|---|---|---|
| Type: | Hydraulic Components | Structure: | Hydraulic Axial Piston Pump |
| Material: | Cast Iron | Color: | Black Or Custom Made |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Function: | Concrete Mixer Truck | Package: | Plywood Case |
| Highlight: | 69.8ml/r displacement concrete mixer hydraulic pump,axial piston concrete mixer hydraulic pump,highland pv22 axial piston pump |
||

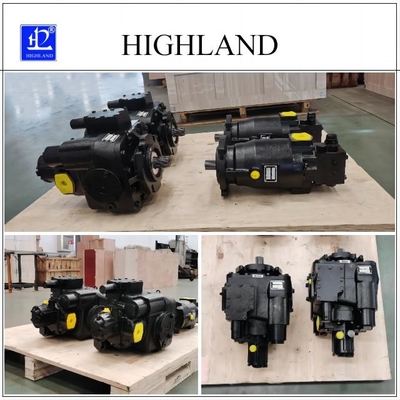

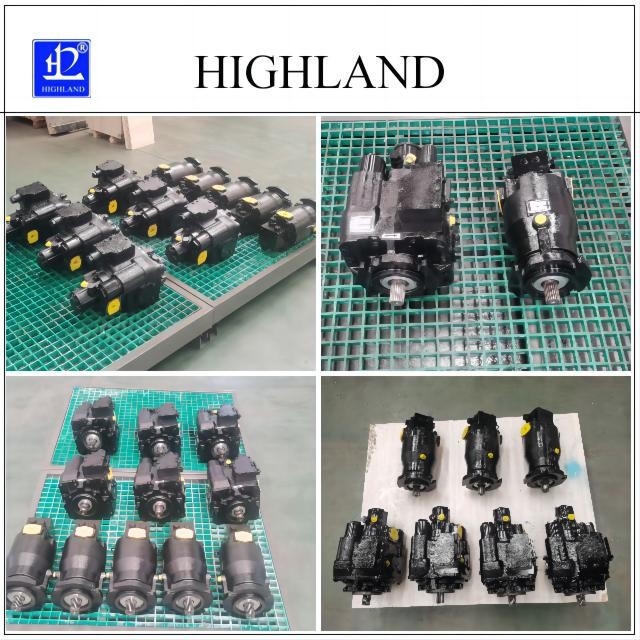

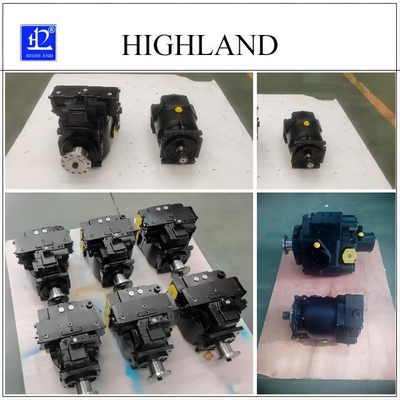

Highland PV22 69.8ml/r Displacement Concrete Mixer Axial Piston Pump
Axial piston pump main function:
Mixer hydraulic pumps i.e. hydraulic axial piston pumps change the angle of piston slide to change the pump displacement and change the tendency of hydraulic pump plunger slide plate to change the flow to achieve positive and reverse, and then change the speed of the mixer tank by adjusting the hydraulic motor throttle.
PV22 axial piston pump performance and characteristics:
1. High efficiency, high pressure, big displacement design meets the demands of harsh work conditions for mixer truck.
2. PV22 hydraulic piston pump has swash plate structure.
3. PV22 hydraulic pump be suitable for closed-loop circuit system of mixer truck.
4. Hydraulic piston pumps have manual servo and hydraulic variable control mode.
5. Mixer hydraulic pumps are variable displacement pumps with a charging oil pump.
Concrete mixer axial piston pump technical parameters:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
PV series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Mixer piston pump advantages:
1. High working pressure: due to easy processing of plunger and cylinder hole, dimensional accuracy and surface quality can meet high requirements, so high precision, small oil leakage, high volume efficiency, high working pressure can be achieved.
2. Large flow range.
3. change the stroke of the plunger can change the flow, easy to make a variety of variable type.
FAQ of axial piston pumps:
Q1: Are you trading company or manufacturer ?
A: We are a manufacturer with own plant covering an area of 10,000 square meters. .
Q2: How long is your delivery time?
A: Generally 2 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Could you accept sample order?
A: Yes, we accept sample order for customer to test pump quality.
Q4: How long for your warranty time?
A: 1 Year warranty, each pump will be tested by our hydraulic test bench before shipping.
Q5: What is your payment term ?
A: Sample order or small value, payment 100% in advance. Big value order 40% T/T in advance, rest paid before shipment.
Tags: axial piston pump, mixer piston pump, PV22 piston pump
