Product Details:
|
| Product Model: | PV23 | Displacement: | 89.0 Ml/r |
|---|---|---|---|
| Type: | Hydraulic Components | Drive Mode: | Hydraulic Drive |
| Material: | Cast Iron | Loading Mode: | Manual Loading |
| Medium: | Hydraulic Oil | Rotation Direction: | Clockwise Direction Or Counterclockwise Direction |
| Product Name: | PV23 Hydraulic Piston Pump Cement Mixer Truck Hydraulic Pump | Usage: | Cement Mixer Truck Hydraulic Pump |
| Highlight: | Cement Mixer Hydraulic Pump 89.0 Ml/R,Cement Mixer Hydraulic Pump PV23,Cement Mixer Truck Hydraulic Pump |
||

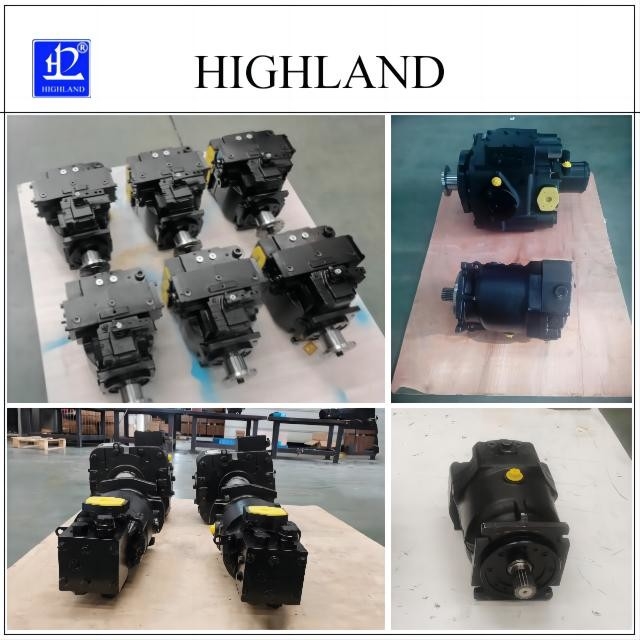

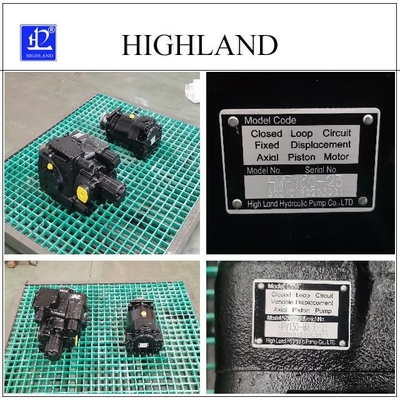

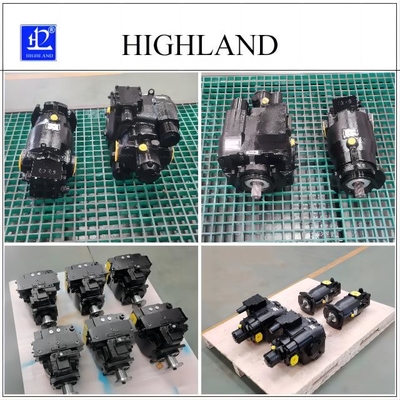

PV23 Hydraulic Piston Pump Cement Mixer Truck Hydraulic Pump
Cement mixer hydraulic pump product introduction:
The hydraulic pump and hydraulic motor of the transit mixer form closed hydraulic transmission system. The engine power in cement mixer is transferred to the hydraulic pump by the transmission shaft, and the hydraulic pump transmits the hydraulic energy to the hydraulic motor, which drives the reducer to drive the mixing tank, so as to realize the function of loading, mixing and unloading.
PV23 hydraulic piston pump based information:
Model: PV23
Displacement: 89.0ml/r
Material: Cast iron
Rotation direction: Left / Right according to customer request
Shaft teeth: 23 Teeth, according to customer request
Control mode: manual mechanical servo or electric proportional control according to customer choice.
Cement mixer hydraulic pump technical parameters:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
PV series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Company service of mixer truck hydraulic pump:
1.One-stop hydraulic pump service for all the top transit mixer truck brands .
2.We have more than 20 years of experience in the hydraulic pump industry and our superior manufacturing process meet all kinds of hydraulic pumps according to OEM standards.
3. We have implemented the highest quality control system possible to ensure the stability and quality of our mixer piston pumps.
4.Our sales team is experienced and trained to understand your request and help you find the best solution for your needs.
FAQ of mixer truck hydraulic pump:
Q1: Could we place a sample order of mixer truck hydraulic pump?
A: Yes, welcome sample order to test and check quality.
Q2: Do you offer guarantee for mixer hydraulic pump?
A: Each pump will be tested before shipping. Warranty: 1 year.
Q3: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment. Small order/sample order: Full advance payment.
Q4: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic pump. We have 20 years experience in hydraulic industry for oversea and domestic markets.
Q5: How do you ship the goods and how long does it take to arrive?
A: By sea or by air. Ship by air express, it takes 3-5 days to arrive. ship by sea shipping, it depend destination port.
