Product Details:
|
| Product Name: | PV20 Pump For Concrete Mixer Truck | Max Displacement: | 33.3ml/r PV20 |
|---|---|---|---|
| Type: | Hydraulic Power Components | Max Pressure: | 420 Bar Transient Pressure |
| Material: | Cast Iron | Color: | Black, Blue Or According To Customer Request |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Function: | Hydraulic System Components | Package: | Plywood Case |
| Highlight: | PV20 Series Hydraulic Oil Pump,PV20 Hydraulic Piston Oil Pump,33.3ml/r Hydraulic Piston Pump |
||

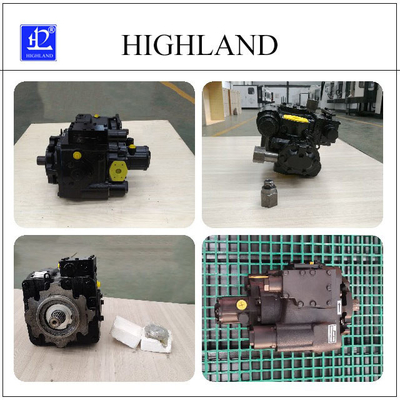

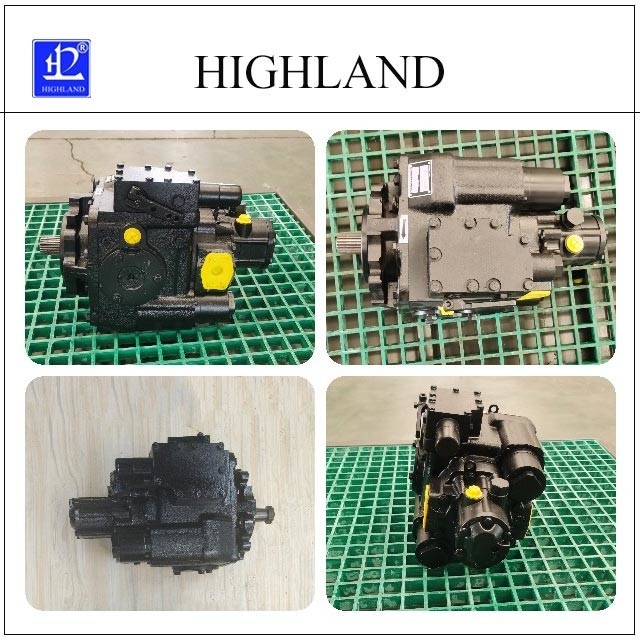

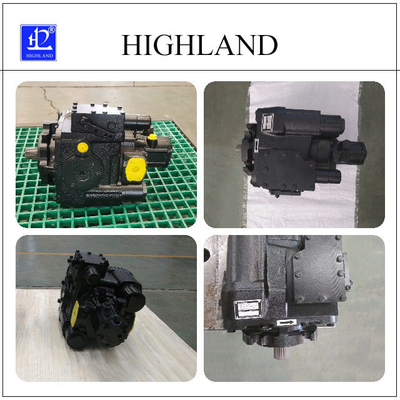

PV20 Series High Pressure Hydraulic Piston Oil Pump For Concrete Mixer Truck
Hydraulic piston oil pump based introduction:
The function of hydraulic piston oil pump is to convert the mechanical energy of power machine into the pressure energy of liquid for concrete mixer truck. The output flow can be adjusted according to need is called variable displacement hydraulic pump, the flow can not be adjusted is called fixed displacement hydraulic pump. Our concrete mixer truck hydraulic pump is high pressure hydraulic piston oil pump.
High pressure hydraulic piston oil pump performance:
Concrete mixer truck hydraulic oil pump technical specifications:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
MF series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Highland service for concrete mixer truck hydraulic pump:
Quick response within 24 hours.
Provide technical guidance.
Help customer solve hydraulic confusion.
Excellent after-sale service.
100% factory testing before shipment.
Preferential factory price, short delivery time.
FAQ for high pressure hydraulic oil pumps:
1. Are you a manufacturer or Trader ?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
2. What is your payment term ?
We accept T/T, Western Union etc.
3. How long is the validity of quotation ?
Generally, our price is valid within 7 working days from the date of quotation.The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market.
4. What is your delivery time ?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time depend on the order quantity.
