Product Details:
|
| Product Model: | PV23 Piston Hydraulic Pumps | Displacement: | 89.0 Ml/r PV23/089 |
|---|---|---|---|
| Type: | Hydraulic Power Components | Drive Mode: | Hydraulic Drive |
| Material: | Cast Iron | Loading Mode: | Manual Loading |
| Medium: | Hydraulic Oil | Rotation Direction: | Clockwise Direction Or Counterclockwise Direction |
| Product Name: | Highland PV23 Axial Piston Hydraulic Pumps For Concrete Mixer | Usage: | Mixer Concrete Pump |
| Highlight: | 89.0 ml/r Hydraulic Piston Pump,PV23 Hydraulic Piston Pump,89.0 ml/r Displacement Hydraulic Pump |
||

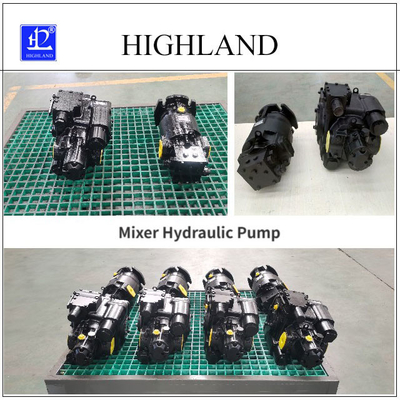

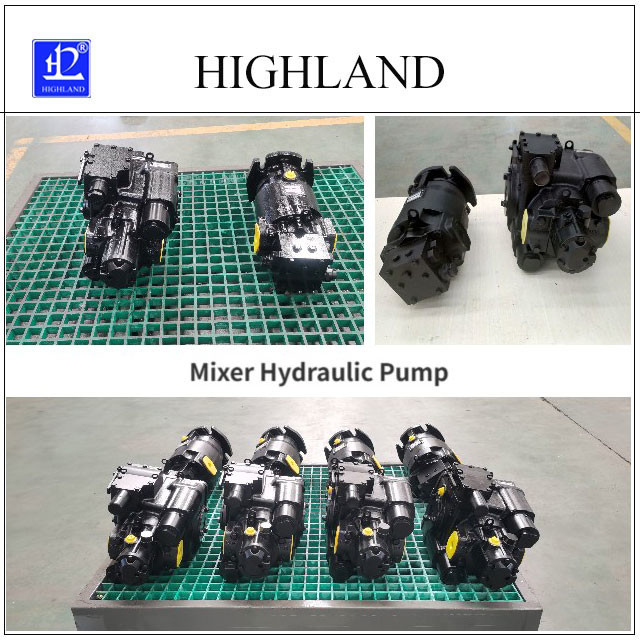

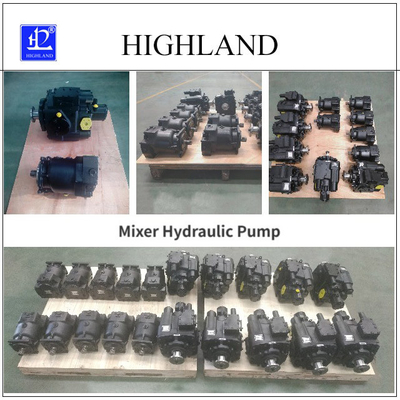

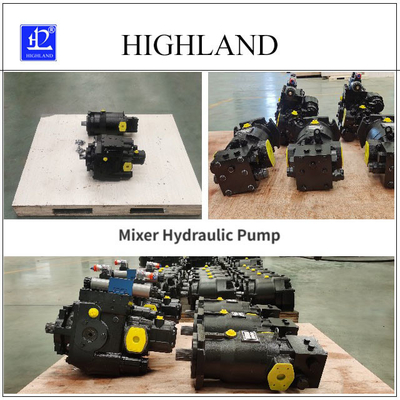

Sauer PV23 Pump for Mixer Concrete Pump PV23/089 Hydraulic Piston Pump
PV23 Hydraulic pumps for mixer concrete pump product introduction:
The PV23 axial piston hydraulic pumps and MF23 axial piston hydraulic motors for mixer concrete truck form closed hydraulic transmission system. The engine power in mixer concrete is transferred to the axial piston hydraulic pump by the transmission shaft, and the axial piston hydraulic pump transmits the hydraulic energy to axial piston hydraulic motor, which drives the reducer to drive the mixing tank, so as to realize the function of loading, mixing and unloading.
PV23/089 hydraulic piston pumps based information:
Model: PV23
Displacement: 89.0ml/r
Material: Cast iron
Rotation direction: Left / Right according to customer request
Shaft teeth: 23 Teeth, according to customer request
Control mode: manual mechanical servo or electric proportional control according to customer choice.
PV23/089 hydraulic piston pumps technical parameters:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
MF series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Company service of mixer concrete hydraulic pump:
1.One-stop hydraulic pump service for all the top transit mixer truck brands .
2.We have more than 20 years of experience in the hydraulic pump industry and our superior manufacturing process meet all kinds of hydraulic pumps according to OEM standards.
3. We have implemented the highest quality control system possible to ensure the stability and quality of our mixer piston pumps.
4.Our sales team is experienced and trained to understand your request and help you find the best solution for your needs.
FAQ of hydraulic pumps for mixer concrete:
Q1: Could we place a sample order of mixer hydraulic pump?
A: Yes, welcome sample order to test and check quality.
Q2: Do you offer guarantee for mixer hydraulic pump?
A: Each pump will be tested before shipping. Warranty: 1 year.
Q3: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment. Small order/sample order: Full advance payment.
Q4: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic pump. We have 20 years experience in hydraulic industry for oversea and domestic markets.
Q5: How do you ship the goods and how long does it take to arrive?
A: By sea or by air. Ship by air express, it takes 3-5 days to arrive. ship by sea shipping, it depend destination port.
Tags: PV23 pump, mixer concrete pump, PV23/089 hydraulic pump
