Product Details:
|
| Product Name: | PV22 Axial Flow Hydraulic Pumps | Displacement: | PV22 69.8ml/r Displacement |
|---|---|---|---|
| Type: | Hydraulic System Components | Max Pressure Transient: | 420 Bar Transient Pressure |
| Material: | Cast Iron | Color: | Black, Blue Or According To Customer Request |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Function: | Hydraulic System Components | Package: | Plywood Case |
| Highlight: | Mixer Truck axial flow piston pump,High Pressure axial flow piston pump,PV22 High Pressure pump |
||

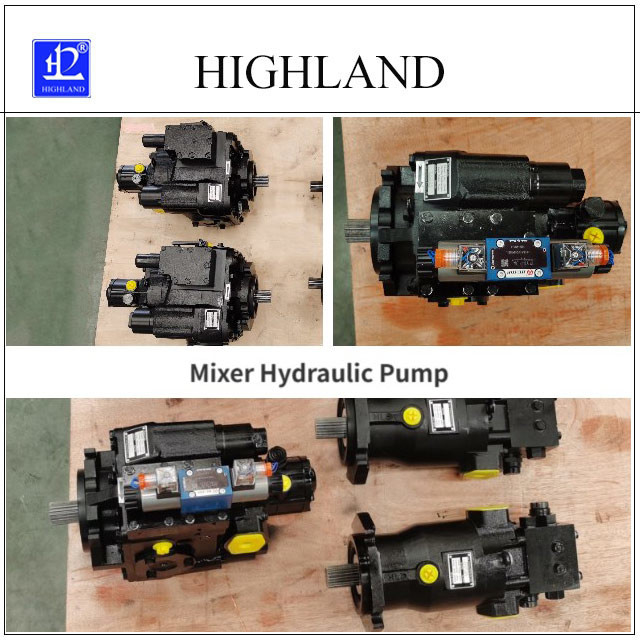

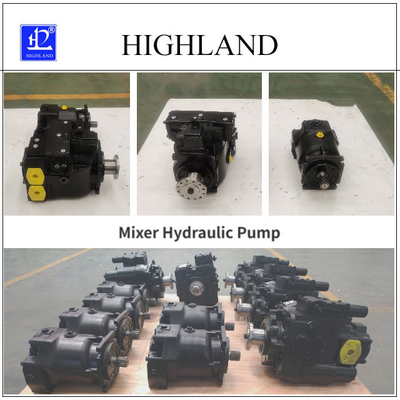

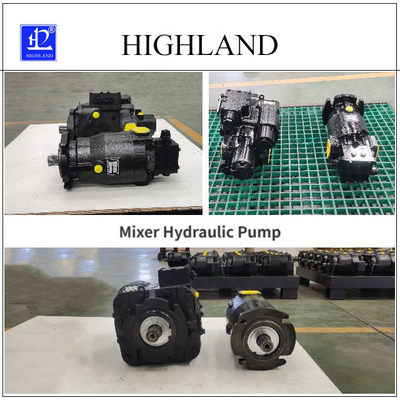

Highland High Pressure Pump PV22 Axial Flow Hydraulic Pump For Mixer Truck
Axial flow hydraulic pumps based introduction:
Our axial flow hydraulic pumps are variable displacement axial flow piston pumps with high pressure, high performance and high quality. Our axial flow hydraulic pumps are mainly used for construction machineries, such as mixer trucks, scrapers, ditchers and bulldozeres etc many machineries. they also can be used for agricultural machineries, such as harvesters, tractors etc.
PV22 hydraulic pumps performance:
PV22 hydraulic pumps technical specifications:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
MF series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Highland service for mixer hydraulic pump:
Quick response within 24 hours.
Provide technical guidance.
Help customer solve hydraulic confusion.
Excellent after-sale service.
100% factory testing before shipment.
Preferential factory price, short delivery time.
FAQ for mixer hydraulic pumps:
1. Are you a manufacturer or Trader ?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
2. What is your payment term ?
We accept T/T, Western Union etc.
3. How long is the validity of quotation ?
Generally, our price is valid within 7 working days from the date of quotation.The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market.
4. What is your delivery time ?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time depend on the order quantity.
Tags: hydraulic pump for mixer truck, PV22 axial flow hydraulic pump, high pressure pump
