Product Details:
|
| Product Model: | PV23 | Displacement: | 89.0ml/r |
|---|---|---|---|
| Type: | Hydraulic Components | Structure: | Axial Piston Pump |
| Material: | Cast Iron | Loading Mode: | Manual Loading Mode |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Function: | Hydraulic System Components | Package: | Plywood Case |
| Highlight: | Concrete Mixer Truck Hydraulic Plunger Pump,Concrete Mixer Truck Hydraulic Piston Pump,vPV23 Hydraulic Axial Piston Pump |
||

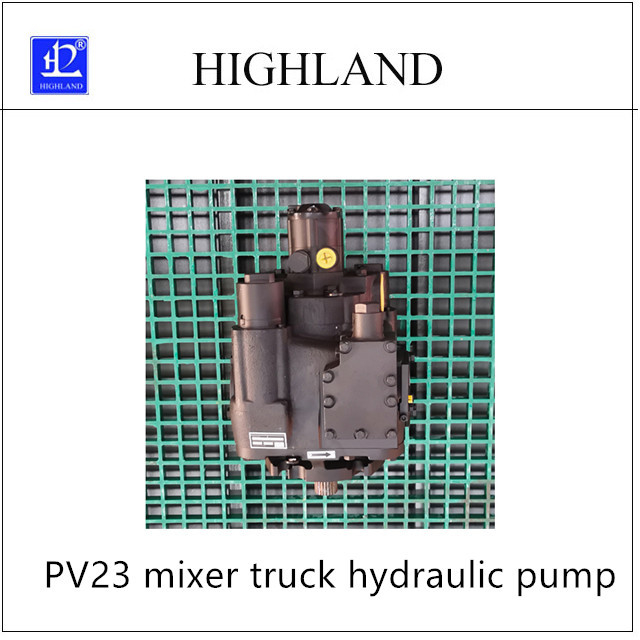

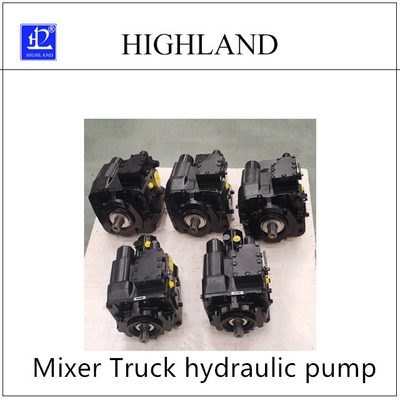

Highland Concrete Mixer Truck Hydraulic Piston Pump Hydraulic Plunger Pump
Concrete mixer truck hydraulic piston pump based introduction:
The function of concrete mixer truck hydraulic piston pump is to convert the mechanical energy of power machine into the pressure energy of liquid. The output flow can be adjusted according to need is called variable displacement hydraulic piston pump, our mixer truck hydraulic piston pump is variable displacement hydraulic piston pump.
Concrete Mixer hydraulic plunger pump performance:
Concrete mixer truck hydraulic piston pump technical parameters:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
PV series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Highland service of concrete mixer truck hydraulic plunger pump:
1. One-stop hydraulic plunger pump service for all the top mixer truck manufacturer.
2. We have more than 20 years' experiences in hydraulic pump industry and our superior manufacturing process meet customers request of all
kinds of hydraulic pumps according to OEM standards.
3. We have implemented the highest quality control system possible to ensure the stability and quality of our concrete mixer truck hydraulic plunger pumps.
4. Our sales team is experienced and trained to understand your request and help you find the best solution for your needs.
FAQ of concrete mixer hydraulic plunger pumps:
Q1: Are you trading company or manufacturer ?
A: We are a manufacturer with own plant covering an area of 10,000 square meters. .
Q2: How long is your delivery time?
A: Generally 2 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Could you accept sample order?
A: Yes, we accept sample order for customer to test pump quality.
Q4: How long for your warranty time?
A: 1 Year warranty, each hydraulic pump will be tested by our hydraulic test bench before shipping.
Q5: What is your payment term ?
A: Sample order or small value, payment 100% in advance. Big value order 40% T/T in advance, rest paid before shipment.
Tags: concrete mixer hydraulic pump, hydraulic plunger pump, PV23 hydraulic pump
