Product Details:
|
| Product Model: | PV23 Model | Max Displacement: | 89ml/r Displacement |
|---|---|---|---|
| Type: | Hydraulic Components | Structure: | Hydraulic Axial Piston Pump |
| Material: | Cast Iron | Color: | Black Or Custom Made |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Function: | Concrete Mixer Truck | Package: | Plywood Case |
| Highlight: | Concrete Mixer Hydraulic Piston Pump,Axial Flow Hydraulic Piston Pump,42Mpa Mixer Hydraulic Pump |
||

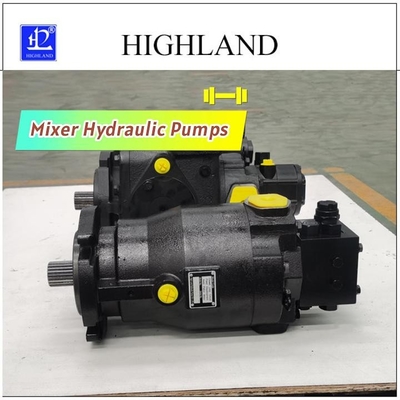

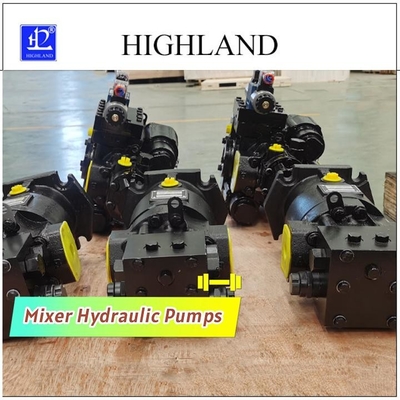

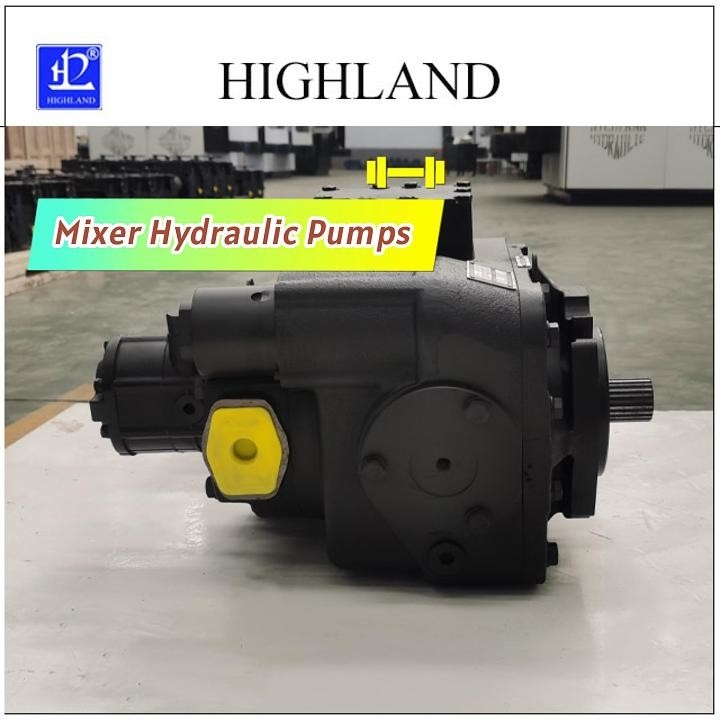

Factory Wholesale 42Mpa High Pressure Concrete Mixer Axial Flow Hydraulic Piston Pump
Concrete mixer hydraulic piston pump main function:
The hydraulic system of a concrete mixer consists of three main components: a hydraulic piston pump, a hydraulic piston motor and a reducer unit. The hydraulic pump converts the mechanical energy from the engine into hydraulic energy, which is then transmitted to the hydraulic motor. The hydraulic motor drives the reducer unit, which reduces the speed and increases the torque of the rotation. The reducer unit then rotates the tank, which mixes the concrete inside.
Higland hydraulic is professional manufacturer product high pressure 42Mpa concrete mixer axial flow hydraulic piston pumps with factory direct sale and wholesale price, high quality and high performance, welcome your inquiry.
Axial flow hydraulic piston pump performance and characteristics:
1. High efficiency, high pressure, big displacement design meets the demands of harsh work conditions for mixer truck.
2. Hydraulic piston pump has swash plate structure.
3. Hydraulic pump be suitable for closed-loop circuit system of mixer truck.
4. Hydraulic piston pumps have manual servo and hydraulic variable control mode.
5. Mixer hydraulic pumps are variable displacement pumps with a charging oil pump.
Concrete mixer axial piston pump technical parameters:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
PV series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
42Mpa high pressure piston pump advantages:
1. 42Mpa high working pressure: due to easy processing of plunger and cylinder hole, dimensional accuracy and surface quality can meet high requirements, so high precision, small oil leakage, high volume efficiency, high working pressure can be achieved.
2. Large flow range.
3. Change the stroke of the plunger can change the flow, easy to make a variety of variable type.
FAQ of axial flow piston pumps:
Q1: Are you trading company or manufacturer ?
A: We are a manufacturer with own plant covering an area of 10,000 square meters. .
Q2: How long is your delivery time?
A: Generally 2 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Could you accept sample order?
A: Yes, we accept sample order for customer to test pump quality.
Q4: How long for your warranty time?
A: 1 Year warranty, each pump will be tested by our hydraulic test bench before shipping.
Q5: What is your payment term ?
A: Sample order or small value, payment 100% in advance. Big value order 40% T/T in advance, rest paid before shipment.
Tags: axial flow piston pump, 42Mpa hig pressure piston pump, concrete mixer piston pump
