Product Details:
|
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
|---|---|---|---|
| Material: | Cast Iron | Type: | Variable Displacement Closed Loop Piston Pump |
| Peak Pressure: | 42Mpa | Rated Pressure: | 35Mpa |
| Principle: | Hydraulic Transmission | Pressure: | High Pressure |
| Highlight: | Hydraulic Oil Mixer Hydraulic Pump,Mixer Truck Hydraulic Piston Pump |
||

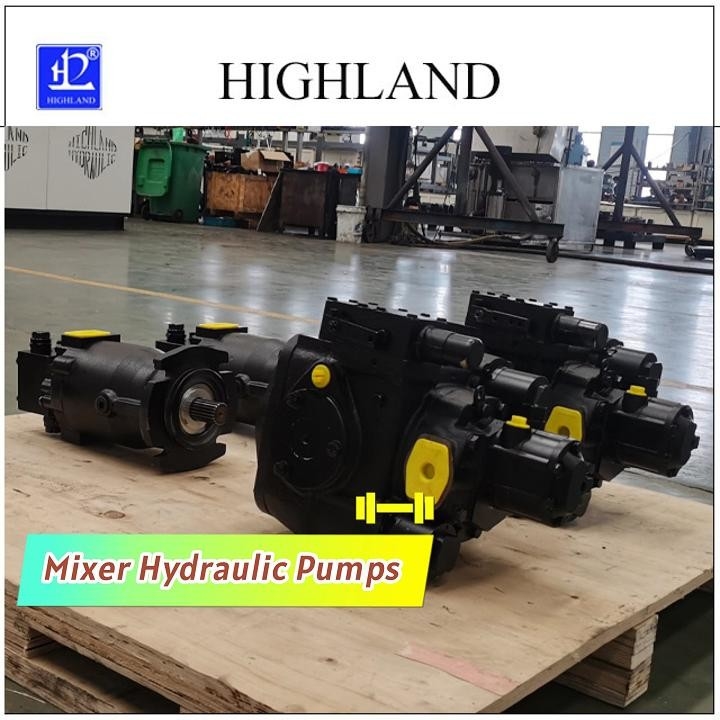

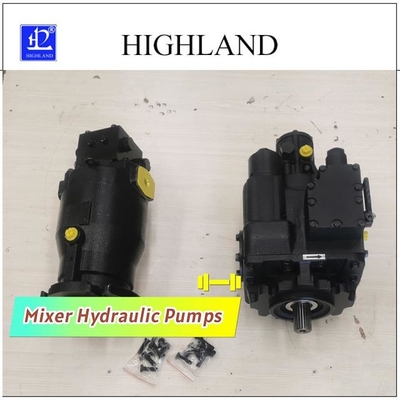

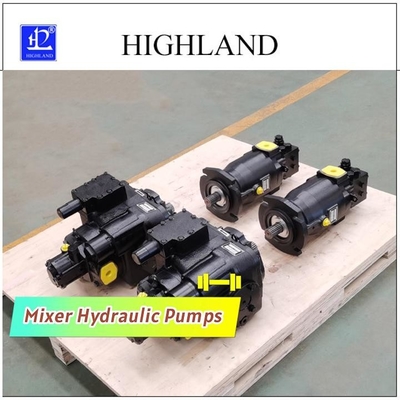

High Pressure Hydraulic Piston Pump For Construction Machinery Mixer Truck
Product Description:
Highland hydraulic pump of the mixer truck is a closed hydraulic transmission system composed of components that interact with each other. The engine power in the mixer is transmitted to the hydraulic pump through the transmission shaft. The force of the hydraulic pump then propels the hydraulic motor, which energizes the reducer to rotates the mixing tank. In turn, this produces the desired functions such as loading, mixing, and unloading.
Features:
The Mixer Truck Hydraulic Pumps have been designed to robustly meet the demands of harsh working conditions. It has an efficient swash plate structure, and is well suited to the closed loop circuit system of mixer hydraulic pumps. It can facilitate a manual servo and hydraulic variable control mode and, what's more, is variable displacement with an integrated charging oil pump.
Technical Parameters:
| PV hydraulic pump and MF hydraulic motor series | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 90.5 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight | PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
| MF series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Applications:
The mixer truck hydraulic pump motor hydraulic transmission system is an ideal choice due to its various features. It enjoys reliability, lightness, small size, and attractive appearance. In addition, it also has stable rotation, reliable performance, and simple operation. The long service life is another benefit of this system. It can be used to both mix concrete and to transport with agitating, both of which can ensure the quality of the concrete.
Support and Services:
Mixer Hydraulic Pump Technical Support and Service
We provide complete technical support and service for our Mixer Hydraulic Pump products. Our technical support team is available to answer your questions and assist with troubleshooting.
FAQ:
Q1: What is the brand name of the Mixer Hydraulic Pump?
A1: The brand name of the Mixer Hydraulic Pump is HIGHLAND.
Q2: What is the model number of the Mixer Hydraulic Pump?
A2: The model number of the Mixer Hydraulic Pump is PV23.
Q3: Where is the Mixer Hydraulic Pump made?
A3: The Mixer Hydraulic Pump is made in CHINA DEZHOU.
Q4: What kind of certifications does the Mixer Hydraulic Pump have?
A4: The Mixer Hydraulic Pump has PATENT AND ISO CERTIFICATE.
Q5: What is the minimum order quantity for the Mixer Hydraulic Pump?
A5: The minimum order quantity for the Mixer Hydraulic Pump is 5 PCS.
