Product Details:
|
| Principle: | Hydraulic Transmission | Warranty: | 1 Year |
|---|---|---|---|
| Rated Pressure: | 35Mpa | Peak Pressure: | 42Mpa |
| Pressure: | High Pressure | Speed: | 3200rpm |
| Material: | Cast Iron | Type: | Variable Displacement Closed Loop Piston Pump |
| Highlight: | 3200rpm Hydraulic Oil Pump,Mixer Truck Hydraulic Oil Pump |
||

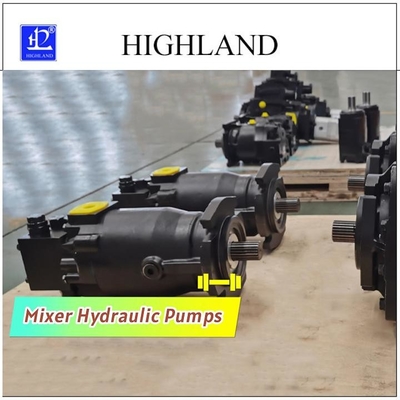

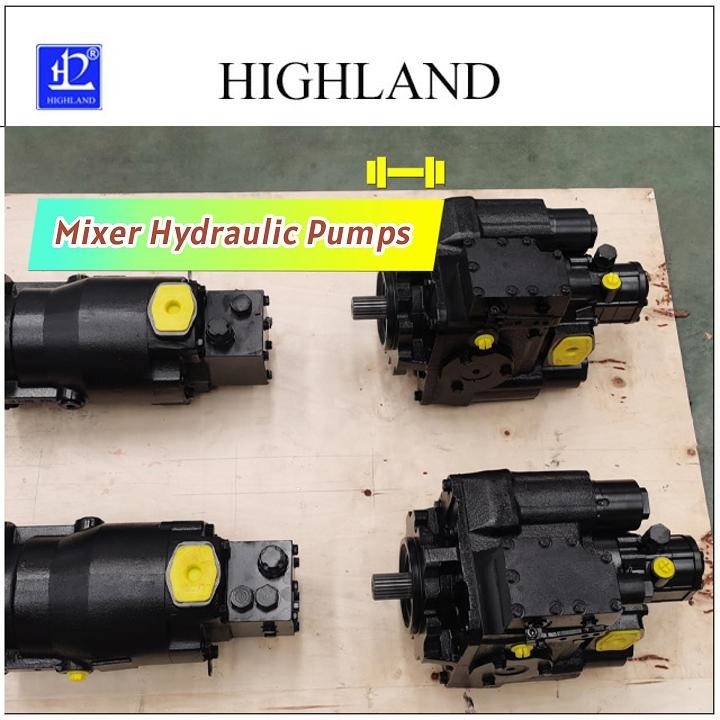

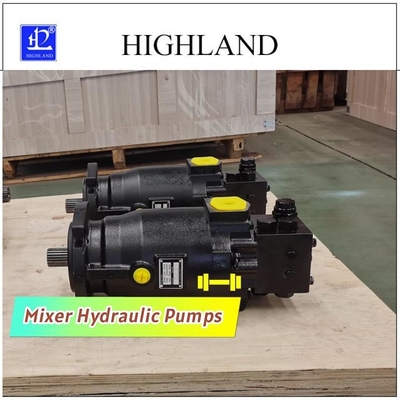

1 Year Warranty High Pressure Mixer Truck Hydraulic Oil Pump
Product Description:
Highland hydraulic pump of the mixer truck has a closed hydraulic transmission system. The engine's power is transferred to the hydraulic pump via the transmission shaft. Highland hydraulic pump then transmits hydraulic energy to the hydraulic motor, prompting the reducer to drive the mixing tank and allow for loading, mixing, and unloading.
The hydraulic motor generated by the hydraulic pump's energy is the determining factor in the mixer truck's efficiency. Hydraulic motor goes about driving the reducer, and the reducer is the component that turns the hydraulic motor's energy into the mix in the tank.
The mixer truck's performance is further enhanced by its ability to adjust the volume of oil in the hydraulic motor, as well as the speed of the reducer. By adjusting these components, the mixer truck can achieve smooth loading, mixing, and unloading.
Features:
High efficiency, durable, and robust design are the main elements of mixer truck hydraulic pumps. These hydraulic pumps are made with swash plate structure which meets the demands of harsh work conditions.
The closed-loop circuit system of these mixer hydraulic pumps makes sure that their performance is consistent and reliable. The manual servo and hydraulic variable control modes make these mixer truck hydraulic pump more flexible for a variety of purposes.
Mixer hydraulic pumps are variable displacement pumps with a charging oil pump. This feature allows hydraulic pumps to be used in different applications where specific hydraulic system pressure is needed.
Technical Parameters:
| PV hydraulic pump and MF hydraulic motor series | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 90.5 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight | PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
| MF series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Applications:
The mixer truck hydraulic pump motor hydraulic transmission system is a trust-worthy and relatively compact system with an attractive outlook. It has the advantages of steady revolution, dependable performance, easy administration, and long-term endurance. Furthermore, it guarantees the excellence of concrete, regardless of it being used for concrete mixing or transporting stirring.
Its features are characterized as being reliable, light, with a small volume, and good appearances. Moreover, it has faithful operation, straightforward manipulation, and a long length of service. All in all, it is an ideal gadget for concrete mixing and agitating transportation.
FAQ:
Q1: What is the brand name of this Mixer Hydraulic Pump?
A1: The brand name of this Mixer Hydraulic Pump is HIGHLAND.
Q2: What is the model number of this Mixer Hydraulic Pump?
A2: The model number of this Mixer Hydraulic Pump is PV23.
Q3: Where is this Mixer Hydraulic Pump manufactured?
A3: This Mixer Hydraulic Pump is manufactured in Dezhou, China.
Q4: What certification does this Mixer Hydraulic Pump have?
A4: This Mixer Hydraulic Pump has both patent and ISO certificate.
Q5: What is the minimum order quantity for this Mixer Hydraulic Pump?
A5: The minimum order quantity for this Mixer Hydraulic Pump is 5 pieces.
