Product Details:
|
| Principle: | Hydraulic Transmission | Rated Pressure: | 35Mpa |
|---|---|---|---|
| Speed: | 3200rpm | Peak Pressure: | 42Mpa |
| Type: | Variable Displacement Closed Loop Piston Pump | Power: | Hydraulic |
| Material: | Cast Iron | Warranty: | 1 Year |
| Highlight: | Hydraulic Transmission Mixer Truck Pump,42Mpa Mixer Truck Hydraulic Pump |
||

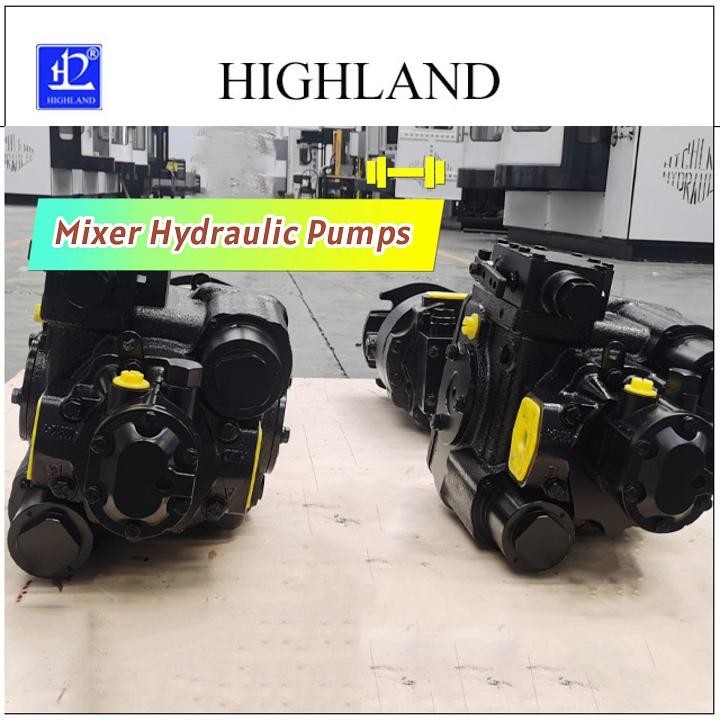

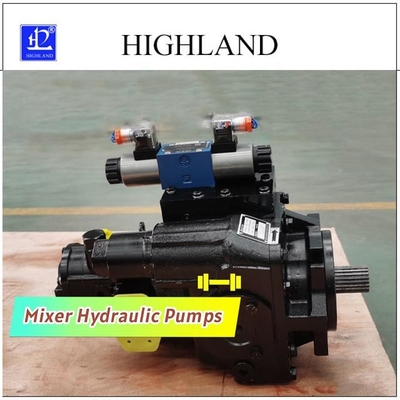

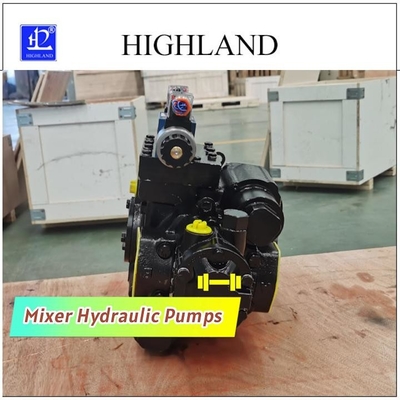

42Mpa Hydraulic Transmission Mixer Truck Hydraulic Pump With 1 Year Warranty
Highland hydraulic pump of the mixer truck consists of a closed hydraulic transmission system. The engine power in mixer is transferred to the hydraulic pump via the transmission shaft, and the hydraulic pump transmits the hydraulic energy to the hydraulic motor, which then drives the reducer and, subsequently, the mixing tank, thus enabling the processes of loading, mixing and unloading. Highland Hydraulic is a professional manufacturer making hydraulic pumps hydraulic motors, which are mainly used for concrete mixer truck.
Features:
Highland Mixer truck hydraulic pumps are known for their high efficiency and robust design that makes them suitable for harsh work condition applications. They have a swash plate structure, closed-loop circuit system and two control modes: manual servo and hydraulic variable. Besides, these pumps are equipped with displacement pumps and charging oil pump, making them have a variety of applications.
Technical Parameters:
| PV hydraulic pump and MF hydraulic motor series | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 90.5 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight | PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
| MF series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Highland Mixer truck hydraulic pump motor hydraulic transmission system is renowned for its reliability, lightness, small volume and beautiful exterior. Additionally, it has a range of other advantages such as stable rotation, dependable performance, effortless operation and long service life.
No matter whether it is used for concrete mixing or agitating transportation, the system is sure to ensure the quality of the concrete.
Support and Services:
We provide technical support and service for Mixer Hydraulic Pump. Our technical team can provide you with support in the form of troubleshooting and maintenance. We also provide kinds of hydraulic pumps should you need them. If you have any questions or concerns, please don't hesitate to contact us.
FAQ:
A: The brand name of the Mixer Hydraulic Pump is HIGHLAND.
A: The model number is PV23.
A: The Mixer Hydraulic Pump is manufactured in Dezhou, China.
A: The Mixer Hydraulic Pump has a PATENT and ISO CERTIFICATE.
A: The minimum order quantity is 5 PCS.
