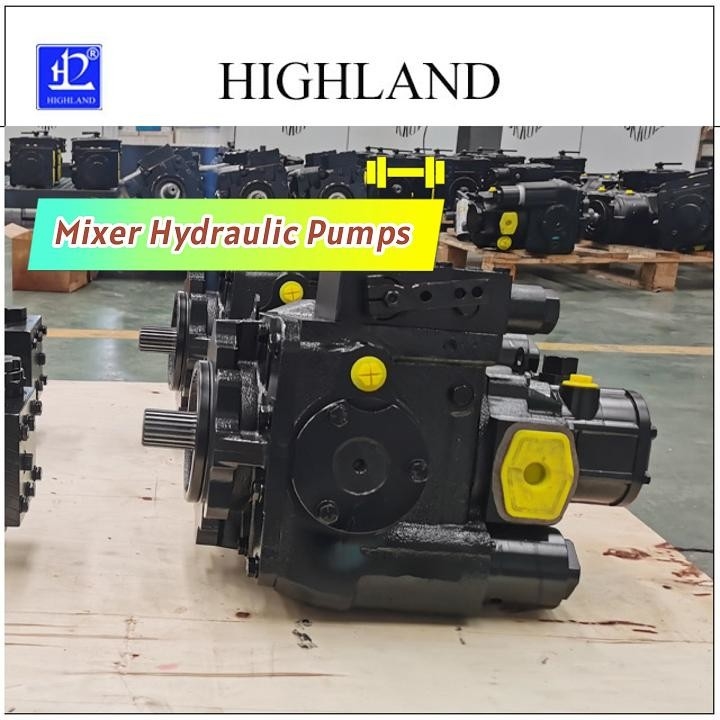

Variable Displacement Closed Loop Hydraulic Pump For Concrete Mixer

Variable Displacement Closed Loop Hydraulic Pump For Concrete Mixer
Variable Displacement Closed Loop Hydraulic Pump For Concrete Mixer
Variable Displacement Closed Loop Hydraulic Pump For Concrete Mixer Variable Displacement Closed Loop Hydraulic Pump For Concrete Mixer

Large Image :  Variable Displacement Closed Loop Hydraulic Pump For Concrete Mixer

Product Details:
Place of Origin: CHINA DEZHOU
Brand Name: HIGHLAND
Certification: PATENT AND ISO CERTIFICATE
Model Number: PV23
Payment & Shipping Terms:
Minimum Order Quantity: 5 PCS
Price: NEGOTIATED PRICE
Packaging Details: PLYWOOD CASE
Delivery Time: ACCORDING TO CUSTOMER'S QUANTITY
Payment Terms: T/T
Supply Ability: 300 SETS/MONTH

Variable Displacement Closed Loop Hydraulic Pump For Concrete Mixer

Description
Pressure: High Pressure Type: Variable Displacement Closed Loop Piston Pump
Rated Pressure: 35Mpa Medium: Hydraulic Oil
Peak Pressure: 42Mpa Power: Hydraulic
Material: Cast Iron Warranty: 1 Year
Highlight:

Closed Loop Mixer Hydraulic Piston Pump

,

Concrete Mixer Closed Loop Hydraulic Pump

,

Variable Displacement Closed Loop Hydraulic Pump

Variable Displacement Closed Loop Hydraulic Pump for Concrete Mixer



Product Description:



The mixer truck's hydraulic pump is composed of an enclosed hydraulic system. After the power from the engine is transmitted to the hydraulic pump via the transmitting shaft, the pump then transmits the hydraulic energy to the hydraulic motor. This motor is then the driving force that activates the reducer, which propels the mixing tank to load, blend and unload. Highland is a professional manufacturer making hydraulic pumps motors for concrete mixer.



Features:



  1. Highland Mixer truck hydraulic pumps feature a high efficiency, durable, robust design that meets the demands of harsh work conditions.
  2. Highland mixer truck hydraulic pumps are characterized by a swash plate structure, which enables them to be suitable for closed-loop circuit system.
  3. Besides, It is worth noting that they offer two control modes including manual servo and hydraulic variable.
  4. Furthermore, as variable displacement pumps with a charging oil pump, they provide excellent performance for mixer truck.

 Variable Displacement Closed Loop Hydraulic Pump For Concrete Mixer 0



Technical Parameters:



PV hydraulic pump and MF hydraulic motor series 20 21 22 23
Displacement Max displacement ml/r 33.3 51.6 69.8 90.5
Speed Max continuous working speed
(Full load condition)
r/min 3500 3500 3200 3200
Rated speed r/min 2500
Min continuous working speed r/min 500
Pressure Rated working pressure Mpa 35
Max working pressure (transient) Mpa 42
Continuous working pressure Mpa 30
Allowable shell pressure (Absolute) Mpa Constant0.25, Peak value0.5
Torque Continuous output torque
(Under continuous working pressure)
Nm 162.3 252.3 342.6 432.9
Max output torque Nm 227 353 480 606
Power Continuous output power KW 45 79 107 139
Max power KW 62 95 114 150
Temperature Allowable shell temperature 80
Max working temperature of oil tank 70
Weight PV series hydraulic pump
hydraulic oil emptying
kg 45 53 63 78
MF series hydraulic motor
hydraulic oil emptying
kg 30 34 40 47



Variable Displacement Closed Loop Hydraulic Pump For Concrete Mixer 1

Applications:



The mixer truck's hydraulic pump motor hydraulic transmission system is reliable, light, and compact, with a beautiful aesthetic. It features steady rotation, consistent performance, simple operation, and a long service life, among other advantages. If used for mixing concrete or transporting slurry, it can guarantee the quality of the final product.



Support and Services:



We offer a wide range of technical support and services for our Mixer Truck Hydraulic Pump product. We can also provide guidance on product selection, operation and usage. Our customer service team is available to answer any questions you may have regarding our product and services.

We are dedicated to providing quality technical support and services for our Mixer Truck Hydraulic Pump product. Our team of experts is available to help you with any questions or concerns you may have. For more information, please contact us today.



FAQ:

Q1: What is the brand name of the Mixer Hydraulic Pump?

A1: The brand name of the Mixer Hydraulic Pump is HIGHLAND.

Q2: What is the model number of the Mixer Hydraulic Pump?

A2: The model number of the Mixer Hydraulic Pump is PV23.

Q3: Where is the Mixer Hydraulic Pump manufactured?

A3: The Mixer Hydraulic Pump is manufactured in Dezhou, China.

Q4: What certifications does the Mixer Hydraulic Pump have?

A4: The Mixer Hydraulic Pump has PATENT and ISO certification.

Q5: How many Mixer Hydraulic Pumps can be ordered at minimum?

A5: The minimum order quantity of the Mixer Hydraulic Pump is 5 pcs.



Variable Displacement Closed Loop Hydraulic Pump For Concrete Mixer 2
