Product Details:
|
| Product Name: | Highland High Efficiency High Pressure Piston Pump For Concrete Mixer Truck | Max Pressure Transient: | 42Mpa High Pressure |
|---|---|---|---|
| Type: | Hydraulic System Components | Category: | Variable Displacement Hydraulic Pump |
| Material: | Cast Iron | Color: | Black Or Blue Or According To Customers Request |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Function: | Concrete Mixer | Package: | Plywood Case |
| Highlight: | 42Mpa High Pressure Mixer Hydraulic Pump,High Pressure Mixer Hydraulic Piston Pump |
||
Highland High Efficiency High Pressure Piston Pump for Concrete Mixer Truck
High pressure piston pump usages:
1. Maximize performance, efficiency, and design
Our hydraulic pumps are perfect fit for your concrete mixer trucks. Also, it fits hundreds of applications.
2. Construction: Durable, robust design meets the demands of harsh work conditions for applications in construction machinery, such as mixer truck. forestry, and agriculture machines.
3. Wide range of displacements: Offering a range of pumps with 30-130 cm² per round. Our hydraulic pumps are flexible enough to fit all kinds of applications.
4. High pressure capability: keep high performance of working conditions at 420 Bar instantaneous high pressure situation.
5. Widely application: Concrete mixer, bulldozer, and combine harvesters and silage harvester etc construction and agricultural machinery.
Hydraulic piston pump performance and characteristics:
1. High efficiency, high pressure, big displacement design meets the demands of harsh work conditions for mixer truck.
2. Has swash plate structure.
3. Be suitable for closed-loop circuit system of mixer truck.
4. Manual servo and hydraulic variable control mode.

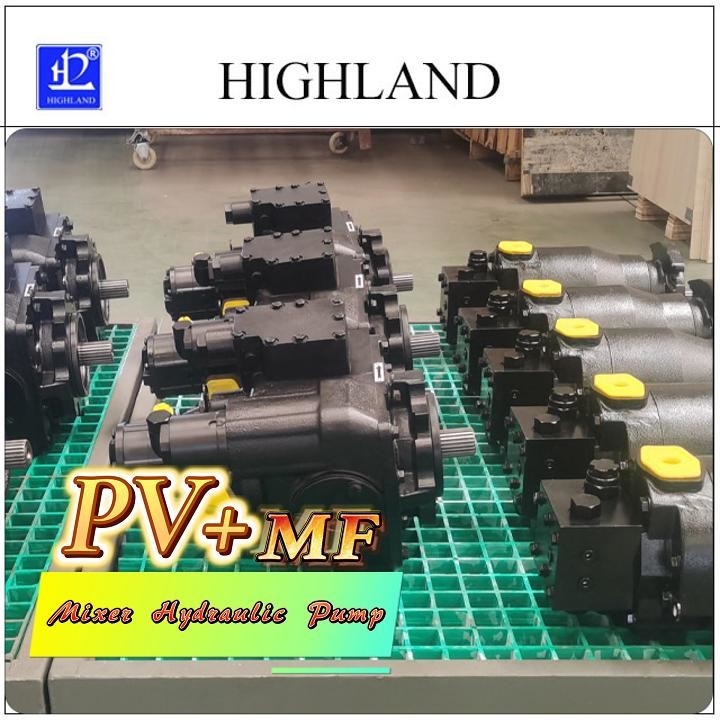

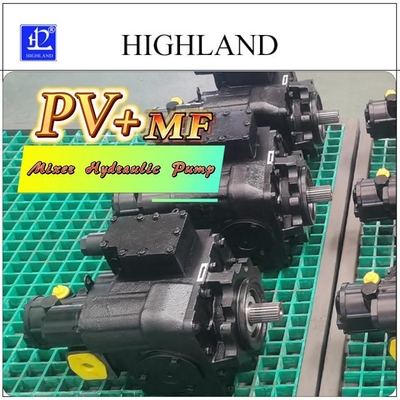

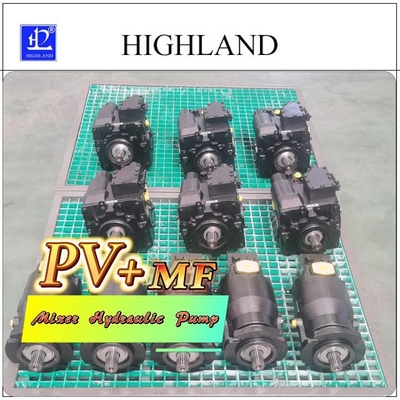

5. PV22 variable displacement hydraulic pumps with a charging oil pump.
6. MF22 fixed displacement hydraulic motors.
Concrete mixer piston pumps technical parameters:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
PV series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Hydraulic oil notice of axial piston motors:
Hydraulic system pollution will affect the normal operation of the concrete mixer at any time, and affect the service life of hydraulic pumps and hydraulic motors, serious damage to the pump and motor, so it is very important for the hydraulic system.
Oil change and oil filter replacement:
1. 500 working hours for first run.
2. Replace every 1500 working hours from now on, but at least once a year.
3. Note: When changing oil, replace hydraulic filter element at the same time.
