Product Details:
|
| Product Model: | PV23 Hydraulic Pumps | Displacement: | 89.0ml/r Displacement |
|---|---|---|---|
| Type: | Hydraulic System Components | Structure: | Hydraulic Piston Pump |
| Material: | Cast Iron | Principle: | Hydraulic Transmission |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Function: | Hydraulic System Components | Package: | Plywood Case |
| Highlight: | Axial Drive Shaft Mixer Hydraulic Pump,PV23 Cement Mixer Hydraulic Pump |
||

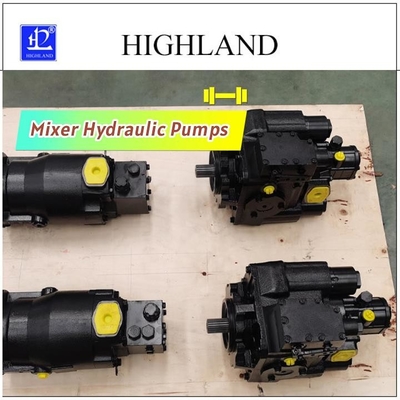

High Performance PV23 Hydraulic Piston Pumps for Construction Machineries
PV23 Hydraulic Piston Pumps information and application:
Our concrete mixer truck hydraulic piston pumps have wide range of displacements: Offering a range of pumps with 30-130 cm² per round, multiple displacements specification can match many power machineries. Such as construction machineries, transit mixer truck, agricultural machinery, Forestry equipment, mining machinery etc many applications of hydraulic pumps. PV23 model hydraulic pump with 89 displacement is more common for concrete mixer truck.
PV23 hydraulic piston pumps main features:
PV23 hydraulic piston pumps technical specifications:

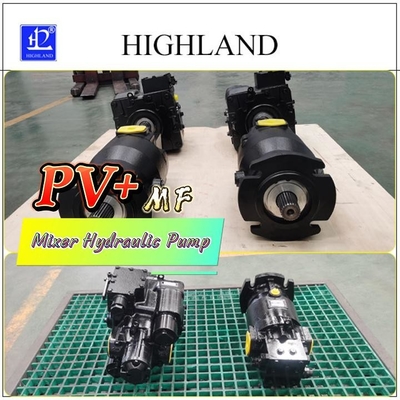

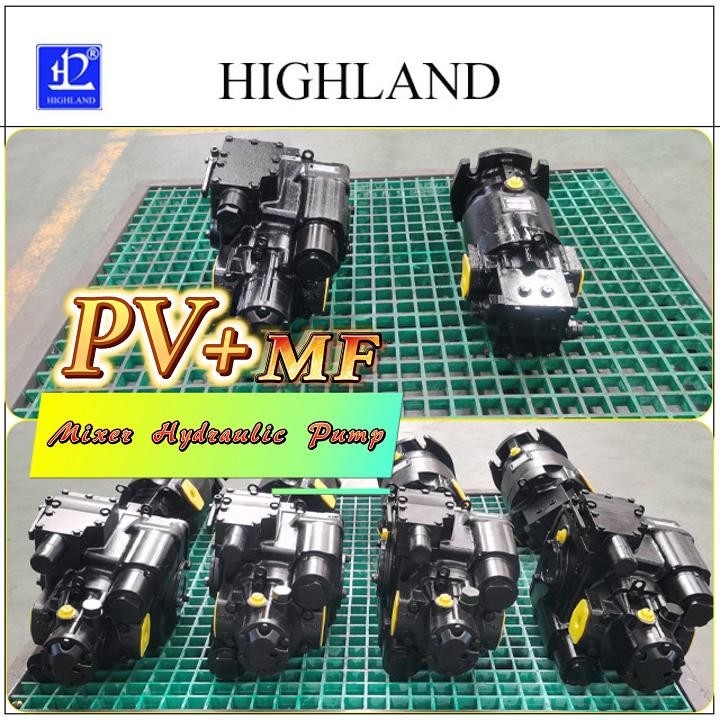

| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
PV series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Company service of PV23 hydraulic piston pumps:
1.One-stop hydraulic pump service for all the top mixer truck brands .
2.We have more than 20 years of experience in the hydraulic pump industry and our superior manufacturing process meet all kinds of hydraulic pumps according to OEM standards.
3. We have implemented the highest quality control system possible to ensure the stability and quality of our mixer piston pumps.
4.Our sales team is experienced and trained to understand your request and help you find the best solution for your needs.
FAQ of PV23 hydraulic piston pump:
Q1: Could we place sample order of transit mixer hydraulic pump?
A: Yes, welcome sample order to test and check quality firstly.
Q2: Do you offer guarantee for mixer hydraulic pump?
A: Each pump will be tested before shipping. Warranty 12 months after shipment for complete assembly.
Q3: What are the payment terms?
A: Full order: 30% T/T prepayment, balance paid before shipment. Small order/sample order: Full advance payment.
Q4: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic pump. We have 20 years experience in hydraulic industry for overseas and domestic markets.
Tags: construction machiney hydraulic pumps, PV23 hydraulic piston pumps, hydraulic piston pumps
