90kw Wheel Excavator Hydraulic Test Benches Air Force Hydraulic Test Stand

90kw Wheel Excavator Hydraulic Test Benches Air Force Hydraulic Test Stand
90kw Wheel Excavator Hydraulic Test Benches Air Force Hydraulic Test Stand 90kw Wheel Excavator Hydraulic Test Benches Air Force Hydraulic Test Stand 90kw Wheel Excavator Hydraulic Test Benches Air Force Hydraulic Test Stand 90kw Wheel Excavator Hydraulic Test Benches Air Force Hydraulic Test Stand

Large Image :  90kw Wheel Excavator Hydraulic Test Benches Air Force Hydraulic Test Stand

Product Details:
Place of Origin: China Dezhou
Brand Name: HIGHLAND
Certification: CE
Model Number: YST380
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 30000-86800/set
Packaging Details: Plastic film packaging
Delivery Time: 30-60 work days
Payment Terms: T/T, Western Union
Supply Ability: 1 sets per month

90kw Wheel Excavator Hydraulic Test Benches Air Force Hydraulic Test Stand

Description
Power: 90 Kw Flow Rate: 380 L/min
Pressure: 35mpa Power Source: 380V 50Hz Or Customized
Application: Testing Hydraulic Pumps Motors Warranty: 1 Year
Motive Force: Electromotor Medium: Hydraulic Oil
Display: Digital Display Meter And Computer Display Poduct Name: Hydraulic Test Benches Of Skid Steer Loader Has High Oil Filtration Accuracy
Highlight:

Wheel Excavator Hydraulic Test Benches

,

90kw Hydraulic Test Benches

,

35mpa air force hydraulic test stand

 Lifelong technical support for hydraulic test benches of wheel excavator



 Description



We can customize a variety of hydraulic components comprehensive test bench according to customer needs, including comprehensive performance test of hydraulic pump, motor, multi-way valve, oil cylinder, and system linkage matching test.



Technical parameter



 Hydraulic Valve Testing Machine Technical parameter
Pressure(mpa)  35mpa / 42mpa
Flow rate(L/min)  380L/min / 450L/min / 500L/min
Power(KW)  75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw
Power Drive Mode  Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery
Speed Range  1000r/min / 0-1500r/min / 0-2500r/min
Load location  Liquid control loading / Proportional loading
Show location  Locale/ Computer (long-distance)
Working Medium  Hydraulic oil
Composition  Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items,  motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data,  printouts
Applicable area  Apply to performance test of the hydraulic components that supported by a host in engineering  machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields.

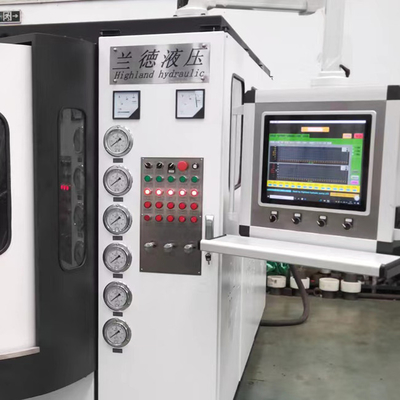

90kw Wheel Excavator Hydraulic Test Benches Air Force Hydraulic Test Stand 0



Hydraulic Test Benches Main Model



● YST-300 Hydraulic Motor Test Tench



● YST-300 Digit Hydraulic Test Bench



●YST-380 Hydraulic Pump Test Tench



● YST-380 Adjustable Hydraulic Comprehensive Test Bench



● YST-380 Digit Hydraulic Comprehensive Test Bench



● YST-500 Hydraulic Comprehensive Test Bench



Application



The comprehensive test system can be used as a working condition simulation test, which can effectively avoid many problems exposed after the traditional test is completed and installed, greatly improve the success rate of installation, and provide equipment conditions for the performance improvement of the host system, so as to truly achieve the specialization of research and development. As an open platform, the system adopts modular design. Through the combination of machinery, electronics, control and computer, the basic data analysis and support of fluid, power and electrical control systems are obtained, so as to promote the leapfrog development of the construction machinery industry, and thus drive the scientific and technological progress of the whole industry and the improvement of market competitiveness.



Photos

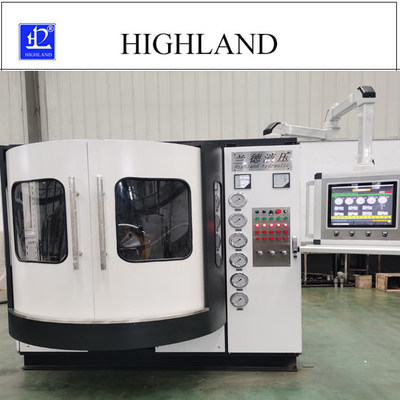

90kw Wheel Excavator Hydraulic Test Benches Air Force Hydraulic Test Stand 1

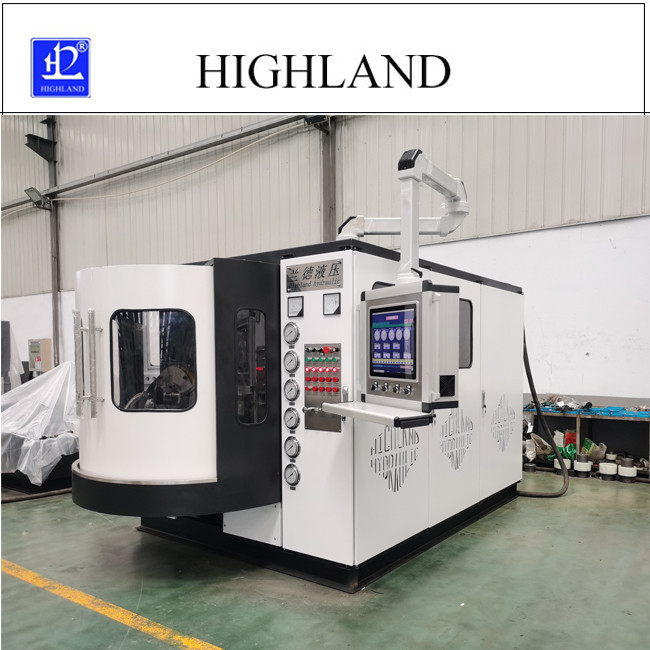

90kw Wheel Excavator Hydraulic Test Benches Air Force Hydraulic Test Stand 2
