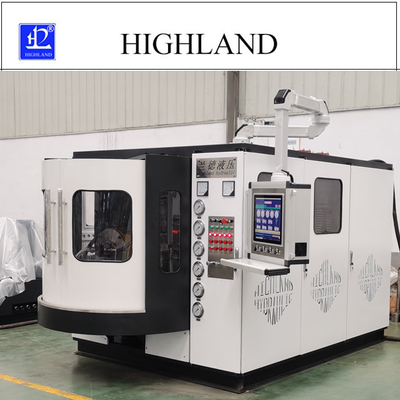

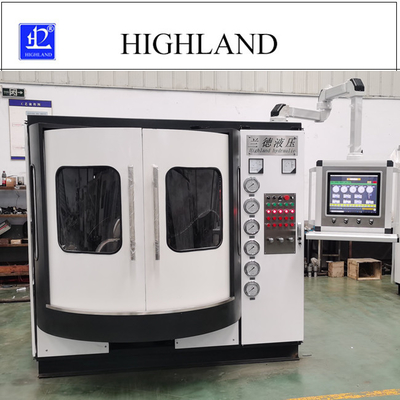

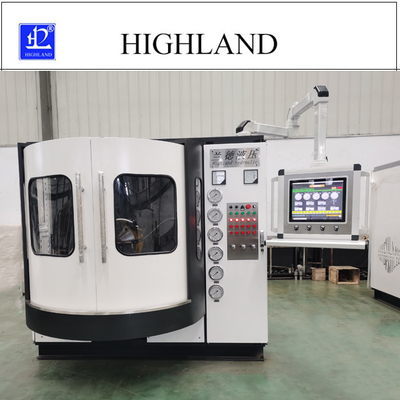

Hydraulic test benches of skid steer loader has high oil filtration accuracy
Hydraulic Test Benches product introduction
Hydraulic Test Benches is used for fault diagnosis of hydraulic pumps, motors, and oil cylinder production and maintenance enterprise products. The product is developed and designed and produced by the company, and can be arbitrarily combined according to customer needs.
Technical parameters of hydraulic pump test bench:
Traffic: 300-500L/min
Stress: 35MPa
Power: 160KW
Hydraulic Test Benches based information
THydraulic Test Benches is adopts the world's advanced power recovery technology to save energy. All valve design uses a installation structure. The specific layout is simple, stable in performance, low failure rate, and easy processing.
Hydraulic Test Benches technical parameters
| Hydraulic Test Benches Technical parameter |
| Pressure(mpa) |
35mpa / 42mpa |
| Flow rate(L/min) |
380L/min / 450L/min / 500L/min |
| Power(KW) |
75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode |
Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range |
1000r/min / 0-1500r/min / 0-2500r/min |
| Load location |
Liquid control loading / Proportional loading |
| Show location |
Locale/ Computer (long-distance) |
| Working Medium |
Hydraulic oil |
| Composition |
Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area |
Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Hydraulic Test Benches Main Model
● YST-300 Hydraulic Motor Test Tench
● YST-300 Digit Hydraulic Test Bench
●YST-380 Hydraulic Pump Test Tench
● YST-380 Adjustable Hydraulic Comprehensive Test Bench
● YST-380 Digit Hydraulic Comprehensive Test Bench
● YST-500 Hydraulic Comprehensive Test Bench
Company service
Imported hydraulic pump manufacturer
The quality is consistent, and the raw materials have never been ignored;
We strictly select materials;
Each hydraulic pump leaves the factory with an efficiency of more than 95;
FAQ of Hydraulic Test Benches
Q: Are you a manufacturer or trading company?
A: We are a professional hydraulic pumps manufacturer.
Q: What is the MOQ?
A: 1pc is also OK.
Q: How long is your warranty?
A: All our products come with an one (1) year warranty.
Q: Which payment terms could you accept?
A: Payment Terms: T/T , Western Union or Cash .
Q: Does your company accept customization?
A: We have our own factory, and excellent design team, and we accept OEM.
Q: How can I get the information and quotation of this product quickly?
A: Please leave your email, WhatsApp or wechat, and we will arrange the sales manager to contact you asap.
Tag: hydraulic test benches,hydraulic pump test bench,hydraulic cylinder test bench
