Product Details:
|
| Pressure: | 35mpa | Power Source: | 380V 50Hz Or Customized |
|---|---|---|---|
| Flow Rate: | 380 L/min | Application: | Testing Pump, Motor, Valve, Cylinder |
| Power: | 90 Kw | Warranty: | 1 Year |
| Motive Force: | Electromotor | Medium: | Hydraulic Oil |
| National Standards: | GB/T8104,GB/T8105,GB/T8106,GB/T7936,GB/T 15622 | Poduct Name: | Modular Layout Of Hydraulic Test Benches For Airport Mowers |
| Highlight: | Modular Layout Hydraulic Test Benches,GB/T8104 Hydraulic Test Benches,Hydraulic Test Stand For Airport Mowers |
||

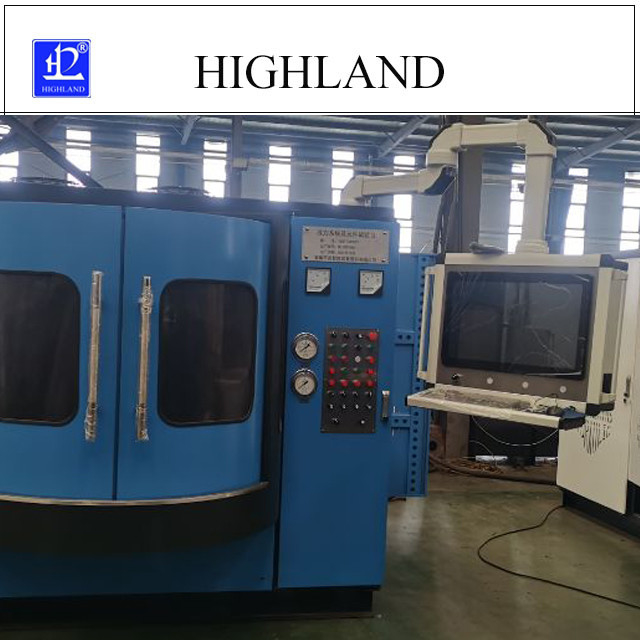

Modular layout of hydraulic test benches for airport mowers
Hydraulic Test Benches product description
The hydraulic test bench is widely used to test the hydraulic pump motor valve cylinder. It can also be used for fault diagnosis of hydraulic system. These products are developed and produced by ourselves, so we can customize them according to the needs of customers.
Hydraulic Test Benches features
The hydraulic pump test bench is designed and manufactured according to the standards of various countries for the delivery test of hydraulic pumps. It can test the dynamic and static performance of hydraulic vane pumps (single pump, double pump, multi pump), gear pump, plunger pump, etc. it is the most important testing equipment for hydraulic pump production and maintenance enterprises
Technical parameter
| Hydraulic Test Benches Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Hydraulic Test Benches Main Model
● YST-300 Hydraulic Motor Test Tench
● YST-300 Digit Hydraulic Test Bench
●YST-380 Hydraulic Pump Test Tench
● YST-380 Adjustable Hydraulic Comprehensive Test Bench
● YST-380 Digit Hydraulic Comprehensive Test Bench
● YST-500 Hydraulic Comprehensive Test Bench
Hydraulic Test Benches usage
For maintenance enterprises and remanufacturing enterprises of hydraulic components, it is used for fault judgment before maintenance and testing of main performance parameters after maintenance to ensure that the performance indicators of components before installation meet the requirements and avoid repeated assembly and disassembly.
