35mpa Vibratory Roller Hydraulic Test Benches Non Standard Customized

I'm Online Chat Now

35mpa Vibratory Roller Hydraulic Test Benches Non Standard Customized

35mpa Vibratory Roller Hydraulic Test Benches Non Standard Customized
35mpa Vibratory Roller Hydraulic Test Benches Non Standard Customized 35mpa Vibratory Roller Hydraulic Test Benches Non Standard Customized 35mpa Vibratory Roller Hydraulic Test Benches Non Standard Customized 35mpa Vibratory Roller Hydraulic Test Benches Non Standard Customized

Large Image :  35mpa Vibratory Roller Hydraulic Test Benches Non Standard Customized

Product Details:
Place of Origin: China Dezhou
Brand Name: HIGHLAND
Certification: CE
Model Number: YST380
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 30000-86800/set

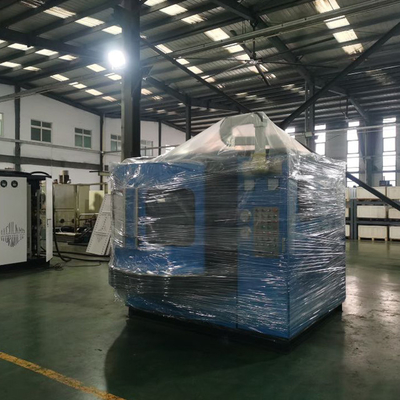

Packaging Details: Plastic film packaging
Delivery Time: 30-60 work days
Payment Terms: T/T, Western Union
Supply Ability: 1 sets per month

35mpa Vibratory Roller Hydraulic Test Benches Non Standard Customized

Description
Power: 90 Kw Pressure: 35mpa
Power Source: 380V 50Hz Or Customization Flow Rate: 380 L/min
Application: Repairing Company Warranty: 1 Year
Motive Force: Electromotor Medium: Hydraulic Oil
Display: Computer Or Digital Meter Display Poduct Name: Vibratory Roller Hydraulic Test Benches Non-standard Customized
Highlight:

Vibratory Roller Hydraulic Test Benches

,

35mpa Hydraulic Test Benches Customized

,

Non Standard hydraulic valve test bench

Vibratory roller hydraulic test benches non-standard customized



Hydraulic test benches Quick Detail





Hydraulic Test Benches can effectively avoid many problems exposed after the traditional test is completed and installed, greatly improve the success rate of installation, provide equipment conditions for the performance improvement of the host system, and truly achieve the specialization of research and development. As an open platform, the system adopts modular design. Through the combination of machinery, electronics, control and computer, the basic data analysis and support of fluid, power and electrical control systems are obtained, so as to promote the leapfrog development of the construction machinery industry, and thus drive the scientific and technological progress of the whole industry and the improvement of market competitiveness.



Description Hydraulic test benches



Highland hydraulic won many national patent certificates

Compact structure, reliable quality and reasonable design

Easy maintenance, simple operation and complete test data



 Hydraulic test benches Technical parameter



  Machine Technical parameter
Pressure(mpa)  35mpa / 42mpa
Flow rate(L/min)  380L/min / 450L/min / 500L/min
Power(KW)  75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw
Power Drive Mode  Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery
Speed Range  1000r/min / 0-1500r/min / 0-2500r/min
Load location  Liquid control loading / Proportional loading
Show location  Locale/ Computer (long-distance)
Working Medium  Hydraulic oil
Composition  Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items,  motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data,  printouts
Applicable area  Apply to performance test of the hydraulic components that supported by a host in engineering  machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields.



35mpa Vibratory Roller Hydraulic Test Benches Non Standard Customized 0



35mpa Vibratory Roller Hydraulic Test Benches Non Standard Customized 1

Hydraulic Test Benches Main Model



● YST-300 Hydraulic Motor Test Tench



● YST-300 Digit Hydraulic Test Bench



●YST-380 Hydraulic Pump Test Tench



● YST-380 Adjustable Hydraulic Comprehensive Test Bench



● YST-380 Digit Hydraulic Comprehensive Test Bench



● YST-500 Hydraulic Comprehensive Test Bench



Hydraulic test benches Applications



Hydraulic Test Bench is designed and manufactured according to the national and industrial test standards. It is applicable to variable displacement piston pumps, plunger motors, tandem pumps and agricultural machinery hydraulic pumps. It is a necessary testing equipment for hydraulic pump production, use, maintenance and remanufacturing enterprises.



FAQ of Hydraulic Test Benches



Q: Are you a manufacturer or trading company?

A: We are a professional hydraulic pumps manufacturer.

Q: What is the MOQ?

A: 1pc is also OK.

Q: How long is your warranty?

A: All our products come with an one (1) year warranty.

Q: Which payment terms could you accept?

A: Payment Terms: T/T , Western Union or Cash .

Q: Does your company accept customization?

A: We have our own factory, and excellent design team, and we accept OEM.

Q: How can I get the information and quotation of this product quickly?
A: Please leave your email, WhatsApp or wechat, and we will arrange the sales manager to contact you asap.



35mpa Vibratory Roller Hydraulic Test Benches Non Standard Customized 2


Tag: hydraulic test benches,hydraulic pump test stand,hydraulic valve test bench
