Product Details:
|
| Pressure: | 35Mpa | Characteristic: | Complete Detection Data |
|---|---|---|---|
| Usage: | Coal Mine | Name: | Hydraulic Valve Test Bench |
| Function: | Testing Hydraulic Valves | Advantage: | Simple Operation |
| Specification Parameters: | YST450 Hydraulic Valve Test Bench | Power: | 90 Kw |
| Highlight: | 90Kw Industrial Hydraulic Valve Test Bench,YST450 Hydraulic Valve Testing Machine,Coal Mine Hydraulic Valve Test Bench |
||

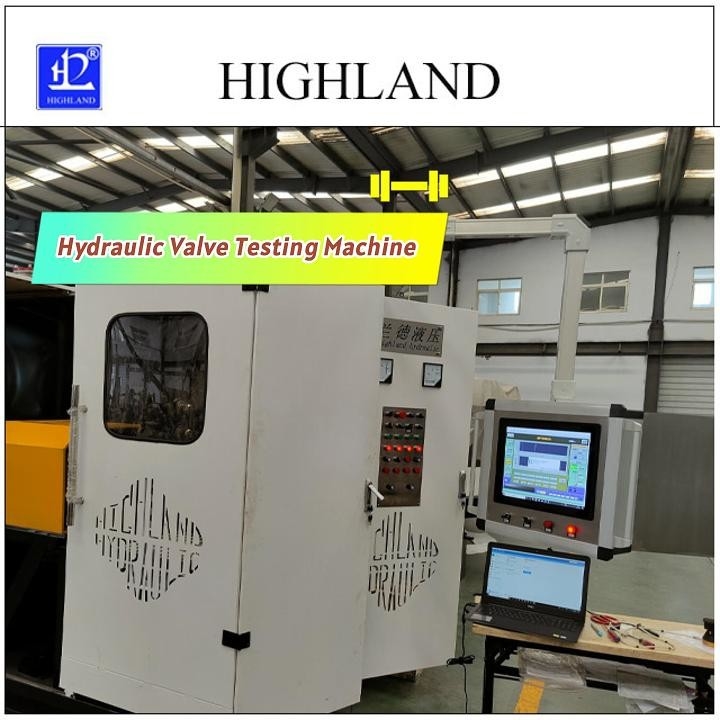

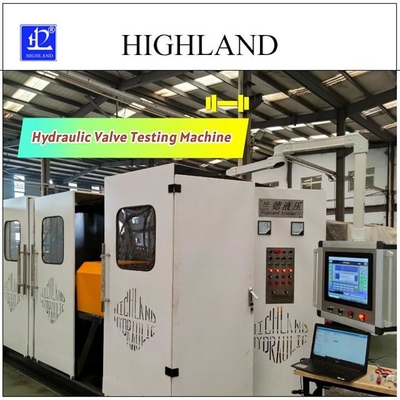

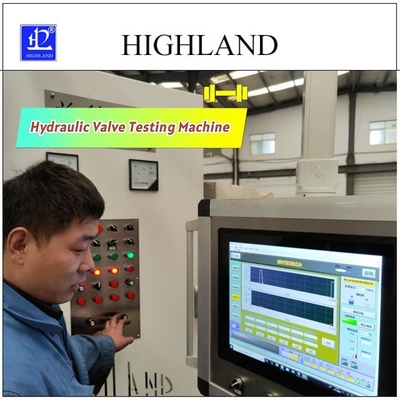

Hydraulic Valve Test Benches are a type of customized test machine that is designed to perform hydraulic tests. YST450 Hydraulic Valve Test Bench is a highly reliable and advanced testing equipment that is manufactured with the purpose of testing hydraulic components and systems for various industries. This test bench has a pressure of 35Mpa, a power of 90 Kw and is equipped with an complete detection data system for simple operation. It is widely used to test the hydraulic components or systems for their reliability and performance. The YST450 Hydraulic Valve Test Bench is a customized product that is designed to meet the exact requirements of a customer. It is manufactured by professional technicians with years of experience in the industry and offers a great advantage of simple operation. As a customized manufacturer, we provide high-quality and reliable Hydraulic Valve Test Benches that are designed to meet the specific requirements of our customers.
| Pressure(mpa) | 35mpa/42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic motor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Hydraulic valve test benches are special test devices that are designed to measure and analyze the pressure, flow, and performance of hydraulic equipment. HIGHLAND’s YST450 Series hydraulic valve test benches are customized test systems that are perfect for testing and analyzing hydraulic motors. The YST450 Series is made with precision and quality in mind, offering a variety of features including complete detection data and simple operation. The test benches have a maximum pressure of 35MPA and are CE certified.
As a customized manufacturer, HIGHLAND offers the YST450 Series with a minimum order quantity of one set. The set is packaged with plastic film packaging and arrives within 30-60 working days. The price of each set ranges from USD28000-120000, and HIGHLAND is able to supply 5 sets per month. Customers can make payments via T/T or Western Union.
HIGHLAND is a hydraulic test device factory with a wealth of experience in providing hydraulic testing systems and test and analysis tools. The YST450 Series hydraulic valve test benches are ideal for testing and analyzing hydraulic valves, and offer customers the highest quality and performance.
Are you looking for a reliable hydraulic valve test bench manufacturer? Highland YST450 Series Hydraulic Valve Test Benches are supplied with high quality and competitive price. This hydraulic testing system is designed for testing hydraulic motors with an complete detection data. The pressure can be up to 35Mpa and it can be used for coal mine. Our factory has strict quality control and the delivery time is within 30-60 working days. We accept T/T, Western Union as payment terms and the minimum order quantity is 1 set. If you are interested in our hydraulic test device, please contact us now!
Our Hydraulic Valve Test Benches provide customers with comprehensive technical support and services.
Our experienced team of engineers is available to assist you with any queries or issues you may have online.
We are committed to providing you with the best technical support and services available.
Each hydraulic valve test bench is securely packaged in a Plastic film. The package is then strapped for safe shipping.
A1: The Brand Name of the Hydraulic Valve Test Benches is HIGHLAND.
A2: The Model Number of the Hydraulic Valve Test Benches is YST450 Series.
A3: The Place of Origin of the Hydraulic Valve Test Benches is China Dezhou.
A4: The minimum order quantity of the Hydraulic Valve Test Benches is 1 set.
A5: The price of the Hydraulic Valve Test Benches is USD28000-120000/set.
