Product Details:
|
| Characteristic: | Compact Structure | Model: | YST450 |
|---|---|---|---|
| Pressure: | 42 Mpa | Flow Rate: | 450 L/min |
| Advantage: | Complete Detection Data | Brand: | HIGHLAND |
| Usage: | Coal Mine | Product Name: | Hydraulic Valve Test Bench |
| Highlight: | 75kw Hydraulic Valve Testing Machine,Coal Mine Compact Valve Test Benches |
||
Our YST450 Hydraulic Valve Test Bench is an ideal choice when it comes to testing valves for coal mines. This industrial-grade testing equipment is designed for high pressure applications, with a maximum pressure of up to 42 Mpa and a compact structure. It is perfect for testing valves in coal mines and other industrial settings.
Our YST450 Hydraulic Valve Test Bench is manufactured at our factory using the highest quality materials and components. It is designed to meet the needs of the coal mining industry and is capable of testing valves of various sizes and specifications. This testing equipment also features advanced safety features, including an emergency stop button and an overload protection system.
At our factory, we also provide a wide range of services related to the maintenance and repair of our YST450 Hydraulic Valve Test Bench. Our experienced engineers and technicians are available to provide technical support and advice when needed. We also offer a full range of spare parts and accessories for our test benches.
If you are looking for a reliable testing solution for your coal mine’s valves, then look no further than our YST450 Hydraulic Valve Test Bench. Our testing equipment is designed to meet the highest standards and is perfect for testing valves in coal mines and other industrial settings. Contact us today to learn more about our Hydraulic Valve Test Bench and how we can help you with your testing needs.
| Pressure(mpa) | 35mpa/42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic motor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |

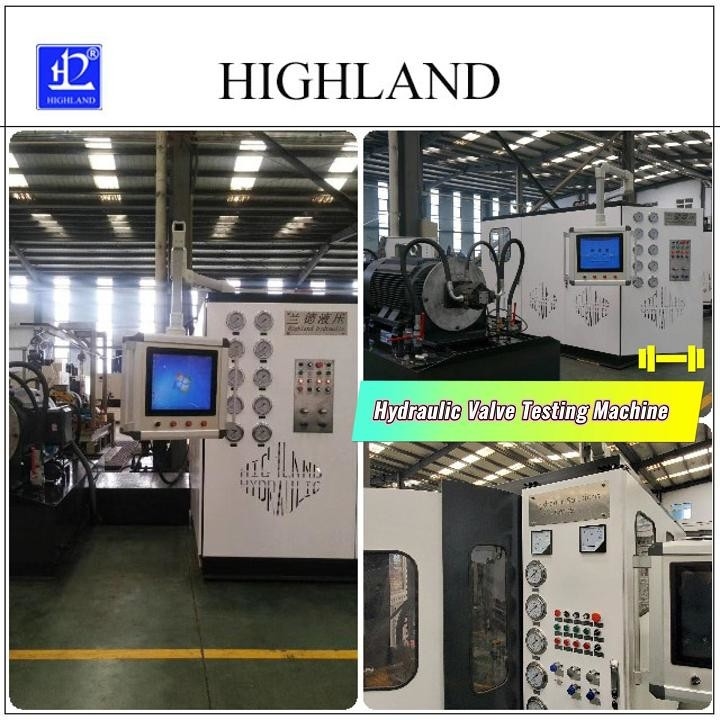

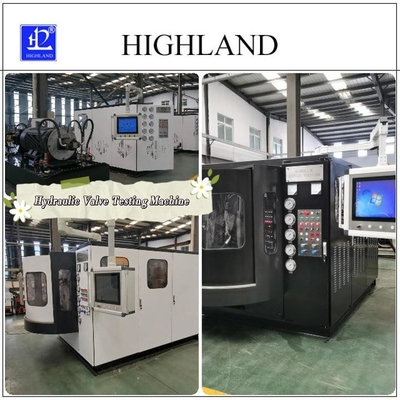

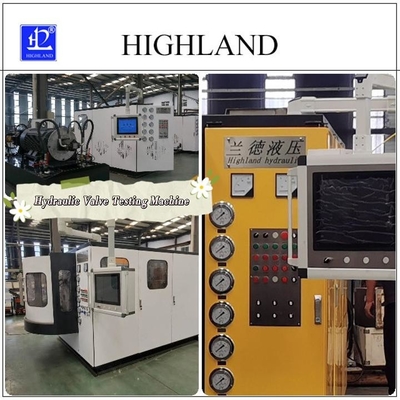

The Hydraulic Valve Testing Machine from HIGHLAND is a reliable and cost-effective solution for the customized testing of hydraulic valves. With model number YST450, this testing machine is designed to meet the requirements of coal mining and other industrial applications. It has a compact structure, a pressure of 42 Mpa, and a flow rate of 450 L/min, making it capable of providing complete detection data. Moreover, our testing machine is certified with CE and customers can place orders with a minimum order quantity of 1 set. The price of the testing machine ranges from USD28000-120000/set, and it comes with plastic film packaging. We are capable of delivering the product within 30-60 working days, and customers can make payments via T/T, Western Union. We have a supply ability of 5 sets per month for this product.
The Hydraulic Valve Testing Machine will be packaged in plastic film to ensure safe delivery.
The Hydraulic Valve Testing Machine will be shipped by a reliable courier service that provides tracking information.
We aim to ship within 30 business days after the order is confirmed.
