Product Details:
|
| Product Model: | MYHT-1-5 | Power: | Hydraulic |
|---|---|---|---|
| Fuel: | Gasoline | Pressure: | High Pressure |
| Max Pressure: | 420bar | Max Flow: | 500L/MIN |
| Dimension: | 295*265*210mm | Product Name: | Hydraulic Oil Pressure Gauges |
| Highlight: | 420 Bar Hydraulic Oil Pressure Gauges,500L/MIN Hydraulic Oil Pressure Gauges,Portable Hydraulic Motor Tester |
||

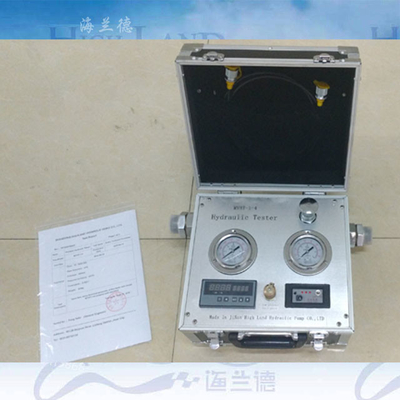

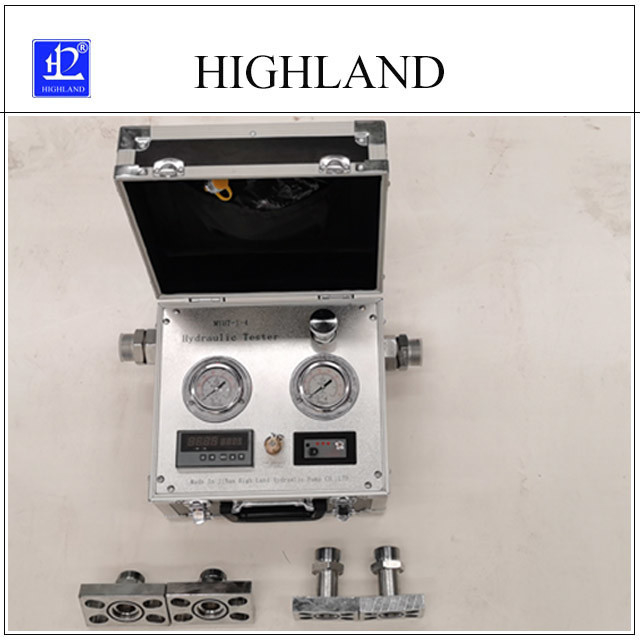

Hydraulic oil pressure gauges portable hydraulic motor tester
Portable hydraulic tester, hydraulic oil pressure gauges basic information:
MYHT Hydraulic Tester, researched and produced by Shandong Highland Hydraulic Seiko CO., Ltd. is a kind of practical and new type product with patent. In the hydraulic loop system, the acquisition of breakpoints data and the measurement of flow rate, pressure and temperature of the system and components are able to be realized simultaneously.
It is widely used in testing and diagnosing for Hydraulic Pump, Hydraulic Motor and Hydraulic valve.
Portable hydraulic tester technical specification:
Our hydraulic tester is very popular in world. Every year we export around 400 sets around the world. It is the essential tool in the construction machinery industry.
| Model | Flow(L/min) | Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 280*245*172 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 280*245*172 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 280*245*172 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
Note: The loading valve must be unscrew counterclockwise before start-up of the equipment. It will cause human injury or equipment damage if the loading valve is fully closed!!!!!!
