Product Details:
|
| Product Model: | MYHT-1-2 | Flow Range: | 0-200l/min |
|---|---|---|---|
| Pressure Range: | 0-42Mpa | Temperature: | 150C |
| Weight: | 6.1kg | Application: | Hydraulic Pump Motor And Valve, Cylinder |
| Color: | Silver And Black | Product Name: | MYHT-1-2 Hydraulic Pressure Meters Hydraulic Pressure Tester |
| Highlight: | hydraulic flow and pressure tester,MYHT-1-2 hydraulic test flow meter,200l/Min Hydraulic Pressure Meter |
||

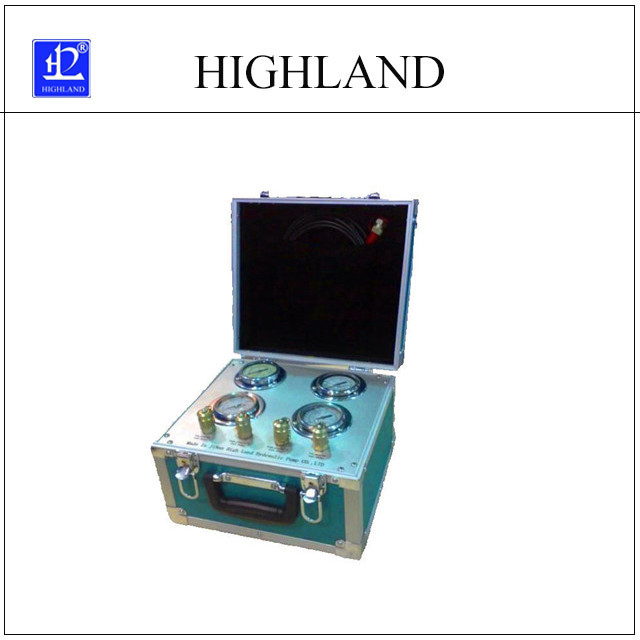

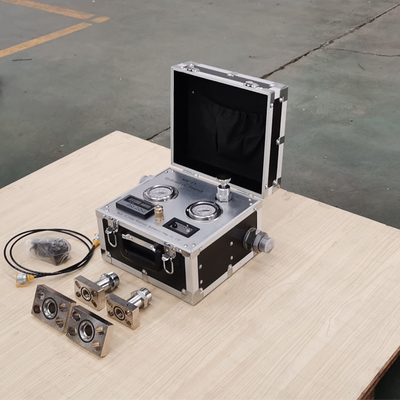

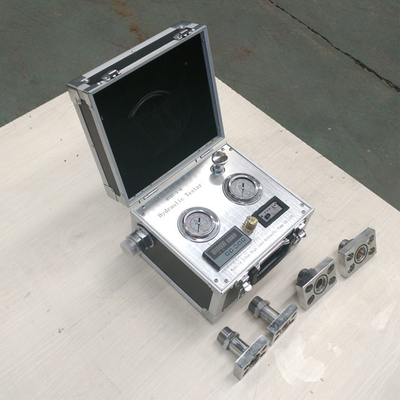

MYHT-1-2 hydraulic pressure meters hydraulic pressure tester
Hydraulic pressure tester basic information:
Model: MYHT-1-2
Flow: 200l/min
Pressure: 420Bar
Temperature: 150C.
Precision: ±1%
The MYHT-1-2 hydraulic pressure tester is an all-in-line unit designed to test the performance of hydraulic pumps, motors, valves and hydrostatic transmissions. It can show flow, pressure and temperature data. light wight and small volume, is a ideal tool to use on site. And the easy-to-use design allows the operator to just switch and test, without complex setup or special training.
Hydraulic pressure tester main features:
1) High precision - scale span ± 1%.
2) Turbine flow sensor - fast response, antipollution, low pressure loss.
3) With fast-measuring, high-accuracy and good-stability
4) Flow and temperature display, using four LED digital tube, free of low temperature limit.
5) Pressure indication: seismic-resistant gauges with super stable and overload ability.
6) Security design, indicators for reverse connection of test gauges, and for pressure, power.
7) Easy operation, flow rate, pressure and temperature can be tested. simultaneously at one point. Pressure valve adjusts with light power, and the loading is smooth and quickly, accurate.
8) Wide Application, compact structure, light weight, pump test, online system test, applicable for rapid diagnosis for all kinds of mobile and fixed hydraulic system and components.
Hydraulic pressure meters technical specifications:
| Model | Flow(L/min) | Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 280*245*172 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 280*245*172 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 280*245*172 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
Usage of MYHT-1-2 hydraulic pressure testers:
In the hydraulic loop system, the acquisition of breakpoints data and the measurement of flow rate, pressure and temperature of the system and components are able to be realized simultaneously. Through the data acquired MYHT Tester evaluates the performance of the system and components and judges the faults.
It is widely used in testing and diagnosing for hydraulic pump, hydraulic motor and hydraulic valve, hydraulic cylinder etc hydraulic transimission system.
Q: Are you a manufacturer or trading company?
A: We are a professional hydraulic tester manufacturer.
Q: What is the MOQ?
A: 1pc is also OK.
Q: How long is your warranty?
A: All our products come with an one (1) year warranty.
Q: Which payment terms could you accept?
A: Payment Terms: T/T , Western Union or Cash .
Q: Is your company accept customization?
A: We have our own factory, and excellent design team,and we accept OEM.
