Product Details:
|
| Product Model: | MYHT-1-7 | Flow Range: | 0-700l/min |
|---|---|---|---|
| Pressure Range: | 0-42Mpa | Temperature: | 150C |
| Weight: | 14kg | Application: | Test Hydraulic Pump Motor |
| Color: | Silver And Black Color | Product Name: | MYHT-1-7 Digital Hydraulic Testers |
| Highlight: | Digital Hydraulic Flow Meters,MYHT-1-7 Hydraulic Flow Meters,Hydraulic Pump Motor Flow Meters |
||

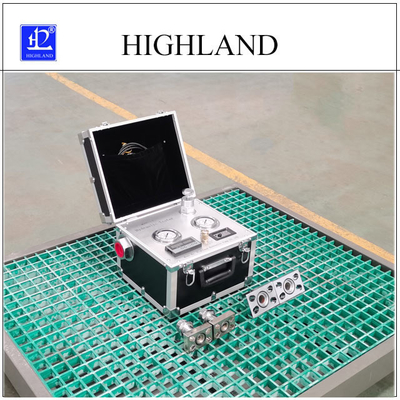

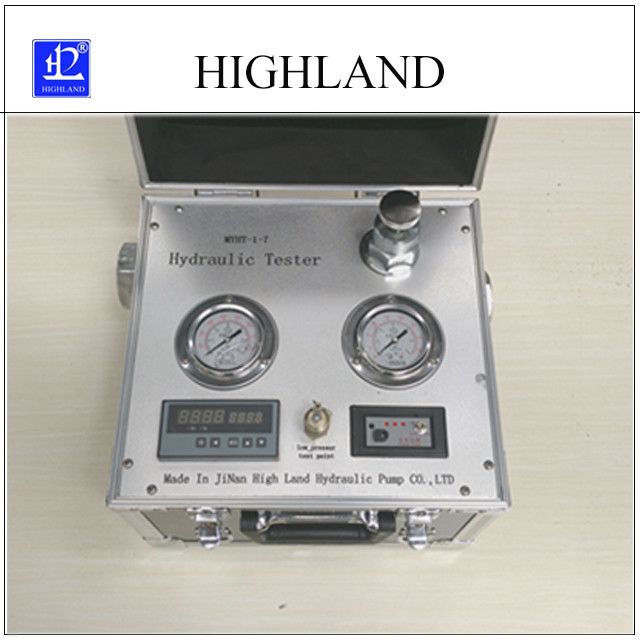

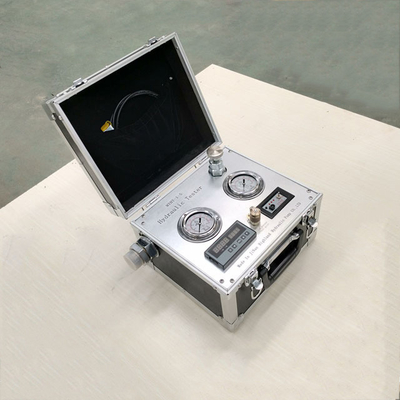

MYHT-1-7 Digital hydraulic testers for hydraulic pump motor
MYHT-1-7 Digital hydraulic testers product introduction:
MYHT-1-7 digital hydraulic testers have been developed and designed for hydraulic system so that engineers can test flow pressure and temperature readily. Because easy connection, light weight and small volume, hydraulic tester can be connected anywhere in the hydraulic system to test pumps, motors, valves and cylinders on site.
Hydraulic flow test kit main features:
1) High precision - scale span ± 1%.
2) Turbine flow sensor - fast response, antipollution, low pressure loss.
3) With fast-measuring, high-accuracy and good-stability
4) Flow and temperature display, using four LED digital tube, free of low temperature limit.
5) Pressure indication: seismic-resistant gauges with super stable and overload ability.
6) Security design, indicators for reverse connection of test gauges, and for pressure, power.
7) Easy operation, flow rate, pressure and temperature can be tested. simultaneously at one point. Pressure valve adjusts with light power, and the loading is smooth and quickly, accurate.
8) Wide Application, compact structure, light weight, pump test, online system test, applicable for rapid diagnosis for all kinds of mobile and fixed hydraulic system and components.
Hydraulic flow meter test kit technical specifications:
| Model | Flow(L/min) | Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 280*245*172 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 280*245*172 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 280*245*172 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
Because hydraulic tester is mobile test kit, it easily troubleshoot hydraulic circuits and isolate faulty components on mobile equipment, machine tools, excavator, agricultural and industrial tractors, and equipment (open or closed) hydraulic systems.
Q: Are you a manufacturer or trading company?
A: We are a professional hydraulic tester manufacturer.
Q: What is the MOQ?
A: 1pc is also OK.
Q: How long is your warranty?
A: All our products come with an one (1) year warranty.
Q: Which payment terms could you accept?
A: Payment Terms: T/T , Western Union or Cash .
Q: Is your company accept customization?
A: We have our own factory, and excellent design team,and we accept OEM.
