Product Details:
|
| Product Model: | MYHT-1-5 | Flow Range: | 0-500l/min |
|---|---|---|---|
| Pressure Range: | 0-42Mpa | Temperature: | 150C |
| Weight: | 10.5kg | Usage: | Test Hydraulic Transmission System |
| Application: | Hydraulic Pump Motor, Valve And Cylinder Etc | Product Name: | MYHT-1-5 500l/min Hydraulic Flow Testers |
| Highlight: | 500l/Min Hydraulic Flow Testers,MYHT-1-5 Hydraulic Flow Testers,Highland hydraulic test flow meter |
||

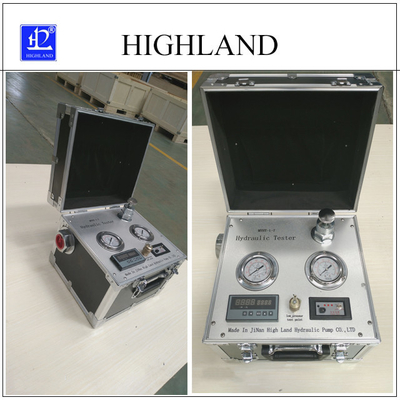

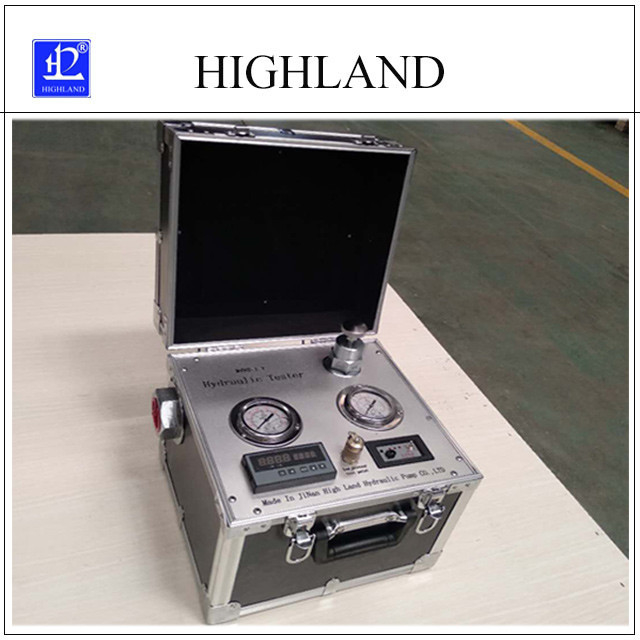

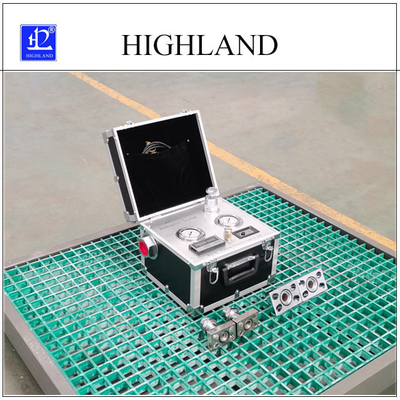

Highland MYHT-1-5 500l/min hydraulic flow testers for sale
MYHT-1-5 hydraulic flow testers product introduction:
MYHT-1-5 hydraulic flow testers, which are used for checking and surveying hydraulic system's discharge pressure, and temperature, and flow, is the initiation in China, and has gotten the country patent. Hydraulic flow tester can be connected anywhere in the hydraulic system to test pumps, motors, valves and cylinders with easy connection, light weight and small volume,
Hydraulic flow testers main features:
1) High precision, scale span ± 1%.
2) Turbine flow sensor, fast response, antipollution, low pressure loss.
3) With fast-measuring, high-accuracy and good-stability
4) Flow and temperature display, using four LED digital tube, free of low temperature limit.
5) Pressure indication: seismic-resistant gauges with super stable and overload ability.
6) Security design, indicators for reverse connection of test gauges, and for pressure, power.
7) Easy operation, flow rate, pressure and temperature can be tested. Pressure valve adjusts with light power, and the loading is smooth and quickly, accurate.
8) Wide Application, compact structure, light weight, pump test, online system test, applicable for rapid diagnosis for all kinds of mobile and fixed hydraulic system and components.
500l/min Hydraulic flow testers technical specifications:
| Model | Flow(L/min) | Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 280*245*172 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 280*245*172 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 280*245*172 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
Hydraulic notice of hydraulic flow testers:
When MYHT-1-5 Hydraulic flow testers install at any position of hydraulic pipe, the hydraulic oil always flows from near the loading valves to the other end. If reverse connect arises, no pressure will be formed. In order to obtain the accurate measurements, the oil inlet and oil outlet of the tester keep away above 30cm away from the elbow, tees, valves.
