Product Details:
|
| Features: | Test Hydraulic System | Product Model: | MYHT-1-4 |
|---|---|---|---|
| Usage: | Excavator | Industry: | Excavator Diagnostic Tools |
| Max Flow: | 400L/MIN | Max Pressure: | 420 Bar |
| Application: | Test Hydraulic Pumps, Motors, Valves And Cylinders | Name: | Excavator Hydraulic Flow Meters |
| Highlight: | 400L/MIN Hydraulic Flow Meters,Excavator Hydraulic Flow Meters,420 bar hydraulic flow tester |
||
Excavator hydraulic flow meters for troubleshooting hydraulic systems
Excavator hydraulic flow meters description:

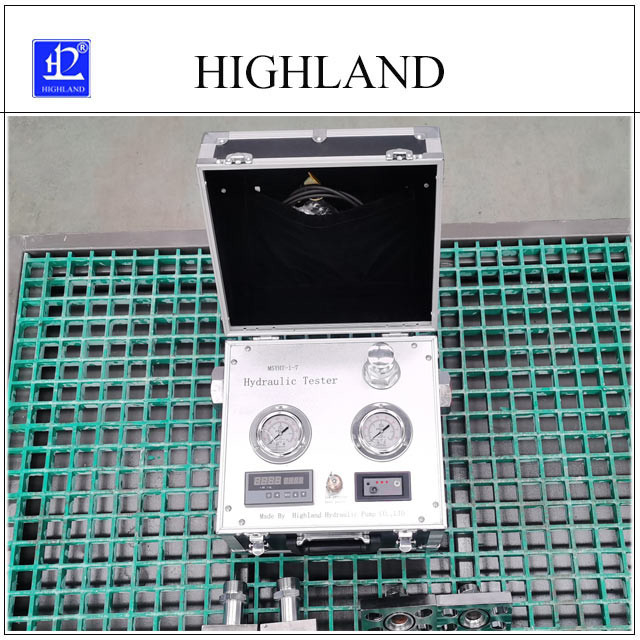

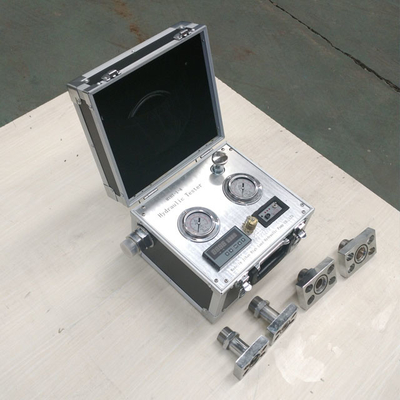

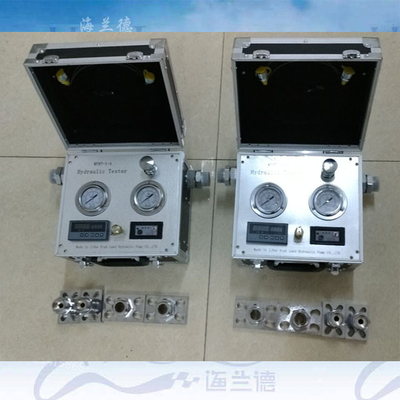

MYHT Hydraulic Tester, researched and produced by Jinan High Land Hydraulic Pump CO., Ltd. is a kind of practical and new type product with patent. In the hydraulic loop system, the acquisition of breakpoints data and the measurement of flow rate, pressure and temperature of the system and components are able to be realized simultaneously. Through the data acquired MYHT Tester evaluates the performance of the system and components and judges the faults. It is widely used in testing and diagnosing for Hydraulic Pump, Hydraulic Motor and Hydraulic valve.
Hydraulic flow meters technical specification:
| Model | Flow(L/min) | Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 280*245*172 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 280*245*172 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 280*245*172 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 |
14 |
How to installation hydraulic flow meters?
When MYHT - 1 Hydraulic Tester is installed at any position of hydraulic pipe, the hydraulic oil always flows from near the
loading valves to the other end. If reverse connect arises, no pressure will be formed. In order to obtain the accurate
measurements, the oil inlet and oiloutlet of the tester keep away above30cm away from the elbow, tees, valve.
- Accurate measurement of flow, pressure, peak pressure and temperature.
- Security hydraulic oil can flow in both directions, uniaxial loading, both to protect personnel protection instruments.
- Quick hydraulic equipment, hydraulic pumps, hydraulic motors, hydraulic valves, hydraulic cylinders online test. Simple
connection.
- Light Meters Light weight, small size and easy to carry. Beautifully designed, easy to clean.
- Power Meter optional 12V lithium battery can be recharged, large capacity, long life.
Precaution for use:
You must open the loading valve when you start the instrument.If the loading valve is closed,it is dangerous.
1. Once the hydraulic tester works,it could be regulated by loading valve
2. The cold weather could effect the testing precision,when the hydraulic oil keeps about 30?,the hydraulic tester could wourk well.
3. Please close the switch after testing
4. Pleas open pressure loading valve before testing
FAQ of hydraulic tester:
1. Are you a manufacturer or Trader ?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
2. What is your payment term ?
We accept T/T, Western Union etc.
3. How long is the validity of quotation ?
Generally,our price is valid within 7 working days from the date of quotation. The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market.
4. What is your delivery time ?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time depend on the order quantity.
5. How much is the shipping for hydraulic tester?
Please provide quantity and models with your order and shipping details and we can provide an international shipping quote.
