Product Details:
|
| Product Model: | MYHT-1-4 | Flow Range: | 0-400l/min |
|---|---|---|---|
| Pressure Range: | 0-42Mpa | Temperature: | 0-150C |
| Precission: | ±1% | Weight: | 8.8kg |
| Usage: | Hydraulic Pumps And Motors | Color: | Silver Color |
| Product Name: | Hydraulic Pump And Motors Pressure Tester Flow Meter Tester | ||
| Highlight: | 400l/min Hydraulic Flow Rate Meter,42Mpa hydraulic pump pressure tester,MYHT hydraulic flow pressure tester |
||

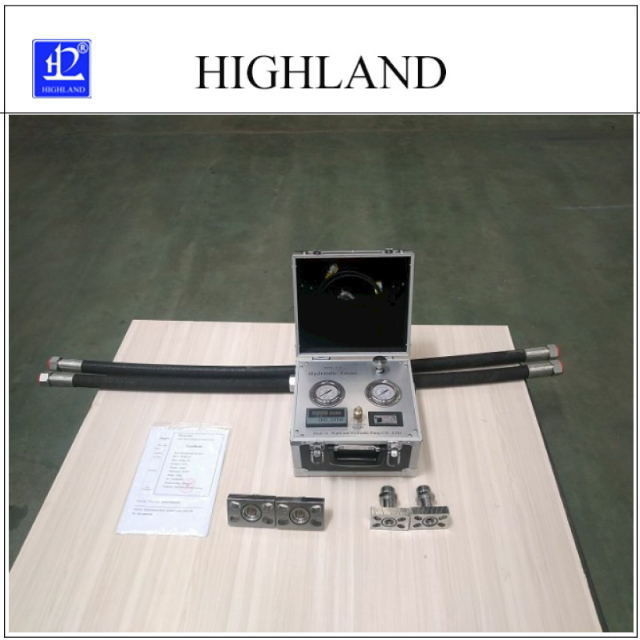

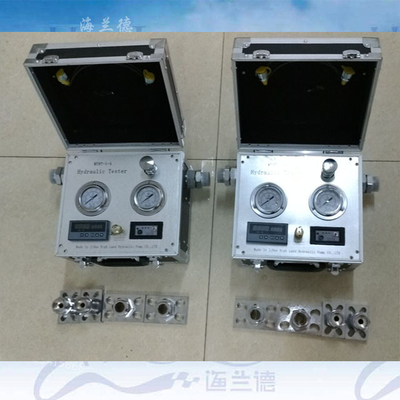

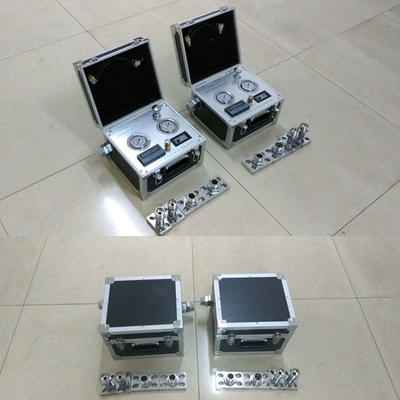

Hydraulic pump and motors pressure tester flow meter tester
Hydraulic tester basic information:
MYHT series Hydraulic tester, researched and produced by Jinan High Land Hydraulic Pump CO., Ltd. is a kind of practical and new type product with patent certificate. In the hydraulic loop system, the acquisition of breakpoints data and the measurement of flow rate, pressure and temperature of the system and components are able to be realized simultaneously. Through the data acquired MYHT Tester evaluates the performance of the system and components and judges the faults. It is widely used in testing and diagnosing for Hydraulic Pump, Hydraulic Motor and Hydraulic valve.
Hydraulic flow meter main features:
- Accurate measurement of flow, pressure, peak pressure and temperature.
- Security hydraulic oil can flow in both directions, uniaxial loading, both to protect personnel protection instruments.
- Quick hydraulic equipment, hydraulic pumps, hydraulic motors, hydraulic valves, hydraulic cylinders online test. Simple
connection.
- Light Meters Light weight, small size and easy to carry. Beautifully designed, easy to clean.
- Power Meter optional 12V lithium battery can be recharged, large capacity, long life.
Hydraulic pressure meter tester technical specifications:
| Model | Flow(L/min) | Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 280*245*172 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 280*245*172 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 280*245*172 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
Hydraulic pressure flow meter tester usage:
In the design, MYHT Series Hydraulic pressure tester is a device that can be used for many years and with less trouble, If trouble
arises after the quality guarantee period, it is available to do some simple inspection.
