Product Details:
|
| Product Model: | MYHT-1-7 | Flow Range: | 0-800l/min |
|---|---|---|---|
| Pressure Range: | 0-42Mpa | Temperature: | 0-150C |
| Weight: | 8.8kg | Usage: | Excavator Machinery |
| Color: | Silver Color | Product Name: | Excavator Machinery Hydraulic Flow Meters |
| Highlight: | Excavator Machinery Hydraulic Flow Meters,HIGHLAND Hydraulic Flow Meters,800l/min hydraulic flow measurement |
||
Excavator machinery hydraulic flow meters for measurement accuracy
Hydraulic flow meters basic information:

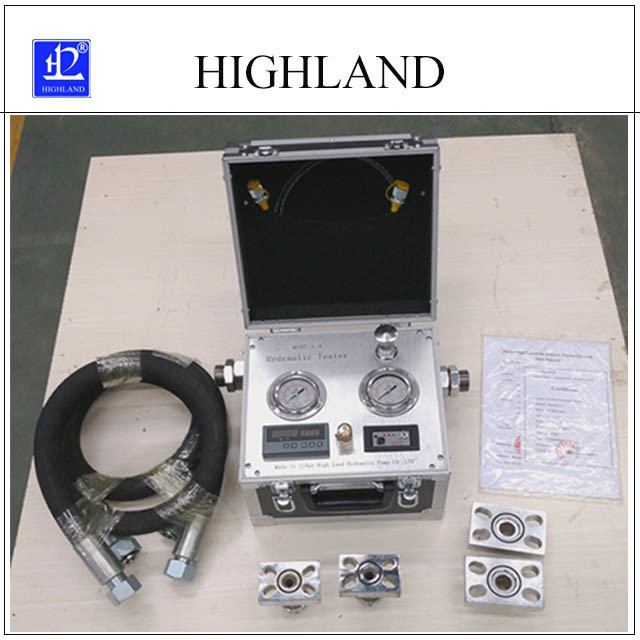

The MYHT is the ideal tool for pinpointing hydraulic system faults, reducing working time, and helping in preventative maintenance.
Simple operation includes a toggle switch to display either flow or temperature readings and built in loading valve is a specifically designed to enable the operator to simulate the maximum working pressure safely during normal machine operation.
Excavator machinery hydraulic flow meters main features:
1) High precision - scale span ± 1%.
2) Turbine flow sensor - fast response, antipollution, low pressure loss.
3) With fast-measuring, high-accuracy and good-stability
4) Flow and temperature display, using four LED digital tube, free of low temperature limit.
5) Pressure indication: seismic-resistant gauges with super stable and overload ability.
6) Security design, indicators for reverse connection of test gauges, and for pressure, power.
7) Easy operation, flow rate, pressure and temperature can be tested. simultaneously at one point. Pressure valve adjusts with light power, and the loading is smooth and quickly, accurate.
8) Wide Application, compact structure, light weight, pump test, online system test, applicable for rapid diagnosis for all kinds of mobile and fixed hydraulic system and components.
Hydraulic flow meters technical specifications:
| Model | Flow(L/min) | Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 280*245*172 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 280*245*172 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 280*245*172 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
Hydraulic flow meters usage:
In the hydraulic loop system, the acquisition of breakpoints data and the measurement of flow rate, pressure and temperature of the system and components are able to be realized simultaneously. Through the data acquired MYHT Tester evaluates the performance of the system and components and judges the faults.
It is widely used in testing and diagnosing for hydraulic pump, hydraulic motor and hydraulic valve of excavator machinery.
Note of Hydraulic flow tester:
1. Before starting the equipment, loading must be unscrewed (left screwing to the end). Otherwise, danger easy arises.
2. Near the loading valve is high-pressure oil inlet, the other is outlet. Loading will not be realized if the inlet and outlet are connected at wrong position.
3. Please shut off the power when the instrument not in use.
