Product Details:
|
| Product Model: | MYHT-1-7 | Flow: | 800l/min |
|---|---|---|---|
| Pressure Range: | 0-42Mpa | Temperature: | 0-150C |
| Weight: | 8.8kg | Usage: | Excavator Hydraulic System |
| Color: | Silver Color | Product Name: | Hydraulic Flow Meters For Excavator Hydraulic System |
| Highlight: | Light Weight Hydraulic Flow Meters,800l/min Hydraulic Flow Meters,Excavator hydraulic flow gauge |
||

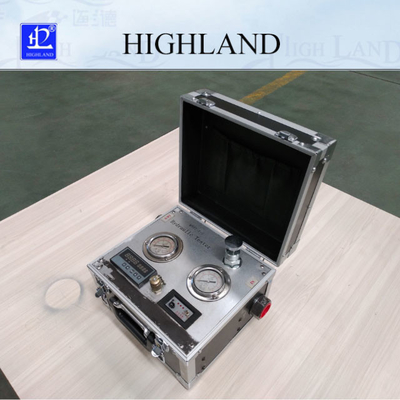

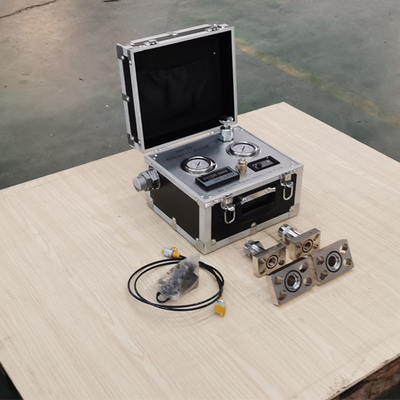

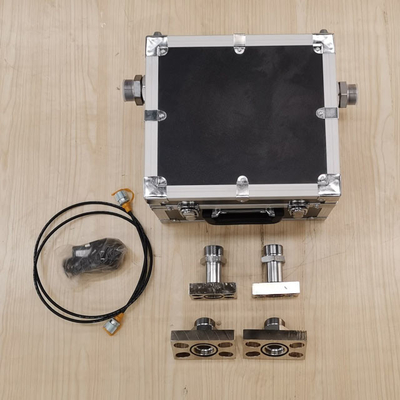

Portable light weight hydraulic flow meters for excavator hydraulic system
Portable hydraulic flow meters basic information:
The MYHT is the ideal tool for pinpointing hydraulic system faults, reducing working time, and helping in preventative maintenance.
Simple operation includes a toggle switch to display either flow or temperature readings and built in loading valve is a specifically designed to enable the operator to simulate the maximum working pressure safely during normal machine operation.
Hydraulic flow meters for excavator hydraulic system features:
1. ACCURATE measurement of flow, pressure, peak pressure and temperature.
2. SAFE to use in both directions of flow. Internal oil by-pass protects multi meter and operate against over pressure.
3. Bi-DIRECTIONAL for unrestricted connection and simplified testing.
4. FAST checks on pumps, motors, valves, cylinders, hydrostatic transmissions.
5. EASY to operate controls. Connect Into the hydraulic system and simply“Switch on”.
6. PORTABLE AND LIGHTWEIGHT with the case for easier viewing and cleaning.
7. RECHARGEABLE POWER: lithium battery 12v.
Excavator hydraulic flow meters technical specifications:
| Model | Flow(L/min) | Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 280*245*172 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 280*245*172 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 280*245*172 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
Hydraulic flow meters usage:
In the hydraulic loop system, the acquisition of breakpoints data and the measurement of flow rate, pressure and temperature of the system and components are able to be realized simultaneously. Through the data acquired MYHT Tester evaluates the performance of the system and components and judges the faults.
It is widely used in testing and diagnosing for hydraulic pump, hydraulic motor and hydraulic valve of excavator machinery.
Note of Hydraulic flow tester:
1. Before starting the equipment, loading must be unscrewed (left screwing to the end). Otherwise, danger easy arises.
2. Near the loading valve is high-pressure oil inlet, the other is outlet. Loading will not be realized if the inlet and outlet are connected at wrong position.
3. Please shut off the power when the instrument not in use.
