Product Details:
|
| Product Model: | MYHT-1-2 | Flow: | 200l/min |
|---|---|---|---|
| Pressure Range: | 0-42Mpa | Temperature: | 0-150C |
| Weight: | 8.8kg | Usage: | Test Hydraulic System On Site |
| Color: | Silver Color | Product Name: | Portable Mobile Hydraulic Flow Meters |
| Highlight: | Portable Mobile Hydraulic Flow Meters,Silver color Hydraulic Flow Meters,42Mpa hydraulic flow meter gauge |
||

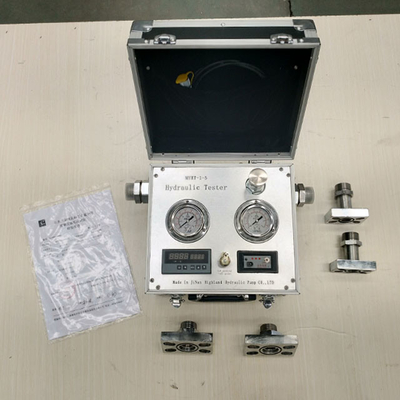

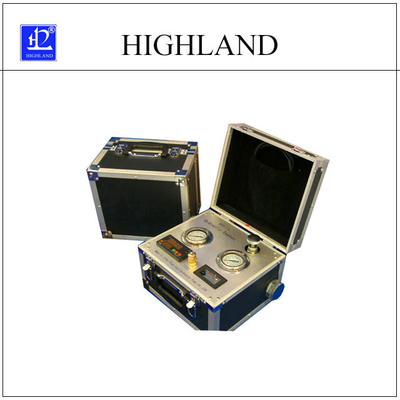

Portable light weight hydraulic flow meters for excavator hydraulic system
Portable hydraulic flow meters basic information:
The MYHT is the ideal tool for pinpointing hydraulic system faults, reducing working time, and helping in preventative maintenance.
Simple operation includes a toggle switch to display either flow or temperature readings and built in loading valve is a specifically designed to enable the operator to simulate the maximum working pressure safely during normal machine operation.
Hydraulic flow meters to testing hydraulic system on site features:
1. ACCURATE measurement of flow, pressure, peak pressure and temperature.
2. SAFE to use in both directions of flow. Internal oil by-pass protects multi meter and operate against over pressure.
3. Bi-DIRECTIONAL for unrestricted connection and simplified testing.
4. FAST checks on pumps, motors, valves, cylinders, hydrostatic transmissions.
5. EASY to operate controls. Connect Into the hydraulic system and simply“Switch on”.

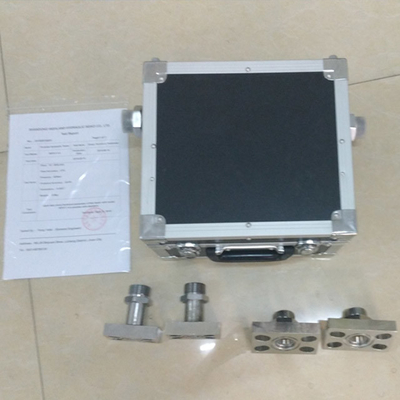

6. PORTABLE AND LIGHTWEIGHT with the case for easier viewing and cleaning.
7. RECHARGEABLE POWER: lithium battery 12v.
Excavator hydraulic flow meters technical specifications:
| Model | Flow(L/min) | Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 280*245*172 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 280*245*172 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 280*245*172 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
Hydraulic flow meters usage:
In the hydraulic loop system, the acquisition of breakpoints data and the measurement of flow rate, pressure and temperature of the system and components are able to be realized simultaneously. Through the data acquired MYHT Tester evaluates the performance of the system and components and judges the faults.
It is widely used in testing and diagnosing for hydraulic pump, hydraulic motor and hydraulic valve of excavator machinery.
FAQ of hydraulic flow meters:
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic flow meters.
20 years experience in hydraulic industry for oversea and domestic markets.
