MYHT-1-4 Hydraulic Flow Meters Construction Equipment Hydraulic System Pressure Gauge

MYHT-1-4 Hydraulic Flow Meters Construction Equipment Hydraulic System Pressure Gauge
MYHT-1-4 Hydraulic Flow Meters Construction Equipment Hydraulic System Pressure Gauge
MYHT-1-4 Hydraulic Flow Meters Construction Equipment Hydraulic System Pressure Gauge MYHT-1-4 Hydraulic Flow Meters Construction Equipment Hydraulic System Pressure Gauge MYHT-1-4 Hydraulic Flow Meters Construction Equipment Hydraulic System Pressure Gauge MYHT-1-4 Hydraulic Flow Meters Construction Equipment Hydraulic System Pressure Gauge

Large Image :  MYHT-1-4 Hydraulic Flow Meters Construction Equipment Hydraulic System Pressure Gauge

Product Details:
Place of Origin: CHINA DEZHOU
Brand Name: HIGHLAND
Certification: PATENT CERTIFICATE
Model Number: MYHT-1-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiated price
Packaging Details: Anti-corrosion plastic bag and plywood case
Delivery Time: 10 working days
Payment Terms: T/T
Supply Ability: 100 sets per month

MYHT-1-4 Hydraulic Flow Meters Construction Equipment Hydraulic System Pressure Gauge

Description
Product Model: MYHT-1-4 Flow: 400l/min
Pressure Range: 0-42Mpa Precission: ±1%
Weight: 8.8kg Usage: Construction Equipment Hydraulic System
Color: Silver Color Product Name: MYHT-1-4 Hydraulic Flow Meters
Highlight:

MYHT-1-4 Hydraulic Flow Meters

,

Construction Equipment Hydraulic Flow Meters

,

400l/min hydraulic system pressure gauge

MYHT-1-4 hydraulic flow meters for construction equipment hydraulic system



Hydraulic flow meters basic information:



MYHT series Hydraulic tester, researched and produced by Jinan High Land Hydraulic Pump CO., Ltd. is a kind of practical and new type product with patent certificate. In the hydraulic loop system, the acquisition of breakpoints data and the measurement of flow rate, pressure and temperature of the system and components are able to be realized simultaneously. Through the data acquired MYHT Tester evaluates the performance of the system and components and judges the faults. It is widely used in testing and diagnosing for Hydraulic Pump, Hydraulic Motor and Hydraulic valve.



Hydraulic flow meters main features:



- Accurate measurement of flow, pressure, peak pressure and temperature.
- Security hydraulic oil can flow in both directions, uniaxial loading, both to protect personnel protection instruments.
- Quick hydraulic equipment, hydraulic pumps, hydraulic motors, hydraulic valves, hydraulic cylinders online test. Simple
connection.
- Light Meters Light weight, small size and easy to carry. Beautifully designed, easy to clean.
- Power Meter optional 12V lithium battery can be recharged, large capacity, long life.

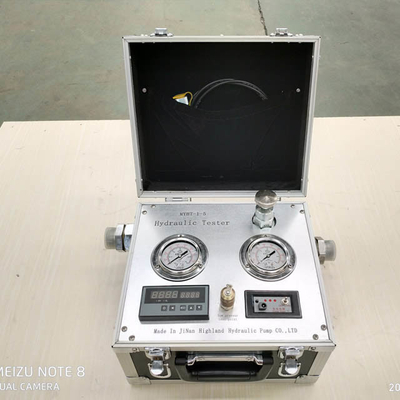

MYHT-1-4 Hydraulic Flow Meters Construction Equipment Hydraulic System Pressure Gauge 0

Hydraulic pressure meter tester technical specifications:



Model Flow(L/min) Precision Pressure(bar) Oil Temperature(°C) Dimensions(mm) Weight(Kg)
MYHT-1-2 200 ±1% 420 150 280*245*172 6.1
MYHT-1-4 400 ±1% 420 150 280*245*172 8.8
MYHT-1-5 500 ±1% 420 150 280*245*172 10.5
MYHT-1-7 800 ±1% 420 150 310*285*261 14

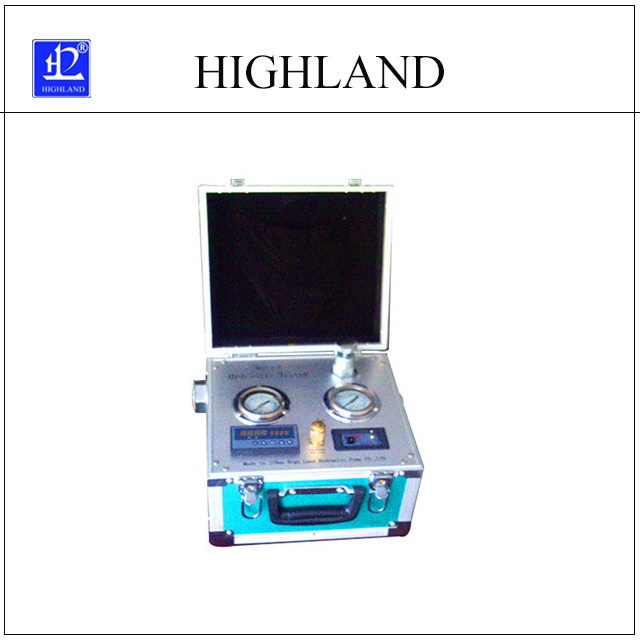

MYHT-1-4 Hydraulic Flow Meters Construction Equipment Hydraulic System Pressure Gauge 1

Hydraulic notice of hydraulic flow meters:



In the design, MYHT Series Hydraulic pressure tester is a device that can be used for many years and with less trouble, If trouble
arises after the quality guarantee period, it is available to do some simple inspection.

1. Prompt for testing the servo control pump, motor and valve. Special test procedure should have detailed regulations. It is
necessary to learn the instructions from the relevant manufacturer of hydraulic equipment and hydraulic components.


2. These components are with functions of increasing flow or pressure, and the design has fixed control mode such as push-pull
servo control of the discharge of variable pump. It will cause the sharp rise of flow and pressure if try to use manual control
instead of servo control. This kind of control-losing test may lead to system’s failure, or components damage or human injury.

FAQ of hydraulic flow meters:


Q1: Could I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Q2: How do you ship the goods and how long does it take to arrive?

A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.

Q3: Do you offer guarantee for the products?

A: Each motor or pump should be tested before shipping, test report can be sent if requested.

Warranty 12 months after shipment for complete assembly.

Q4: What are the payment terms?

A: Full order: 30% as deposit, balance before shipment.

Small order/sample order: Full advance payment.

Q5: Are you manufacturer?

We are a manufacturer with own plant manufacturing hydraulic flow meters.

20 years experience in hydraulic industry for oversea and domestic markets.

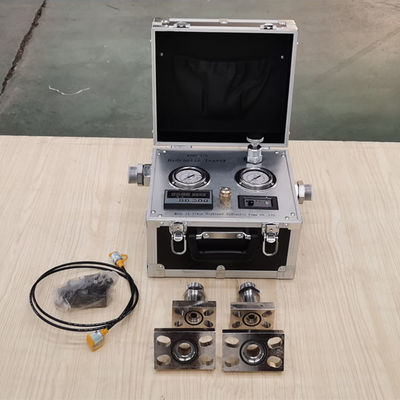

MYHT-1-4 Hydraulic Flow Meters Construction Equipment Hydraulic System Pressure Gauge 2
