Product Details:
|
| Product Model: | MYHT-1-5 | Flow: | 500l/min |
|---|---|---|---|
| Pressure: | 42Mpa | Precission: | ±1% |
| Weight: | 10.5kg | Usage: | Test Hydraulic System |
| Color: | Silver Color | Product Name: | Hydraulic Pressure Tester Pressure Gauge Tester |
| Highlight: | 420Bar Hydraulic Pressure Gauge Tester,500l/min hydraulic pressure gauge tester,1% Precission Hydraulic Test Kit |
||

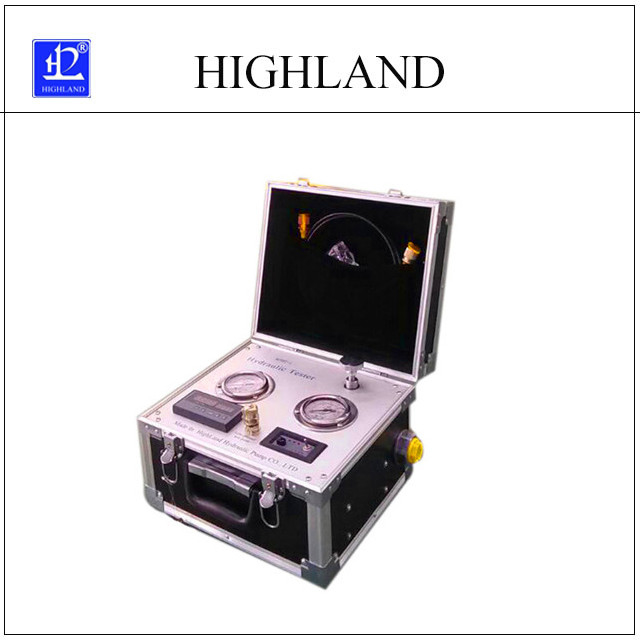

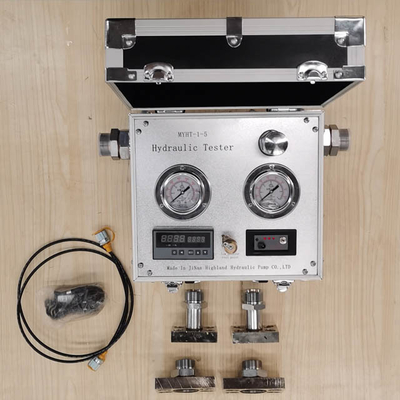

Hydraulic pressure tester pressure gauge tester to test hydraulic system
MYHT-1-5 Hydraulic flow meters basic information:
Model: MYHT-1-5
Flow: 500l/min
Pressure: 420Bar
Temperature: 150C.
MYHT-1-5 hydraulic tester is a practical and ideal tool to test kinds of hydraulic system, such as hydraulic pump motor sytem, hydraulic valve and hydraulic cylinder etc system. It can test pressure, flow and temperature. And engineers can read data directly.
Hydraulic flow meters main features:
- Accurate measurement of flow, pressure, peak pressure and temperature.
- Security hydraulic oil can flow in both directions, uniaxial loading, both to protect personnel protection instruments.
- Quick hydraulic equipment, hydraulic pumps, hydraulic motors, hydraulic valves, hydraulic cylinders online test. Simple
connection.
- Light Meters Light weight, small size and easy to carry. Beautifully designed, easy to clean.
- Power Meter optional 12V lithium battery can be recharged, large capacity, long life.
Hydraulic pressure gauge tester technical specifications:
| Model | Flow(L/min) | Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 280*245*172 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 280*245*172 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 280*245*172 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
Company service:
Fast delivery and good service
A number of invention patents and utility model patent certification, the key components of imported raw materials.
Order 7 ~ 20 days fast delivery, 1 year after sales maintenance cycle, for your risk.
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic flow meters.
20 years experience in hydraulic industry for oversea and domestic markets.
