MYHT-1-2 High accuracy hydraulic testers with flow pressure gauges
MYHT-1-2 Hydraulic tester basic information:
Model: MYHT-1-2
Flow: 200l/min
Pressure: 420Bar
Temperature: 150C.
Precision: ±1%

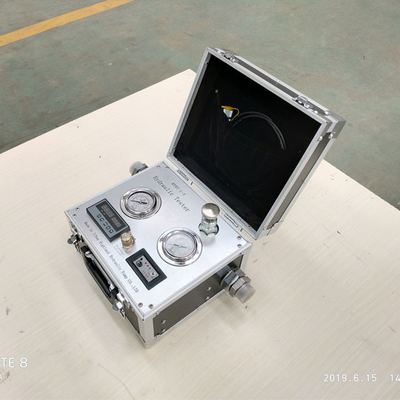

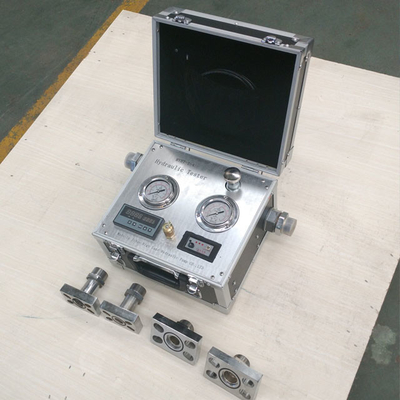

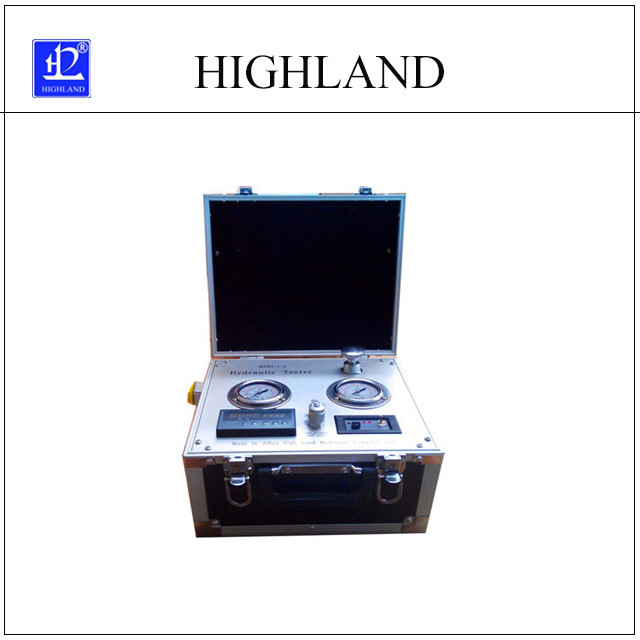

MYHT Portable hydraulic tester consists of the testing system and data system. The testing system includes simulation loading valve, pressure meter, flow meter and temperature meter. Different physical parameters of the hydraulic system are converted into electric parameters and sent to the data processing system, then feedback to digital display meters. So engineer can read data directly after checking by hydraulic tester.
Hydraulic tester main features:
- Accurate measurement of flow, pressure, peak pressure and temperature.
- Security hydraulic oil can flow in both directions, uniaxial loading, both to protect personnel protection instruments.
- Quick hydraulic equipment, hydraulic pumps, hydraulic motors, hydraulic valves, hydraulic cylinders online test. Simple
connection.
- Light Meters Light weight, small size and easy to carry. Beautifully designed, easy to clean.
- Power Meter optional 12V lithium battery can be recharged, large capacity, long life.
Hydraulic tester technical specifications:
| Model |
Flow(L/min) |
Precision |
Pressure(bar) |
Oil Temperature(°C) |
Dimensions(mm) |
Weight(Kg) |
| MYHT-1-2 |
200 |
±1% |
420 |
150 |
280*245*172 |
6.1 |
| MYHT-1-4 |
400 |
±1% |
420 |
150 |
280*245*172 |
8.8 |
| MYHT-1-5 |
500 |
±1% |
420 |
150 |
280*245*172 |
10.5 |
| MYHT-1-7 |
800 |
±1% |
420 |
150 |
310*285*261 |
14 |
Company service of hydraulic tester:
Fast delivery and good service
A number of invention patents and utility model patent certification, the key components of imported raw materials.
Order 7 ~ 20 days fast delivery, 1 year after sales maintenance cycle, for your risk.
FAQ of hydraulic tester:
Q: Are you a manufacturer or trading company?
A: We are a professional hydraulic tester manufacturer.
Q:What is the MOQ?
A:1pc is also OK.
Q:How long is your warranty?
A:All our products come with an one (1) year warranty.
Q:Which payment terms could you accept?
A:Payment Terms: T/T , Western Union or Cash .
Q:Is your company accept customization?
A:We have our own factory, and excellent design team,and we accept OEM.
