Product Details:
|
| Product Model: | MYHT-1-2 | Flow Range: | 0-200l/min |
|---|---|---|---|
| Pressure: | 42Mpa | Precission: | ±1% |
| Weight: | 6.1kg | Data Display: | Flow Pressure Gauge |
| Color: | Silver Color | Product Name: | Portable Hydraulic Tester |
| Highlight: | 42Mpa Lightweight Portable Hydraulic Tester,420Bar Portable Hydraulic Tester,200l/min portable pressure tester |
||

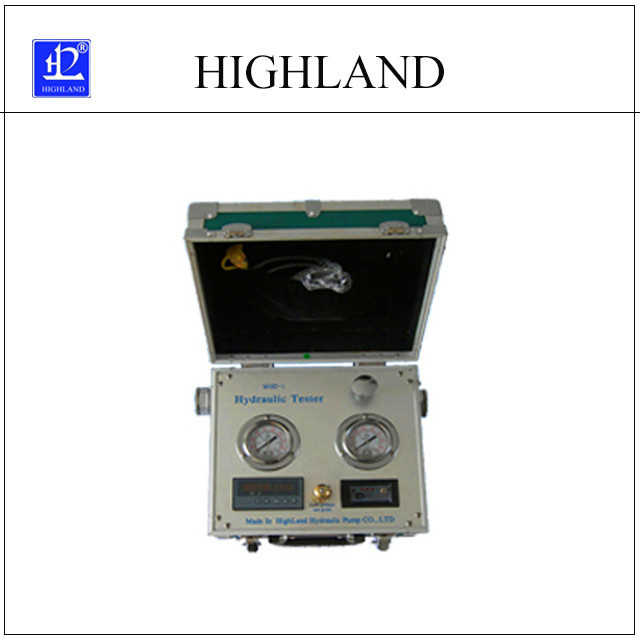

Portable hydraulic tester test flow pressure with digital display meter
Portable hydraulic tester basic information:
Model: MYHT-1-2
Flow: 200l/min
Pressure: 420Bar
Temperature: 150C.
Precision: ±1%
The MYHT-1-2 digital portable hydraulic tester is an all-in-line unit designed to test the performance of hydraulic pumps, motors, valves and hydrostatic transmissions. It can show flow, pressure and temperature data. light wight and small volume, is a ideal tool to use on site. And the easy-to-use design allows the operator to just switch and test, without complex setup or special training.
Hydraulic tester main features:
1. ACCURATE measurement of flow, pressure, peak pressure and temperature.
2. SAFE to use in both directions of flow. Internal oil by-pass protects multi meter and operate against over pressure.
3. Bi-DIRECTIONAL for unrestricted connection and simplified testing.
4. FAST checks on pumps, motors, valves, cylinders, hydrostatic transmissions.
5. EASY to operate controls. Connect Into the hydraulic system and simply“Switch on”.
6. PORTABLE AND LIGHTWEIGHT with the case for easier viewing and cleaning.
7. RECHARGEABLE POWER: lithium battery 12v.
Hydraulic tester technical specifications:
| Model | Flow(L/min) | Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 280*245*172 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 280*245*172 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 280*245*172 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
Company service of hydraulic tester:
Fast delivery and good service
A number of invention patents and utility model patent certification, the key components of imported raw materials.
Order 7 ~ 20 days fast delivery, 1 year after sales maintenance cycle, for your risk.
Q: Are you a manufacturer or trading company?
A: We are a professional hydraulic tester manufacturer.
Q: What is the MOQ?
A: 1pc is also OK.
Q: How long is your warranty?
A: All our products come with an one (1) year warranty.
Q: Which payment terms could you accept?
A: Payment Terms: T/T , Western Union or Cash .
Q: Is your company accept customization?
A: We have our own factory, and excellent design team,and we accept OEM.
