Product Details:
|
| Power: | 90 Kw | Flow Rate: | 380 L/min |
|---|---|---|---|
| Pressure: | 35mpa | Test Item: | Pressure, Flow, Displacement, Power, Efficiency Etc |
| Application: | Repairing Company Or Manufacturing Enterprise | Warranty: | 1 Year |
| Motive Force: | Electromotor | Medium: | Hydraulic Oil |
| Display: | Computer Or Digital Display Meter | Poduct Name: | Hydraulic Test Benches Of Shield Machine Is Easy To Operate |
| Highlight: | 2500r/Min Hydraulic Test Benches,Shield Machine Hydraulic Test Benches,OEM hydraulic pump test stand |
||

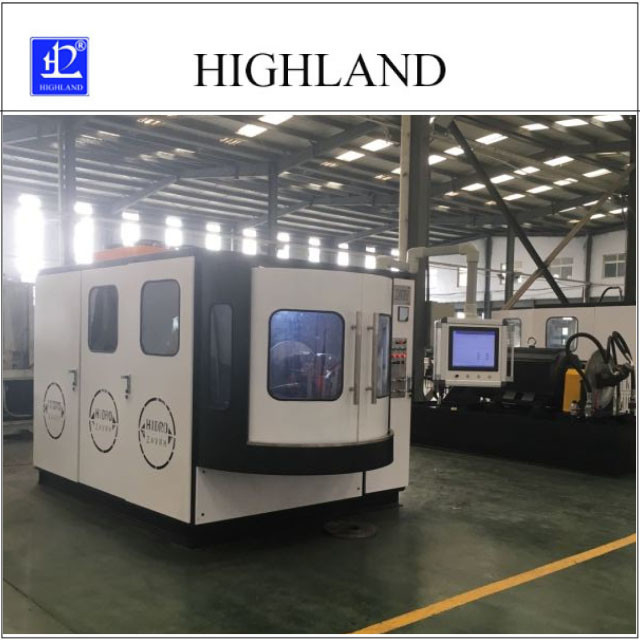

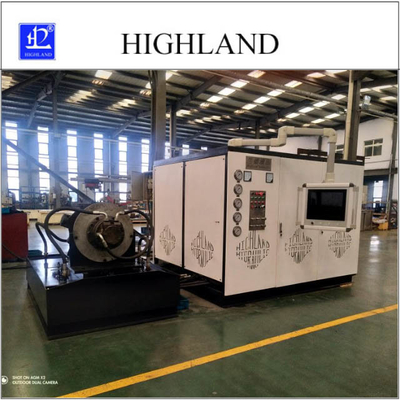

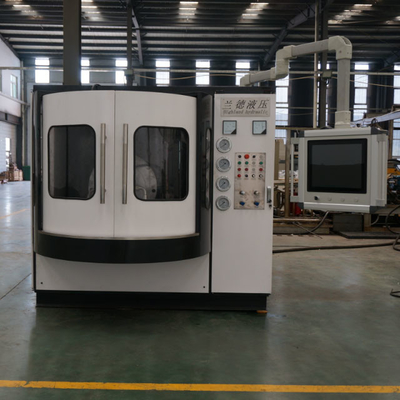

Hydraulic test benches of shield machine is easy to operate
Information Hydraulic test benches
The main business of highland hydraulic is to design and manufacture various Hydraulic Test Benches; Design and manufacture of various hydraulic stations and hydraulic systems; Development, design and manufacture of Electromechanical, hydraulic and pneumatic integrated mechanical equipment. Highland hydraulic company has long been focused on the research and application of hydraulic technology, especially in the test, inspection and maintenance of hydraulic components such as hydraulic pumps, hydraulic motors and hydraulic valves. The hydraulic component comprehensive test bench, hydraulic pump test bench, hydraulic motor test bench, hydraulic valve test bench and oil cylinder test bench produced by Highland hydraulic company are at the domestic level, and are widely used in hydraulic components such as hydraulic pumps, hydraulic equipment In the production and maintenance industry of construction machinery, the company has customers all over the country and Southeast Asia, and has been widely praised by customers.
Hydraulic test benches Technical parameter
| Hydraulic test benches Machine Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields |
Advantage
Highland hydraulic test bench, R & D and design manufacturer, hydraulic pump test bench is of international quality, bringing you a new hydraulic test bench testing experience. High end test equipment is led by service, and more than 20 years of technical accumulation, creating a complete test solution tailored for you!
Our Service
Highland hydraulic test bench, hydraulic pump test bench, hydraulic motor test bench and hydraulic valve test bench are easy to operate, with complete detection data, environmental protection and energy saving, and clear pipeline connection
Hydraulic Test Benches Main Model
● YST-300 Hydraulic Motor Test Tench
● YST-300 Digit Hydraulic Test Bench
●YST-380 Hydraulic Pump Test Tench
● YST-380 Adjustable Hydraulic Comprehensive Test Bench
● YST-380 Digit Hydraulic Comprehensive Test Bench
● YST-500 Hydraulic Comprehensive Test Bench
Tag:hydraulic test benches,hydraulic pump test bench,hydraulic cylinder test bench
