Product Details:
|
| Flow Rate: | 380 L/min | Power: | 90 Kw |
|---|---|---|---|
| Pressure: | 35 Mpa | Can Sell Land: | Global |
| Application Scenario: | Processing Workshop | Warranty: | 1 Year |
| Motive Force: | Electromotor | Medium: | Hydraulic Oil |
| Temperature Range: | Hydraulic Pump Motor Valve, Etc. | Product Name: | High End Hydraulic Test Stand Equipment Environmentally Friendly And Energy-saving |
| Highlight: | 35mpa High End Hydraulic Test Stand,90kw Hydraulic Test Stand,Environmentally Friendly hydraulic test bench |
||

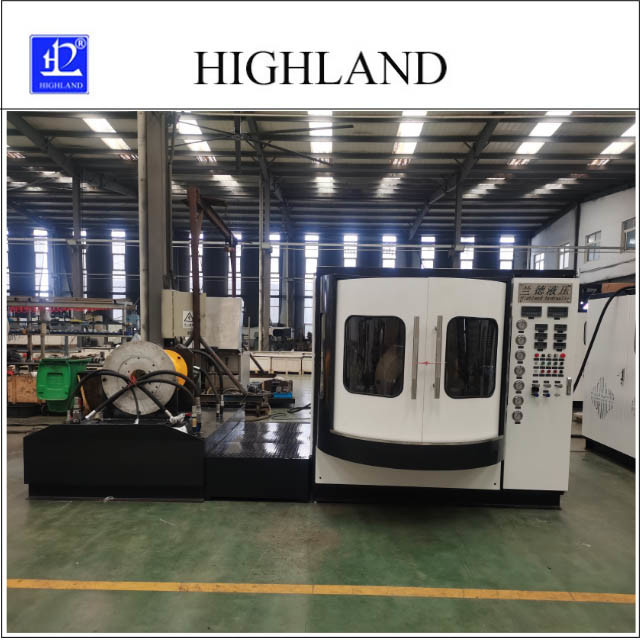

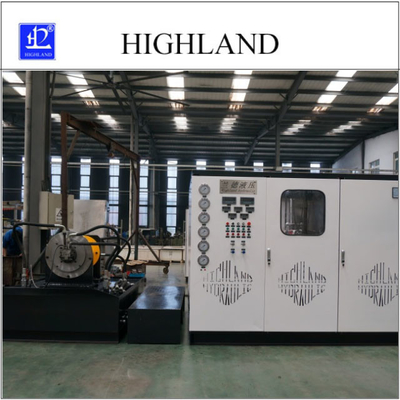

High end hydraulic test stand equipment environmentally friendly and energy-saving
Enterprise products Hydraulic Test Stands
Hydraulic system, hydraulic pump, hydraulic motor, hydraulic pump maintenance, hydraulic test bench, hydraulic tester, hydraulic pump accessories, hydraulic system maintenance and transformation.
Standard Specification
YST Series Hydraulic testing table are used for checking and proofreading the products that hydraulic system's breakdown diagnosis.These products are researched and produced by ourselves,so we could combine conduct according to customers' needs.
Technical parameter
| Hydraulic Test Stands Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Advantage Hydraulic Test Stands
According to customer testing requirements, formulate technical solutions suitable for customers.
The comprehensive hydraulic test-bed can be used for the inspection and maintenance of various hydraulic accessories such as hydraulic pumps, hydraulic motors, hydraulic cylinders, hydraulic valves, etc
Service guarantee Hydraulic Test Stands
Our tenet: profession is the foundation, service is the guarantee, and quality is the reputation. Over the years, with reliable product quality and good after-sales service, highland hydraulic has won the recognition of the majority of users. Its products are used in industries such as industry, agriculture, mining machinery, shipbuilding and so on.
Best Products Hydraulic Test Stands
Tag : Hydraulic Test Stands,test bench hydraulic,hydro test bench
