Product Details:
|
| Power: | 90 Kw | Flow Rate: | 380 L/min |
|---|---|---|---|
| Pressure: | 35 Mpa | Custom: | Non -calibration |
| Office Address: | China Jinan | Warranty: | 1 Year |
| Motive Force: | Electromotor | Product Name: | Hydraulic Test Stand Of Paver Is Compact |
| Highlight: | Paver Hydraulic Test Stands,90kw Hydraulic Test Stands,Compact hydraulic pump test stand |
||

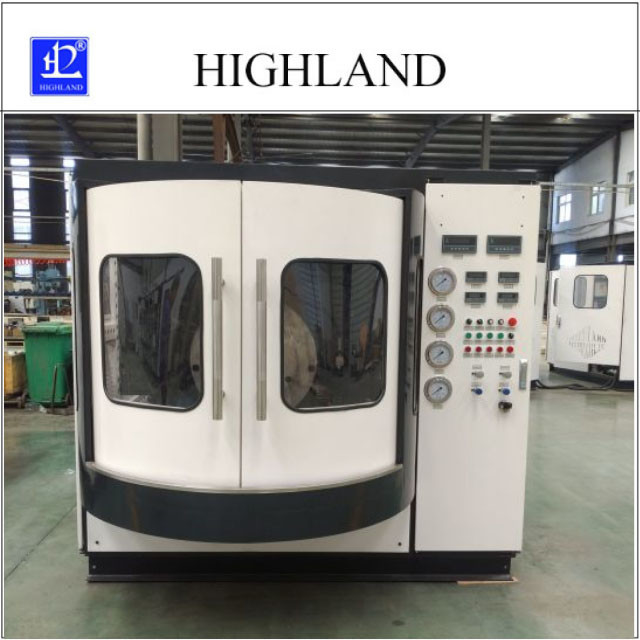

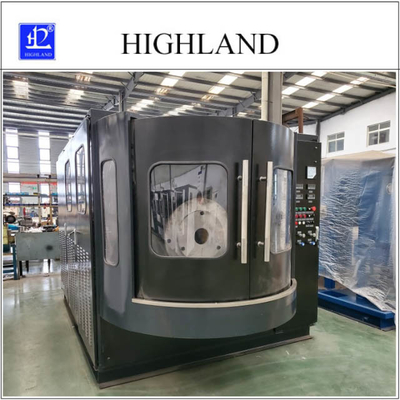

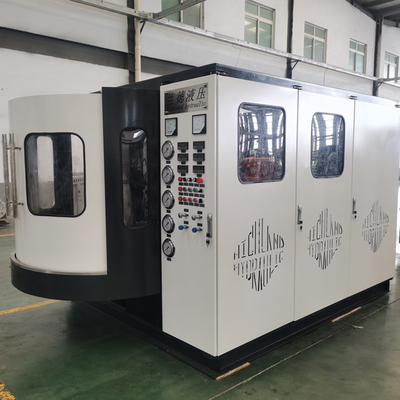

Hydraulic test stand of paver is compact
Standard Specification
YST Series Hydraulic testing table are used for checking and proofreading the products that hydraulic system's breakdown diagnosis.These products are researched and produced by ourselves,so we could combine conduct according to customers' needs.
Technical parameter
| Hydraulic Test Stands Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Hydraulic Test Stands Safety
The company has the most advanced hydraulic test-bed in China. In addition to solving the problems of oil distribution plate, cylinder block and plunger, it has particular advantages in solving the core technical problems of hydraulic pump, hydraulic motor, control valve and its servo variables.
Main Features
Hydraulic Test Stands
1. Professional technicians carry out thorough technical communication in the early stage to ensure that customized products meet the ideal requirements of customers
2. The supporting components of the product are conventional products that are most suitable for equipment at home and abroad, which are easy to operate and maintain
3. The product is designed to be integrated and beautiful; Ensure the strength and aesthetics of each weld in manufacturing; Special high brightness enamel is selected as the paint, and the color can be allocated according to the customer's requirements. The paint is painted by professional painters to ensure that the product appearance meets the requirements of industrial aesthetics.
Our Service
Tag : Hydraulic Test Stands,hydraulic pump test bench,hydraulic cylinder test bench
