Product Details:
|
| Product Model: | YST380 | Extreme Pressure: | 46MPa |
|---|---|---|---|
| Pressure: | 35 Mpa | Scope: | Hydraulic |
| Flow Rate: | 380 L/min | Equipment Attachment: | Connecting Shaft |
| Power: | 160 Kw | Warranty: | 1 Year |
| Motive Force: | Electromotor | Medium: | Hydraulic Oil |
| Highlight: | 160kw Computer Hydraulic Test Stands,YST380 Hydraulic Test Stands,380L/min hydraulic testing bench |
||
Computer hydraulic test stands patented product
Hydraulic test stands Description
HIGHLAND hydraulic is a highly professional high-tech enterprise integrating hydraulic manufacturing, sales and maintenance. The company has an excellent team with engineers and professional technicians as the backbone, and has been making its own contribution to the manufacture of high-end products in China's hydraulic practical field. Since 2008, the company has entered the stage of rapid development of hydraulic pumps. The company has developed domestic advanced hydraulic test instruments and power recovery hydraulic pump comprehensive test-bed, which have reached the advanced level at home and abroad, and have obtained a number of national patents. Today, "highland hydraulic pump" has become a well-known brand in the industry, and the company's products sell well at home and abroad. As one of the earliest professional hydraulic pump manufacturers in Shandong, we maintain the principle of leading service and quality in the market, and in line with the service tenet of "service first, integrity-based", we continue to meet the needs of users, provide users with high-quality, high-quality, rapid and efficient hydraulic technology services, and take the trust and support of users as the sunshine and rain of our growth. Jinan hailand hydraulic is willing to work with users to jointly serve the society and create enterprise brilliance!
Standard Specification Hydraulic test stands
YST Series Hydraulic testing table are used for checking and proofreading the products that hydraulic system's breakdown diagnosis.These products are researched and produced by ourselves,so we could combine conduct according to customers' needs.
Technical parameter
| Hydraulic Test Stands Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Application Hydraulic test stands
The company's products involve hydraulic pump, hydraulic motor, hydraulic pump maintenance, Hydraulic Test Stands, hydraulic tester, agricultural machinery hydraulic system supporting upgrading and other businesses. The products are applied to agricultural machinery equipment, engineering machinery, coal mine equipment, marine equipment, teaching colleges and universities and many other fields, and the products are sold all over the world.

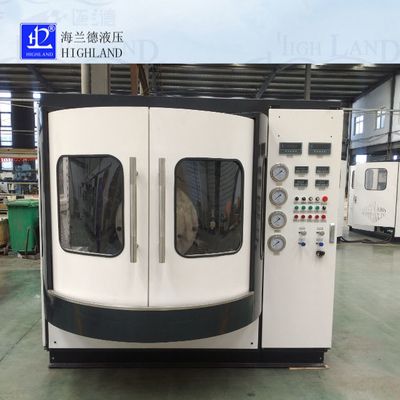

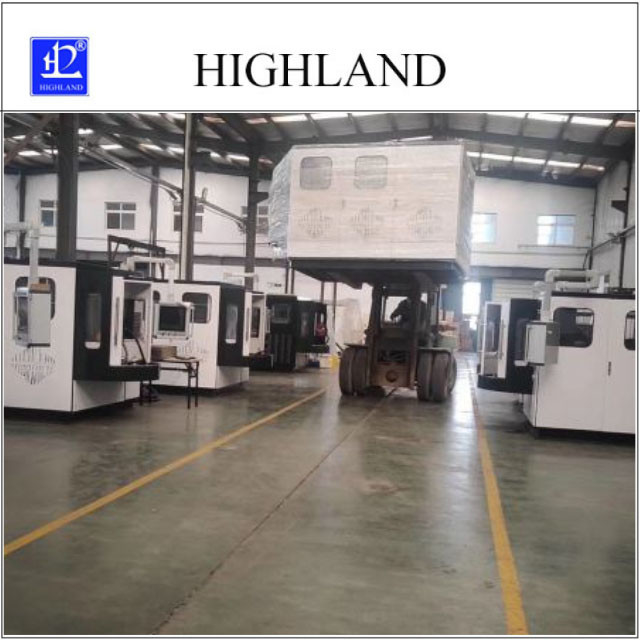

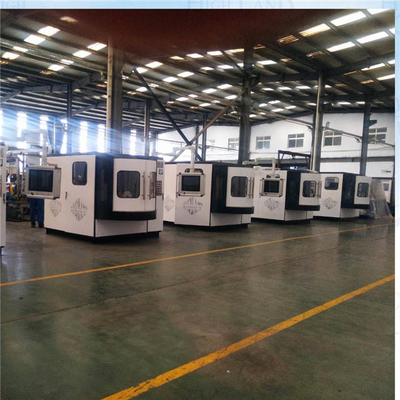

Photos Hydraulic test stands
Tag :Hydraulic Test Stands,hydraulic pump test stand,universal hydraulic test bench
