Product Details:
|
| Power: | 160kw | Work Pressure: | 30MPa |
|---|---|---|---|
| Pressure: | 35 Mpa | Category: | Hydraulic Test Table |
| Flow Rate: | 380 L/min | Is The Negative Customization: | Yes |
| Product Name: | Modular Layout Of Hydraulic Test Stand For Mining Equipment | Warranty: | 1 Year |
| Motive Force: | Electromotor | Medium: | Hydraulic Oil |
| Highlight: | Modular Layout Hydraulic Test Stands,30MPa Hydraulic Test Stands,Hydraulic Test Stand for Mining Equipment |
||

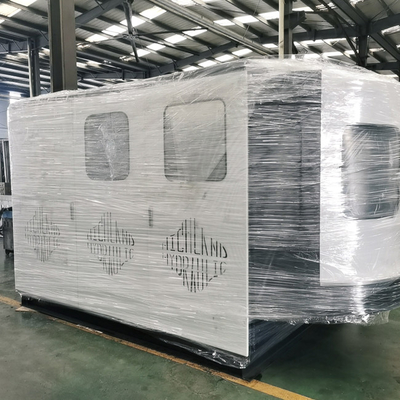

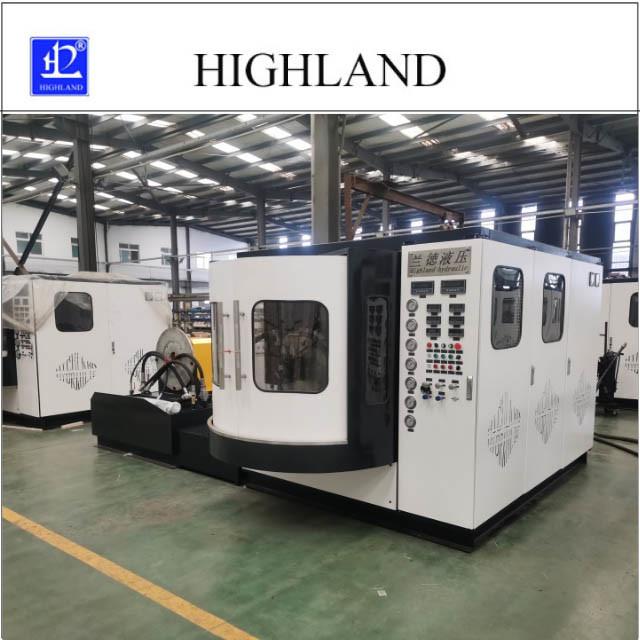

Modular layout of hydraulic test stands for mining equipment
Quick Detail hydraulic test stands
Standard Specification hydraulic test stands
YST Series Hydraulic Test Stands are used for checking and proofreading the products that hydraulic system's breakdown diagnosis.These products are researched and produced by ourselves,so we could combine conduct according to customers' needs.
Technical parameter
| Hydraulic Test Stands Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
hydraulic test stands Description
The domestic professional Hydraulic Test Stands production base provides you with hydraulic overall technical solutions, high-quality hydraulic components and complete sets of equipment. Pay attention to highland hydraulic, get instant industry information and professional technical support.
hydraulic test stands Notices
In order to ensure the best testing performance of the hydraulic test bench, whether the hydraulic pump motor test or the hydraulic valve cylinder test, the hydraulic test bench developed, designed and manufactured by Highland can provide stable, safe and complete testing data to meet the needs of end users.
Hydraulic test stands Applications
It is widely used in aircraft tractor driven by hydrostatic pressure, civil or military lifting platform vehicle, passenger elevator vehicle, luggage belt transport vehicle, airport lawn mower, deicing vehicle, snow sweeping vehicle and other special vehicles, airport passenger ferry vehicle and military ammunition hanging vehicle
Tag :Hydraulic Test Stands,hydraulic test stand for aircraft,hydraulic pump test stand
