Product Details:
|
| Power: | 90 Kw | Motor Speed: | 0 ~ 1500R/min |
|---|---|---|---|
| Pressure: | 35 Mpa | Customized Processing: | Customized As Needed |
| Flow Rate: | 380 L/min | Factory Address: | China Yucheng |
| Warranty: | 1 Year | Motive Force: | Electromotor |
| Medium: | Hydraulic Oil | Product Name: | Hydraulic Test Stand Equipment Easy To Operate |
| Highlight: | 90kw Hydraulic Test Stand Equipment,CE Hydraulic Test Stand Equipment,YST380 hydraulic motor test stand |
||
Hydraulic test stand equipment easy to operate
Standard Specification Hydraulic Test Stands
YST Series Hydraulic testing table are used for checking and proofreading the products that hydraulic system's breakdown diagnosis.These products are researched and produced by ourselves,so we could combine conduct according to customers' needs.
Technical parameter
| Hydraulic Test Stands Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Adventages Hydraulic Test Stands
HIGHALND hydraulic is a reputation manufacturer that pays attention to quality and customer experience
More than 10000 square meters of dust-free workshop
20 years of experience in hydraulic field
Won CE certification
Domestic cutting-edge technicians
Our service-Hydraulic Test Stands
Batch hydraulic pump manufacturer
Hydraulic pump model spv20-24 series products
Hydraulic pump manufacturer with imported quality and high cost performance in China

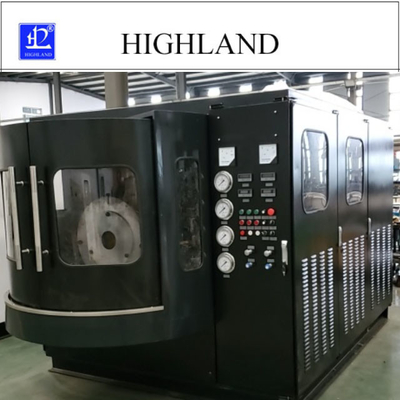

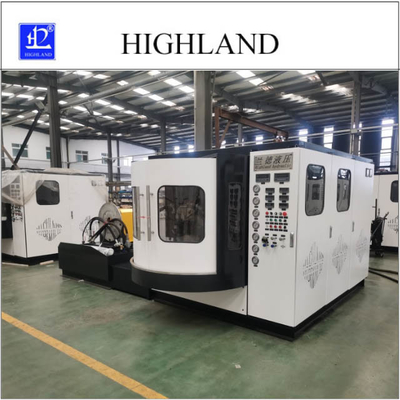

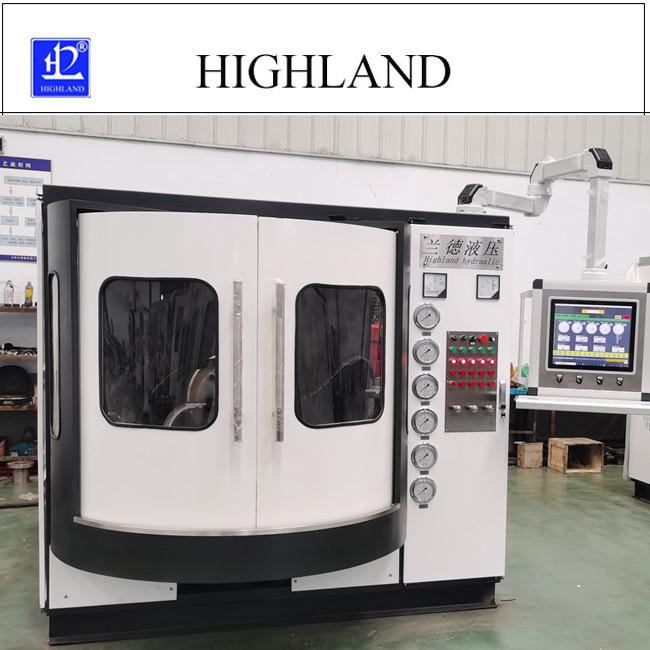

Pictures show
Certificate
Tag : Hydraulic Test Stands,hydro test bench,hydraulic pump test stand
