Product Details:
|
| Power Supply: | Electric Motor, 75KW-160KW, 350KW Or Power Recovery | Pressure Range: | 0-42Mpa |
|---|---|---|---|
| Flow Range: | 0-500lpm | Display: | Digital Display Meter Or Computer Display |
| Function: | Flow, Pressure, Temperature, Etc Testing Items | Power Source: | 220V/380V 50Hz Or Customized |
| Application: | To Test Hydraulic Pump, Motor, Valve, Cylinder | Warranty: | 1 Year |
| Product Name: | HIGHLAND 160KW Hydraulic Piston Pump Test Benches Test Machines | Model: | YST380 |
| Highlight: | HIGHLAND Hydraulic Test Benches,Hydraulic Piston Pump Test Benches,160KW Hydraulic Test Benches |
||

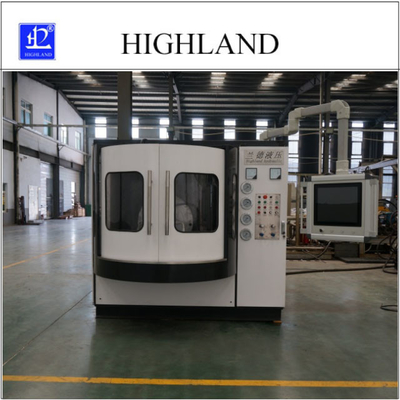

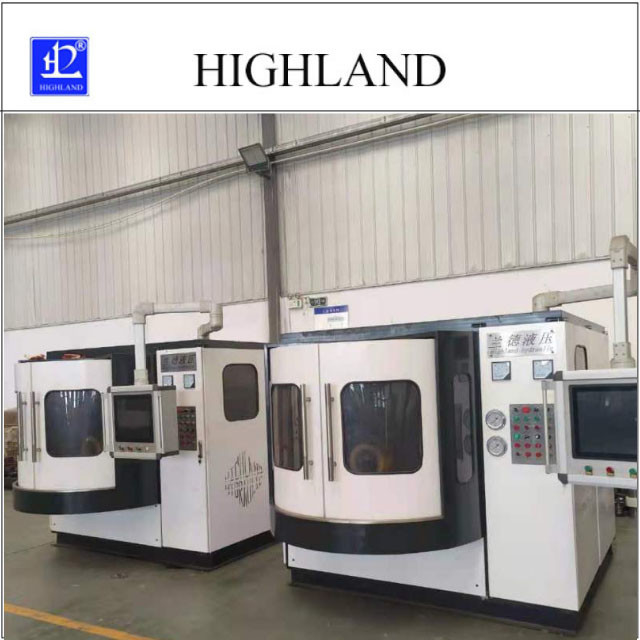

8. HIGHLAND 160KW hydraulic piston pump test benches test machines
Hydraulic piston test bench brief introduction:
Hydraulic piston pump test bench is designed and manufactured according to the national and industrial testing standards, which is suitable for the vane pump, gear pump, piston pump test of performance in single, double and multi-link of motor. This test bench is a must test equipment for enterprises of hydraulic pump production, application, maintenance or re-manufacturing.
Hydraulic test bench is divided into five varieties: hydraulic piston pump test bench, hydraulic motor test bench, hydraulic valve test bench and hydraulic cylinder test bench and comprehensive test bench. This series of test bench has designed various configuration, for example: proportional control system, digital display system, variable frequency speed regulation system and computer measurement and control system etc. The user can select it according to your need.
Hydraulic test bench test items:
1. Functional requirements : it is used for testing hydraulic pumps,high speed motors,low speed motors,hydraulic cylinders and all kinds of valves
2. Pumps and Motors Model Range: (according to part A’s request)
3. Test Item:
1). Displacement checking testing : No-load Pressure,determination of displacement.
2). Volumetric Efficiency/Total Efficiency Testing: Under the rated conditions,test volumetric efficiency and total efficiency.
3). Overload Testing: Max.displacement,Nominal Speed,125% of the rated pressure, or max. pressure operation more than 1 minute
4). External Leakage: in the above testing, Check the leakage of sealing parts.
Hydraulic test bench technical specification:
| Hydraulic Test Benches Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
FAQ of hydraulic piston pump test bench:
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
We accept T/T, Western Union etc.
Generally,our price is valid within 7 working days from the date of quotation. The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market.
Hydraulic test bench is customized product, we will produce according to your request, the production time is around 30 working days after receiving the deposit.
