Product Details:
|
| Product Model: | MYHT-1-5 Hydraulic Flow Meter | Flow Range: | 0-500lpmin Flow |
|---|---|---|---|
| Pressure Range: | 0-420Bar Pressure | Temperature: | 0-150C |
| Precission: | ±1% | Weight: | 8.8kg |
| Usage: | Hydraulic Pumps And Motors | Color: | Silver Color |
| Product Name: | Hydraulic Pump And Motors Pressure Tester Flow Meter Tester | ||
| Highlight: | 500l/min hydraulic flow meters,excavator hydraulic flow meters,excavator hydraulic flow tester |
||

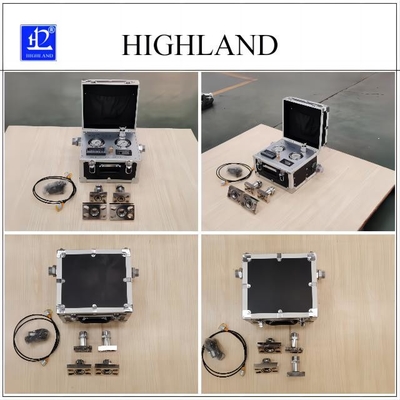

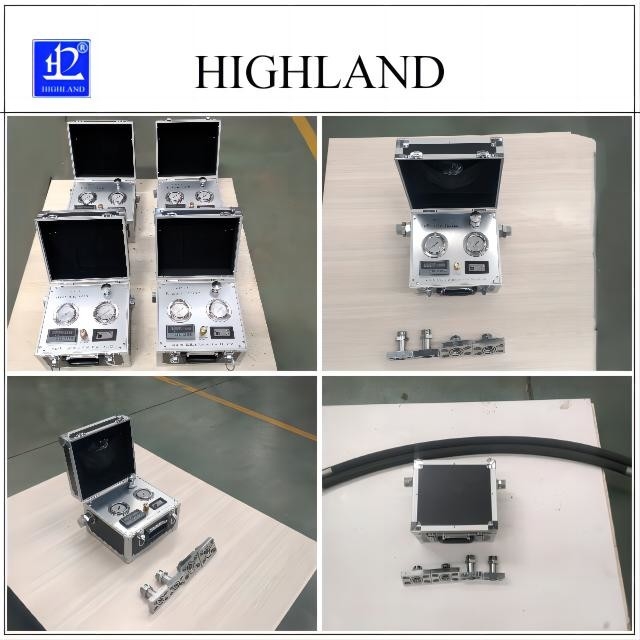

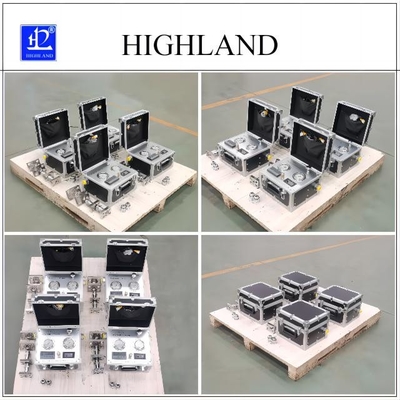

Highland brand hydraulic flow meters with two pressure gauges
Hydraulic flow meter with two pressure gauges information:
MYHT-1-5 model Hydraulic flow meter with two pressure gauges which is researched and produced by Jinan High Land Hydraulic Pump CO., Ltd. is a kind of practical and new type product with patent certificate. In the hydraulic loop system, the acquisition of breakpoints data and the measurement of flow rate, pressure and temperature of the system and components are able to be realized simultaneously. Through the data acquired MYHT-1-5 hydraulic flow meter evaluates the performance of hydraulic system and components and judges the faults. It is widely used in testing and diagnosing for Hydraulic Pump, Hydraulic Motor and Hydraulic valve etc other hydraulic system.
500l/min hydraulic flow meter main features:
- Hydraulic flow meter can measure flow, pressure, peak pressure and temperature accurately.
- Security hydraulic oil can flow in both directions, uniaxial loading, both to protect personnel protection instruments.
- Quick hydraulic equipment, hydraulic pumps, hydraulic motors, hydraulic valves, hydraulic cylinders online test. Simple
connection.
- Light Meters Light weight, small size and easy to carry. Beautifully designed, easy to clean.
- Power Meter optional 12V lithium battery can be recharged, large capacity, long life.
MYHT-1-5 hydraulic flow meter technical specifications:
| Model | Flow(L/min) | Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 280*245*172 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 280*245*172 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 280*245*172 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
Hydraulic flow meter for excavator usage:
In the design, MYHT Series hydraulic flow meter is a device that can be used for heavy duty machineries with hydraulic system, such as excavator, mixer truck, harvester. If hydraulic system trouble arises after the quality guarantee period, it is available to do some simple inspection.
