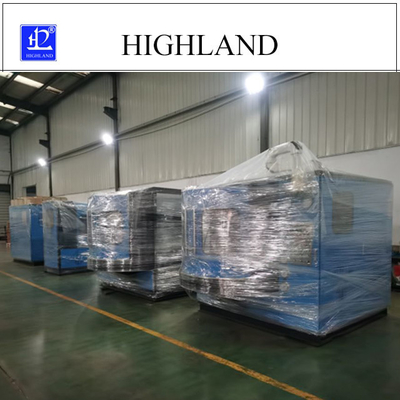

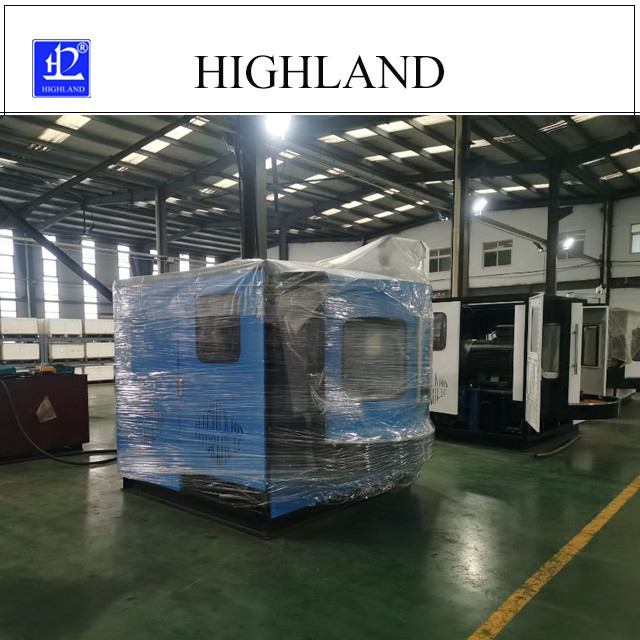

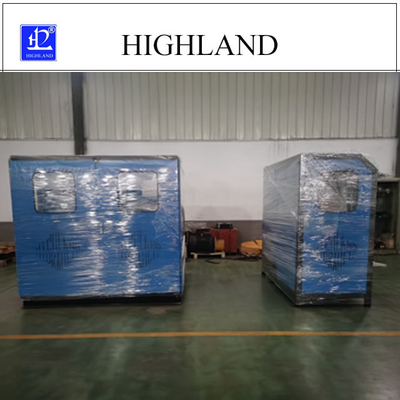

Comprehensive Tandem Hydraulic Pump Test Bench 500l/Min

Tandem hydraulic pump test bench 500l/min hydraulic test stand

Hydraulic comprehensive test bench:

Hydraulic components test bench applicable to all kinds of general hydraulic components of the performance test, can satisfy different user's testing requirements.
Hydraulic components test bench is divided into five varieties: hydraulic valve test rig, hydraulic pump test bench and hydraulic motor function test rig, hydraulic cylinder test rig and comprehensive test bench. This series of test bench has designed various configuration, for example: proportional control system, digital display system, variable frequency speed regulation system and computer measurement and control system etc. The user can select it according to your need.

Application:

1 .Functional requirements : it is used for testing hydraulic pumps,high speed motors,low speed

motors,hydraulic cylinders and all kinds of valves

2 .Pumps and Motors Model Range: (according to part A’s request)

3 .Test Item:

1). Displacement checking testing : No-load Pressure,determination of displacement.

2). Volumetric Efficiency/Total Efficiency Testing: Under the rated conditions,test volumetric efficiency and total efficiency.

3). Overload Testing: Max.displacement,Nominal Speed,125% of the rated pressure, or max. pressure operation more than 1 minute

4). External Leakage: in the above testing, Check the leakage of sealing parts.

Technical Details:

Hydraulic axial piston pump test bench/test stand/test equipment are used for checking and proofreading the products that include hydraulic pump, motor and valve. It also can conduct hydraulic system's breakdown diagnosis.

Hydraulic axial piston pump test bench/test stand/test equipment are used to test temperature, flow and pressure.

Hydraulic axial piston pump test bench/test stand/test equipment are used for checking and proofreading the products that include hydraulic pump, motor and valve. It also can conduct hydraulic system's breakdown diagnosis.

Hydraulic axial piston pump test bench/test stand/test equipment are used to test temperature, flow and pressure.

Test Bench Parameters:

1 National standards: GB/T8104,GB/T8105,GB/T8106,GB/T7936,GB/T 15622

2 Industry standards: JB/T8728,JB/T7039,JB/T7042,JB/T7044

3 Total power: 75KW,90KW,110KW,132KW,160KW

4 Range of test pressure: 0~42MPa

5 Range of flow rate: 0~500L/min

6 Range of rotational speed: 0~3000r/min

7 Composition system: Dynamic system, hydraulic control system, hydraulic oil filter temperature control system and electric control system, data acquisition test system.
