Product Details:
|
| Product Name: | 42 Mpa Hydraulic Test Stand Hydraulic Pump Test Stand Hydraulic Testing Gauges | Pressure: | 0-42mpa |
|---|---|---|---|
| Loading Mode: | Local Loading Mode And Computer Control | Flow Rate: | 0-380 L/min |
| Range Of Rotational Speed: | 0~2250r/min | Drive Mode: | Ordinary Electric Motor |
| Warranty: | 1 Year | Motive Force: | Electromotor |
| Medium: | Hydraulic Oil | Total Power: | 0-160kw |
| Highlight: | 42 mpa hydraulic pump test stand,computer control hydraulic pump test stand,42 mpa hydraulic testing gauges |
||
42 mpa Hydraulic test stand hydraulic pump test stand hydraulic testing gauges

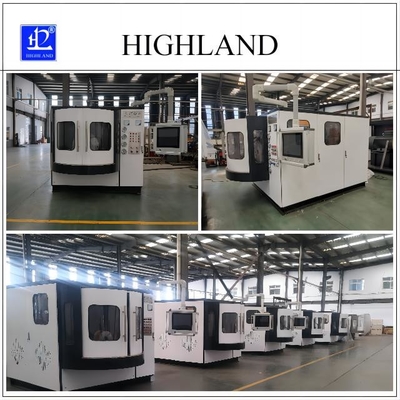

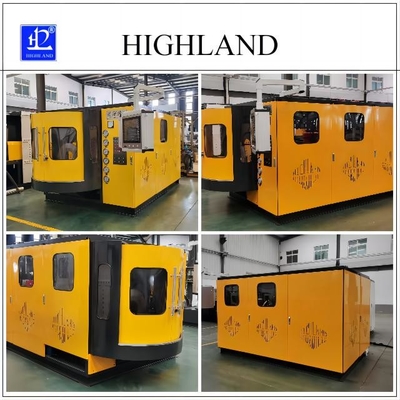

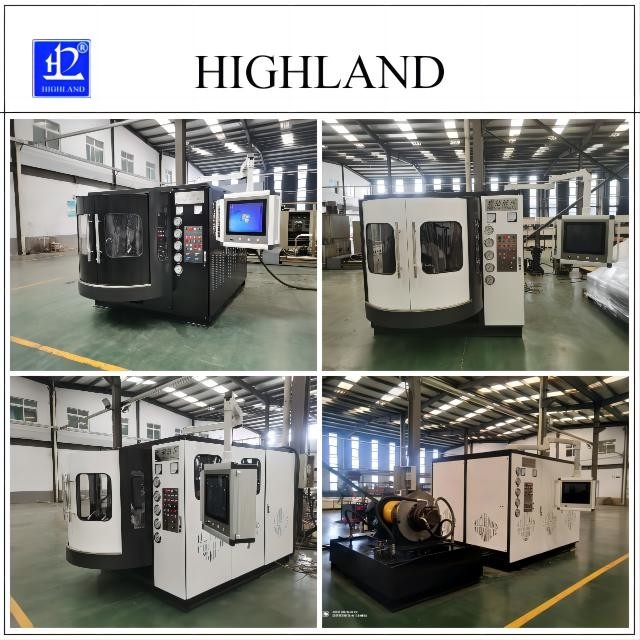

Hydraulic test bench details:
YST Series hydraulic test stand is used for checking and proofreading the products that include hydraulic pump, motor and valve, it also can give hydraulic system’s breakdown diagnosis. YST series hydraulic test bench are design and manufactured by us, we can produce according customer's requirments.
Basic Information:
Motive Power: Ordinary electromotor; Frequency conversion electromotor; Hydraulic electromotor; diesel engine drive; diesel engine hydraulic drive
Pressure: 35Mpa; 42Mpa
Power: 7 5KW; 90 KW; 110 KW; 160 KW
Load Location: Local; Long distance
Provide oil: oblige; absorb
Show location: Locale; Computer
Working medium: hydraulic oil
Oil tank cubage: 2000L; 3400L
Oil filtrate: 2 degree filter; 4degree filter; filtrate equipment
Cooling way: wind cooler; water cooler
Accessories: Connect shaft (2 Pc); outline drawing of shaft (1 pc)
Increasing function: close pump test; torsional moment power test
Technical parameter
Technical Data:
| flow rate | power | pressure | motive force |
| 500L/min | 150KW | 35Mpa | combined electric motor hydraulic drive, stepless speed redulation |
| flow rate | power | pressure | motive force |
| 380L/min | 75-160KW | 35Mpa | combined electric motor hydraulic drive, stepless speed regulation |
| flow rate | power | pressure | motive force |
| 380L/min | 120KW | 35Mpa | combined diesel engine hydraulic drive |
| flow rate | power | pressure | motive force |
| 300L/min | 75KW | 35Mpa | Motor |
Tags:Hydraulic test bench,hydraulic pump test stand hydraulic testing gauges
