Product Details:
|
| Product Model: | MYHT-1-5 Hydraulic Flow Test Kit | Flow Range: | 0-500l/min |
|---|---|---|---|
| Pressure Range: | 0-42Mpa | Temperature: | 0-150C |
| Weight: | 8.8kg | Usage: | Hydraulic System |
| Color: | Silver Color | Product Name: | Hydraulic Flow Test Gauge Kit Used For Excavators Measurement Of Flow |
| Highlight: | rechargeable power hydraulic flow meters,500l/min hydraulic flow meters,42 mpa hydraulic flow tester |
||

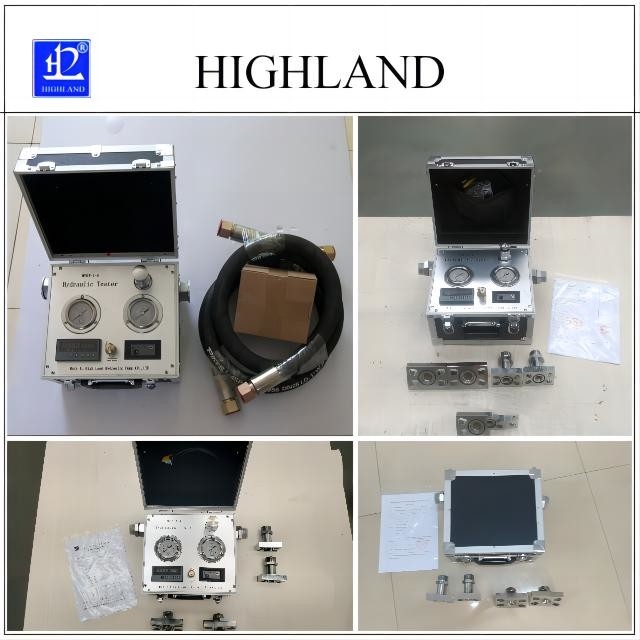

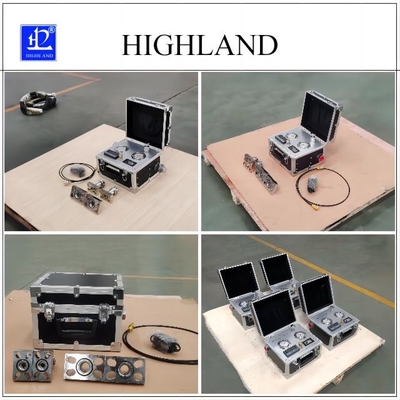

Hydraulic Flow Test Gauge Kit Used For Excavators Measurement Of Flow
Hydraulic flow test gauge kit basic information:
The MYHT series hydraulic flow test gauge kit is the ideal tool for pinpointing hydraulic system faults, reducing working time, and helping in preventative maintenance.
Hydraulic flow test gauge kit to measure flow, is widely used in testing and diagnosing for hydraulic pump, hydraulic motor and hydraulic valve of excavator machinery.
Hydraulic flow test gauge kit features:
1. ACCURATE measurement of flow, pressure, peak pressure and temperature.
2. SAFE to use in both directions of flow. Internal oil by-pass protects multi meter and operate against over pressure.
3. Bi-DIRECTIONAL for unrestricted connection and simplified testing.
4. FAST checks on pumps, motors, valves, cylinders, hydrostatic transmissions.
5. EASY to operate controls. Connect Into the hydraulic system and simply“Switch on”.

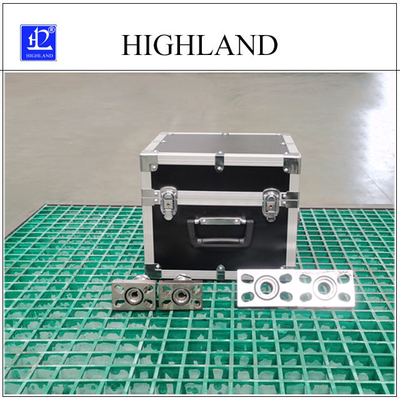

6. PORTABLE AND LIGHTWEIGHT with the case for easier viewing and cleaning.
7. RECHARGEABLE POWER: lithium battery 12v.
Excavator hydraulic flow test gauge kit technical specifications:
| Model | Flow(L/min) | Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 280*245*172 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 280*245*172 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 280*245*172 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
Hydraulic flow test gauge kit main usage to measure of flow:
In the hydraulic loop system, the acquisition of breakpoints data and the measurement of flow rate, pressure and temperature of the system and components are able to be realized simultaneously. Through the data acquired MYHT Tester evaluates the performance of the system and components and judges the faults.
Note of Hydraulic flow test gauge kit:
1. Before starting the equipment, loading must be unscrewed (left screwing to the end). Otherwise, danger easy arises.
2. Near the loading valve is high-pressure oil inlet, the other is outlet. Loading will not be realized if the inlet and outlet are connected at wrong position.
3. Please shut off the power when the instrument not in use.
