Product Details:
|
| Product Model: | MYHT-1-5 Portable Hydraulic Flow Meters With Peak Pressure 420 Bar | Flow Range: | 0-500l/min |
|---|---|---|---|
| Pressure Range: | 0-42Mpa | Temperature: | 0-150C |
| Weight: | 8.8kg | Usage: | Hydraulic System |
| Color: | Silver Color | Product Name: | Hydraulic Flow Test Gauge Kit Used For Excavators Measurement Of Flow |
| Highlight: | Portable Hydraulic Flow Meters 500L/min,420 Bar Hydraulic Flow Meters,Portable Hydraulic Pump Motor Tester |
||

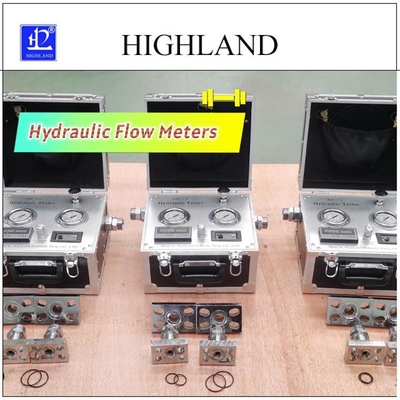

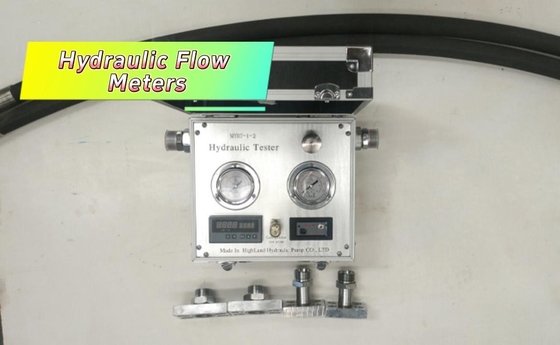

MYHT-1-5 Portable Hydraulic Flow Meters With Peak Pressure 420 Bar For Testing Hydraulic Pump Motor
Portable Hydraulic Flow Meters basic information:
The MYHT series portable hydraulic flow meters are a powerful diagnostic tool that can help you identify and resolve hydraulic system problems quickly and efficiently. Our hydraulic flow meters can measure the flow rate, pressure, and temperature of hydraulic fluid in various components of excavator machinery, such as pumps, motors, and valves under different operating conditions and loads. It can help you reduce downtime, improve productivity, and extend the service life of your hydraulic equipment.
MYHT-1-5 Portable Hydraulic Flow Meters features:
1. ACCURATE measurement of flow, pressure, peak pressure and temperature.
2. SAFE to use in both directions of flow. Internal oil by-pass protects multi meter and operate against over pressure.
3. Bi-DIRECTIONAL for unrestricted connection and simplified testing.
4. FAST checks on pumps, motors, valves, cylinders, hydrostatic transmissions.
5. EASY to operate controls. Connect Into the hydraulic system and simply“Switch on”.

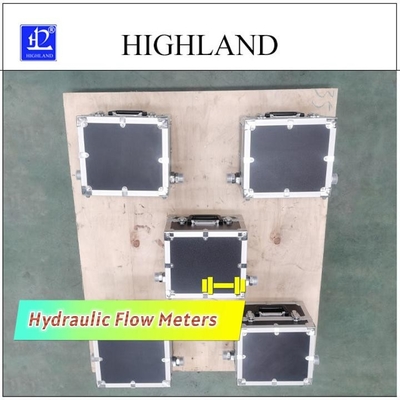

6. PORTABLE AND LIGHTWEIGHT with the case for easier viewing and cleaning.
7. RECHARGEABLE POWER: lithium battery 12v.
420 Bar Hydraulic Flow Meters technical specifications:
| Model | Flow(L/min) | Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 280*245*172 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 280*245*172 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 280*245*172 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
MYHT-1-5 Portable Hydraulic Flow Meters main usage to measure of flow:
In the hydraulic loop system, the acquisition of breakpoints data and the measurement of flow rate, pressure and temperature of the system and components are able to be realized simultaneously. Through the data acquired MYHT Tester evaluates the performance of the system and components and judges the faults.
Note of Hydraulic flow meters:
1. Before starting the equipment, loading must be unscrewed (left screwing to the end). Otherwise, danger easy arises.
2. Near the loading valve is high-pressure oil inlet, the other is outlet. Loading will not be realized if the inlet and outlet are connected at wrong position.
3. Please shut off the power when the instrument not in use.
