Product Details:
|
| Characteristic: | Beautiful Appearance Design | Function: | Testing Hydraulic Pumps And Motors |
|---|---|---|---|
| Specification Parameters: | YST380 Hydraulic Test Bench | Pressure: | 35Mpa |
| Power: | 90 Kw | Brand: | HIGHLAND |
| Name: | Hydraulic Test Bench | Usage: | Rotary Drilling Rig |
| Highlight: | Hydraulic High Pressure Test Bench,380L/Min Hydraulic Test Benches |
||

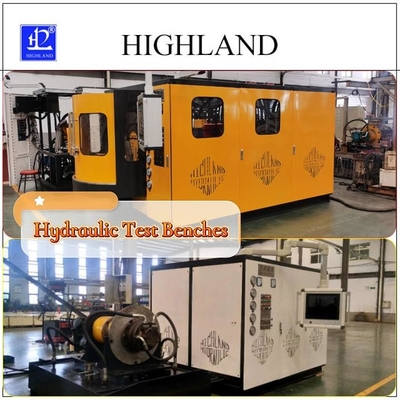

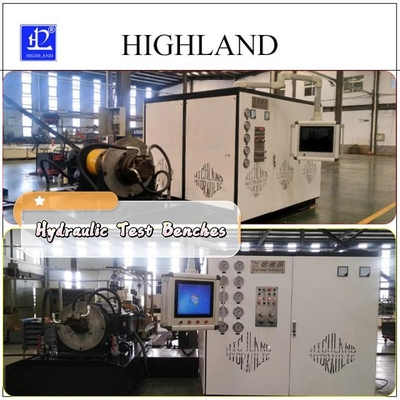

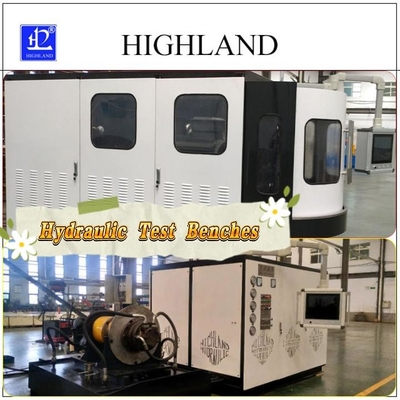

HIGHLAND's YST380 Hydraulic Test Bench is specifically designed for hydraulic testing of rotary drilling rigs. It is a hydraulic test machine that is capable of testing the pressure, flow rate, and other parameters of rotary drilling rigs. This test bench is equipped with 380L/min high-flow pump, which is capable of providing a complete set of detection data for the rotary drilling rigs. It is also equipped with an intelligent control system that can accurately control the parameters of the system, so as to ensure the safety and accuracy of the test. In addition, the YST380 Hydraulic Test Bench is equipped with a multi-function display, which can easily monitor the operating conditions of the system. Therefore, it can provide accurate and reliable hydraulic test data for rotary drilling rigs.
| Pressure(mpa) | 35mpa/42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic motor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Hydraulic Test Benches from HIGHLAND are designed to test hydraulic pumps and motors. This YST380 Hydraulic Test Bench has a pressure of 35Mpa and power of 90 Kw. This test bench has passed CE certification and can be customized according to customer demands. The minimum order quantity is 1 set and the price range is USD28000-120000/set. Packaging details include plastic film for product protection and delivery time is 30-60 working days. Payment terms are T/T, Western Union. HIGHLAND has a supply ability of 5 sets per month. As a professional Hydraulic Test Bench manufacturer, HIGHLAND also offers hydraulic test platform and rotary drilling rig hydraulic test bench.
YST380 Intelligent Control Hydraulic Test Bench
Brand Name: HIGHLAND
Model Number: YST380
Place of Origin: China Dezhou
Certification: CE
Minimum Order Quantity: 1set
Price: USD28000-120000/set
Packaging Details: Plastic film packaging
Delivery Time: 30-60 working days
Payment Terms: T/T, Western Union
Supply Ability: 5 sets per month
Flow rate: 380L/min
Characteristic: Beautiful Appearance Design
Advantage: Complete Detection Data
Name: Hydraulic Test Bench
Function: Testing Hydraulic Pumps And Motors
Application: Rotary Drilling Rig Hydraulic Test Bench
Manufacturer: Hydraulic Test Bench Manufacturer
