Product Details:
|
| Advantage: | Complete Detection Data | Name: | Hydraulic Test Bench |
|---|---|---|---|
| Specification Parameters: | YST450 Hydraulic Test Bench | Pressure: | 35Mpa |
| Function: | Testing Hydraulic Pumps And Motors | Brand: | HIGHLAND |
| Usage: | Rotary Drilling Rig | Power: | 160 Kw |
| Highlight: | Industrial Hydraulic Test Benches 35Mpa,YST450 Hydraulic Motor Test Bench |
||

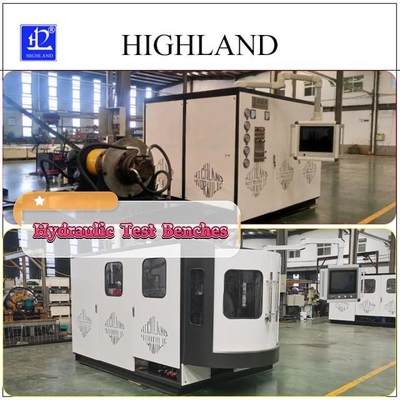

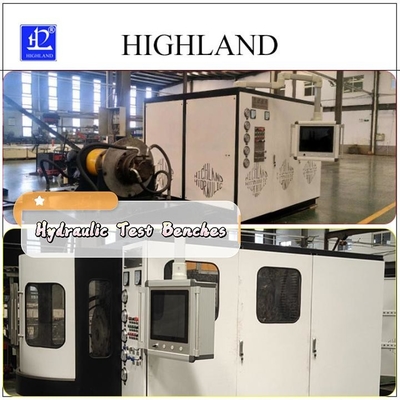

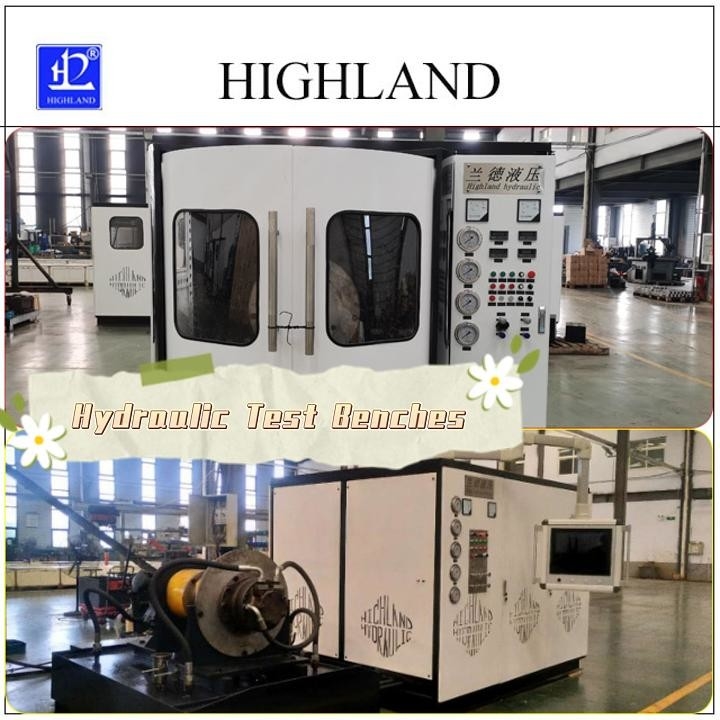

HIGHLAND YST450 Hydraulic Test Bench is a reliable and advanced hydraulic test machine that is specially designed for testing hydraulic pumps and motors. It has a power capacity of 160 kw and a maximum pressure of 35Mpa. With its high-precision flow rate of 380L/min, it can precisely simulate the operating conditions of hydraulic pumps and motors, and accurately measure the performance parameters of the hydraulic system. HIGHLAND YST450 is an ideal choice for hydraulic test bench manufacturer. It is highly accurate, safe and reliable, and can meet different test requirements.
| Pressure(mpa) | 35mpa/42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Hydraulic Test Benches are an essential tool for many industrial and manufacturing operations. The YST450 model from HIGHLAND is a high-performance hydraulic test bench, designed to provide accurate and reliable testing of hydraulic pumps and motors. The YST450 comes with a complete detection data system and a 160 kw power, with a maximum pressure of 35Mpa. The bench has a CE certification, and comes with a minimum order quantity of 1 set. The price for the YST450 ranges from USD 28000-120000 per set, depending on the customizations that you require. With a fast delivery time and a plastic film packaging, you can rest assured that your HIGHLAND Test Bench will arrive in perfect condition. The company also has a Supply Ability of 5 sets per month, ensuring that you will have a steady stock of YST450 Hydraulic Test Benches. As a Customized Manufacturer of YST450 Hydraulic Test Benches, HIGHLAND is the perfect choice for an accurate, reliable, and cost-effective testing solution.
Customization of Hydraulic Test Benches
Our company provides custom-made hydraulic test benches with brand name HIGHLAND and model number YST450. It has a beautiful appearance design and complete detection data. It is used to test hydraulic pumps and motors. It comes with CE certification and has a minimum order quantity of 1 set. The price ranges from USD28000-120000/set, and the packaging details are plastic film packaging. Delivery time is 30-60 working days and payment terms are T/T and Western Union. Our company can provide 5 sets per month.
The YST450 Intelligent Control Hydraulic Test Bench is an advanced and reliable product that is designed to provide accurate and comprehensive test results. It has a wide range of applications in the hydraulic industry and is able to test a variety of hydraulic pumps and motors. It is equipped with a complete set of detection data and is able to provide accurate and reliable results. It is an excellent choice for those who need to test hydraulic pumps and motors.
Packaging and Shipping
Hydraulic Test Benches must be shipped using a reliable and secure shipping method. The package must include appropriate cushioning and packaging materials in order to prevent damage during transit. The package must also include a detailed packing list of the components included in the shipment. The customer must also be provided with a tracking number so they may monitor the progress of the shipment.
